Place of Origin | Germany |
Brand Name | ROSCHEN |
Certification | ISO |
Model Number | COP64 |
Secoroc COP 64 Gold Down The Hole Hammer Atlas Copco Secoroc DTH Hammers For Water Well Drilling
Secoroc DTH Hammers
Roschen DTH Hammer can compete Atlas Copco Secoroc DTH Hammer basis on the quality.
Roschen offers the market's most comprehensive range of DTH hammers. There are hammer solutions for water well drillers, miners and quarry drillers as well as for contractors in construction, oil and gas. We even offer environmentally friendly water-lubricated hammers and the reverse circulating RC hammers aimed at Green Field exploration.
Secoroc DTH hammers are available in holes sizes from 3,5 to 48 inches in diameter and up to 72 inches with the Secoroc Cluster drills.
Secoroc COP 64 Gold Down-the-hole hammer
Down The Hole (DTH) hammers provide the most versatile and cost effective rock drilling method available to date. The Down-The-Hole hammer is designed to increase efficiency in drilling as well as conventional drilling. The presented series can be used for multiple purposes such as the geotechnical, mining, quarrying, geothermal, mineral, underground, and other exploration drilling. Pay attention that the Down the Hole (DTH) hammer is designed for drilling multi-size holes whatever the rock type’s demand. It should be noted when a piston, DTH hammer’s element, gets in touch with the drill bit, it produces no loss of energy transmitted while the hammer going deeper. Our store is recognized as one of the reliable suppliers and exporters of DTH Hammers. We offer a wide range of DTH hammers, made from quality material, which are suitable for diversified drilling operations. Different sizes and designs are available at our stock.
Features & benefits:
1. Improves your productivity and capability
2. Comprehensive range of DTH hammers and drill bits to match all conceivable applications
3. Cutting edge technology that has been tested and proven through years of field use

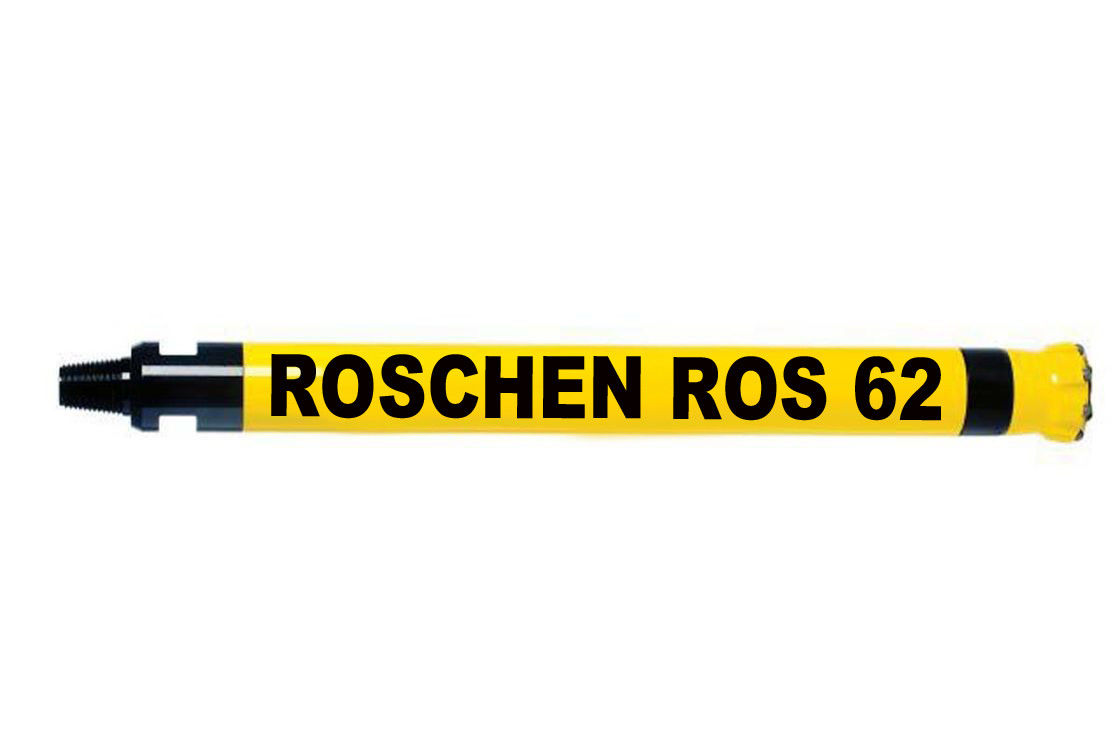

ROSCHEN DTH Hammers Specifications | |||||||
Hammer Size | Bit Shank | ROSCHEN Code | Connection Thread | Suitable bit | Working pressure | Air consumption | |
2" | BR2 | ROS 11 ROS 22 | RD50 box | ¢70-¢90mm | 0.7-1.75Mpa | 0.7Mpa | 4.5m3/min |
1.0Mpa | 4m3/min | ||||||
1.4Mpa | 5m3/min | ||||||
3" | DHD3.5 | ROS 32 | API 2 3/8" Reg | ¢90-¢110mm | 1.0-1.5Mpa | 1.0Mpa | 4.5m3/min |
COP32/COP34 | |||||||
M30 | 1.5Mpa | 9m3/min | |||||
4" | DHD340 | ROS 34 | API 2 3/8" Reg | ¢110-¢135mm | 1.0-2.5Mpa | 1.0Mpa | 6m3/min |
COP44 | |||||||
QL40 | |||||||
SD4 | 1.8Mpa | 10m3/min | |||||
M40 | 2.4Mpa | 15m3/min | |||||
5" | DHD350 | ROS 52 ROS 54 | API 2 3/8"Reg/API 3 1/2" Reg | ¢135-¢155mm | 1.0-2.5Mpa | 1.0Mpa | 9m3/min |
COP54 | |||||||
QL50 | |||||||
SD5 | 1.8Mpa | 15m3/min | |||||
M50 | 2.4Mpa | 23m3/min | |||||
6" | DHD360 | ROS 62 ROS 64 | API 3 1/2" Reg | ¢155-¢190mm | 1.0-2.5Mpa | 1.0Mpa | 10m3/min |
COP64 | |||||||
QL60 | |||||||
SD6 | 1.8Mpa | 20m3/min | |||||
M60 | 2.4Mpa | 28.5m3/min | |||||
8" | DHD380 | ROS 82 ROS 84 | API 4 1/2" Reg | ¢195-¢254mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min |
COP84 | |||||||
QL80 | 1.8Mpa | 26m3/min | |||||
SD8 | 2.4Mpa | 34m3/min | |||||
M80/M85 | |||||||
10" | SD10 | ROS 100 | API 6 5/8" Reg | ¢254-¢311mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min |
Numa100 | 1.8Mpa | 40m3/min | |||||
ROS 100 | 2.4Mpa | 55m3/min | |||||
12" | DHD1120 | ROS 120 | API 6 5/8" Reg | ¢305-¢445mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
SD12 | 1.8Mpa | 56m3/min | |||||
Numa120 | 2.4Mpa | 78m3/min | |||||
Notes: Any special size of DTH bits will be available by requests. | |||||||
Metzke, Remet thread is available! |
