Exploration Diamond Core Drilling Bits BQ NQ HQ PQ NQ3 HQ3 PQ3

Place of Origin Germany
Brand Name ROSCHEN
Certification ISO
Model Number BQ NQ HQ PQ NQ3 HQ3 PQ3
Product Details
Item No:
Core Drill Bit Sizes
Drill Rigs:
Diamond Core Drill Rigs
Diamond Core Drill Bits
Diamond Core Drilling Companies
Core Drilling:
Diamond Core Drilling Md
Diamond Core Drill Bit Sizes
Diamond Core Drilling Systems
Exploration Core Drilling
Australia Exploration
Wireline Diamond Core Bits
Impregnated Diamond Core Bits
Wireline Core Drilling
Australia Mining
Model No:
Mining Exploration Core Drilling
Africa Mining
Copper Mining Drilling
High Light:

Diamond Core Drilling Bits


Diamond Core Drill Bits For Rock

Payment & Shipping Terms
Minimum Order Quantity
1-5 pcs
Packaging Details
Carton box
Supply Ability
100000 pcs
Product Description

Exploration diamond drilling


Exploration diamond drilling is used in the mining industry to probe the contents of known ore deposits and potential sites. By withdrawing a small diameter core of rock from the orebody, geologists can analyse the core by chemical assay and conduct petrologic, structural and mineralogical studies of the rock.

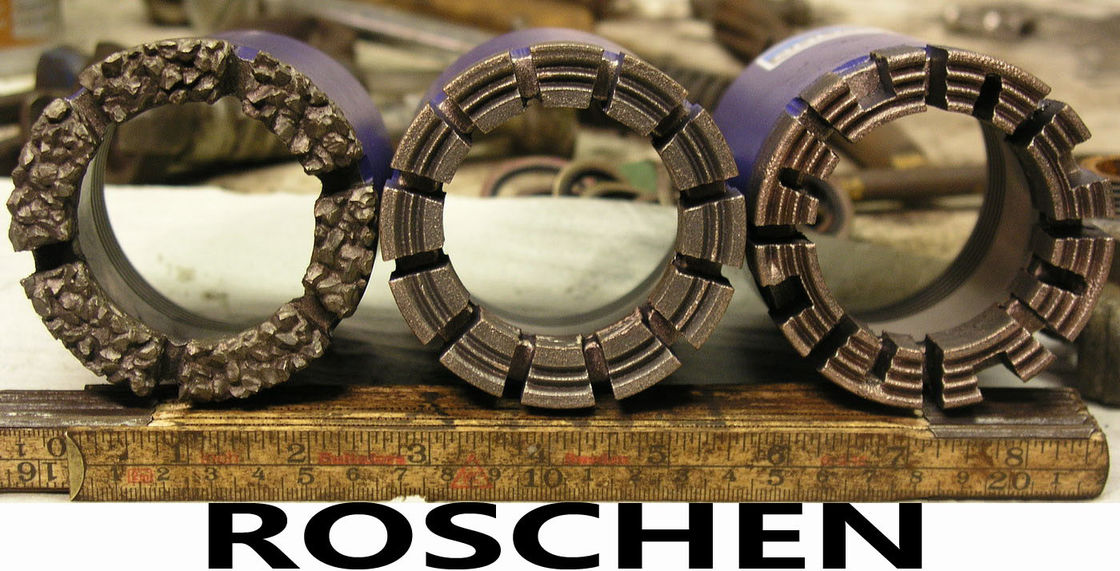

Diamond core drill bits

Rodolphe Leschot is often cited as being the inventor of the first core bit.[1] Early diamond drilling opened up many new areas for mineral mining, and was related to a boom in mineral exploration in remote locations. Before the invention of the portable diamond drill, most mineral prospecting was limited to finding outcrops at the surface and hand digging. In the late 1970s, General Electric pioneered the technology of polycrystalline diamond compacts (PDCs) as a replacement for natural diamonds in drill bits.

Drilling rig capable of both diamond and reverse circulation drilling.

Diamond drilling

Exploration diamond drilling differs from other geological drilling in that a solid core is extracted from depth, for examination on the surface. The key technology of the diamond drill is the actual diamond bit itself. It is composed of industrial diamonds set into a soft metallic matrix. As shown in the figure, the diamonds are scattered throughout the matrix, and the action relies on the matrix to slowly wear during the drilling, so as to expose more diamonds. The bit is mounted onto a drill stem, which is connected to a rotary drill. Water is injected into the drill pipe, so as to wash out the rock cuttings produced by the bit and also to reduce the heat produced due to friction which causes less wear and tear of the bits. An actual diamond bit is a complex affair, usually designed for a specific rock type, with many channels for washing.

The drill uses a diamond encrusted drill bit (pictured on the right) to drill through the rock. The drill produces a "core" which is photographed and split longitudinally. Half of the split core is assayed while the other half is permanently stored for future use and re-assaying if necessary. Although a larger diameter core is the most preferred it is the most expensive. The most common diameter sizes of core are NQ and CHD 76.

Early exploration companies tended to choose drilling contractors who typically charge per meter rates and/or day rate depending on difficulty of project. For example, Energold Drilling would provide diamond drilling services for projects with limited infrastructure and focus on portability, whereas larger drilling groups such as Boart Longyear tended to work on established producing mine sites.

Core extraction

Extraction of core using triple-tube

Merely advancing the drill by rotary action (and washing) causes a core to be extracted inside the barrel as shown. However, at a depth of perhaps 300 m, there must be a way to retrieve the core and take it to the surface. Constantly withdrawing the entire heavy drill pipe is impractical, so methods were developed to pull up the core inside the barrel. If the rock would always be solid granite, and the core would always break at the drill bit, then it would be a simple matter to stop the drilling, and lower a simple grabbing device by a wire and pull up the core.

Unfortunately, many applications require an undisturbed core in fractured rock, which calls for elaborate wire-line devices.


The photo shows the extraction of a core, using a triple-tube wire-line system, capable of extracting core under the worst conditions.

This is very important when exploring fault zones such as the San Andreas Fault.

Tube sizes


Size Hole (outside) Core (inside)
diameter, mm diameter, mm
AQ 48 27
BQ 60 36.5
NQ 75.7 47.6
HQ 96 63.5
PQ 122.6 85
CHD 76 75.7 43.5
CHD 101 101.3 63.5
CHD 134 134 85

There are five major "wire line" tube sizes typically used. Larger tubes produced larger diameter rock cores and require more drill power to drive them. The choice of tube size is a trade-off between the rock core diameter desired and the depth that can be drilled with a particular drilling rig motor.




Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.

Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.

Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.

Q: How about discount?
A: Price is based on products and order quantity.

Q: Do you accept sample order?
A: Yes sure, please contact us for details.

Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.

Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.
