Down The Hole Drilling
>
|
| Place of Origin | China |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | 90 ~ 280mm |

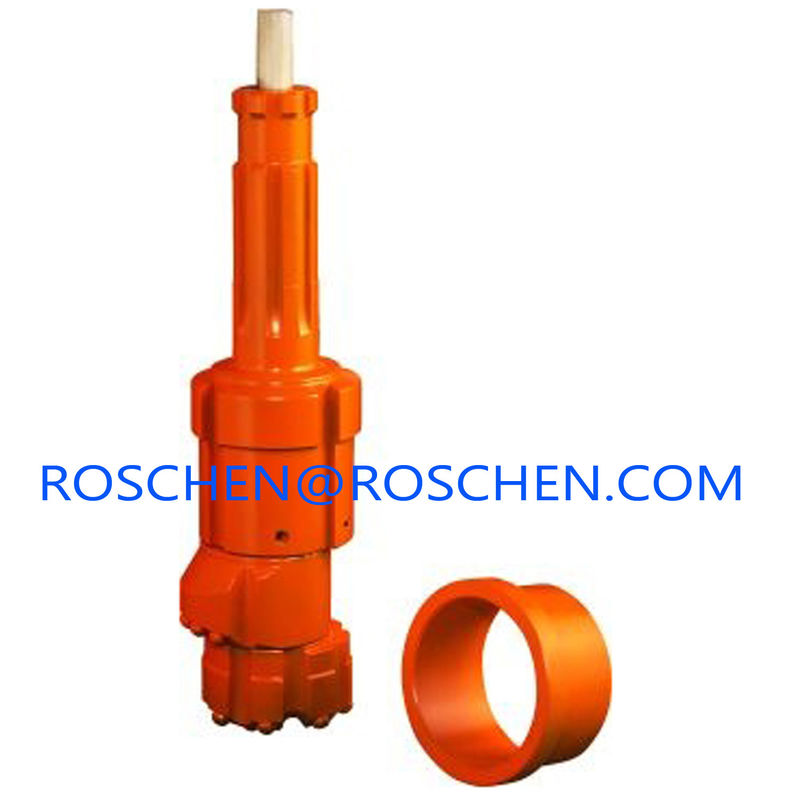

TUBEX XL overburden tools for Rock Tools and Systems in Down The Hole Drilling
TUBEX XL overburden tools for Rock Tools and Systems in DTH Drilling tools
| TUBEXXL type | Casing, recom. size | Min. wall | Max. drill bit | Reaming |
| mm | thickness | diameter | diameter | |
| Max. OD / Min. ID | mm | mm | mm | |
| 90 | 115/102 | 5 | 90 | 123 |
| 115 | 142/128 | 5 | 115 | 152 |
| 140 | 171/157 | 5 | 140 | 187 |
| 165 | 196/183 | 5,5 | 165 | 212 |
| 180 | 219/194 | 6,3 | 180 | 232 |
| 190 | 222/205 | 6,3 | 190 | 237 |
| 215 | 257/241 | 6,3 | 215 | 278 |
| 230 | 270/250 | 6,3 | 230 | 286 |
| 240 | 273/260 | 6,3 | 240 | 306 |
| 280 | 327/305 | 7,1 | 280 | 370 |
Terms & Conditions of Ordering:
1. Payment Terms: T/T (Telegraphic Transfer) or Western Union
2. Delivery Term:
Based on order quantity, normally it takes 25 days for production.
Only 2 or 3 days if we have stock on your request size.
3. Transportation:
Sample order: We suggest Courier express or by air
Bulk order: We suggest by air or by sea.
4. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B. Our sales team and Technical Support will response for your question within 24 hour.
C. Free replacement will provide once the failure confirmed caused or our product quality;
Not satisfied with a refund.
