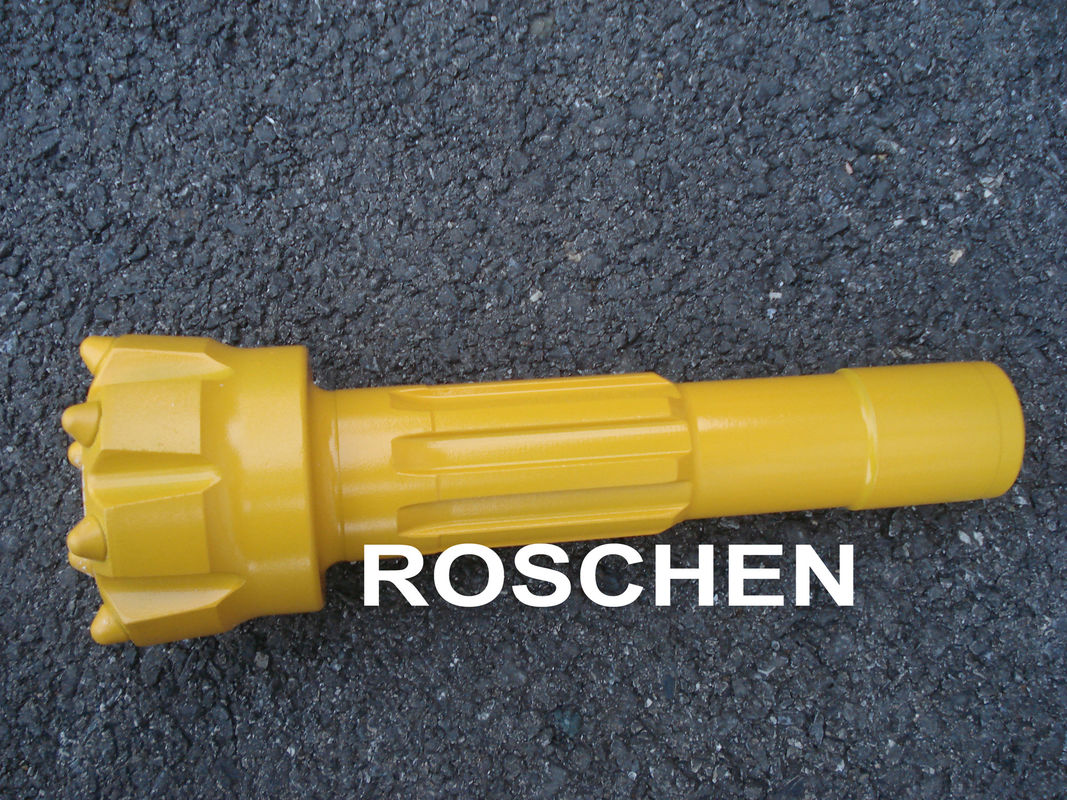

COP 32 34 42 44 54 64 DTH Bits Drilling Equipment for Australia Mining
Down-the-hole (DTH) bits are used with Down-the-hole hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill hammer bits are designed with a splined drive for rotating the bit in the ground. Drill bits are available in different sizes and different styles so they can drill a wide range of hole sizes.
Our variety of Down the Hole drill bits is manufactured using high quality materials to provide you with a fine balance between penetration capability and bit life. We offer a comprehensive range of standard and made to order drill bits on an extensive selection of shanks with a wide variety of head designs to suit every project.
ROSCHEN DTH bits are interchangeable with these famous bits with CIR, Bulroc, Mission, Mach, DHD, SD, QL, Atlas Copco, Secoroc, Boart Longyear, etc. series shank.
|CIR Series Low Air Pressure DTH Bit|
|Type||Dia.(mm)||Spline No.||Weight (Kg)|
Bit face shape selection:
1. Drop Center Bit
For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.
2. Concave Face
The all-round application bit face specifically for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.
3. Flat Face Bit
This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.
4. Double Gauge Face
This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.
5. Convex Face
For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.
|ROSCHEN DTH Bits Specifications|
|Hammer Size||Bits diameter||Shank||ROSCHEN CODE|
|1"||64mm-70mm||2 1/2"-2 3/4"||BR1||ROS 11|
|2"||70mm-95mm||2 3/4"-3 3/4"||MACH20/BR2||ROS 22|
|3"||90mm-102mm||3 1/2"-4"||COP32/COP34/MACH303||ROS 32|
|4"||105mm-152mm||4 1/8"-6"||COP44/DHD340/MACH44||ROS 42|
|5"||133mm-165mm||5 1/4"-6 1/2"||COP54/DHD350R/MACH50||ROS 52|
|6"||152mm-254mm||4 1/8"-10"||COP64/DHD360/SD6||ROS 62|
|M60/QL60/Bulroc BR6||ROS 64|
|Notes: Any special size of DTH bits will be available by requests.|
|Metzke, Remet thread is available!|
The information about dth drill bit you may like to know before order:
1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2. Handling time for an order
Based on order quantity, normally it takes 20 days for production.
in 3 working days after receiving the advance payment
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
6. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B. Our sales team and Technical Support will response for your question within 24 hours through skype: ROSCHEN.TOOL and WhatsApp/Wechat: +86-13764195009
C. Free replacement will provide once the failure confirmed caused or our product quality; Not satisfied with a refund.
