Hammer Bits 115mm For Mining Blast Hole Down The Hole Hammer / Drilling
1 set
MOQ
Negotiate
Price
Hammer Bits 115mm For Mining Blast Hole Down The Hole Hammer / Drilling
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: ROSCHEN
Certification: ISO,CE
Model Number: ROS
High Light:

DHD380 hammer bits

,

Numa120 dth hammers bits

,

DHD360 hammer bits

Payment & Shipping Terms
Packaging Details: Wooden box
Supply Ability: 600 sets
Specifications
Name: Down Hole Hammer Drilling
Bits: Down The Hole Hammer Bits
Equipment: Down Hole Drilling Equipment
Hammer: Well Drilling Hammer
Use: Down The Hole Drilling Method
Tools: Down-the-hole Drilling Tools
Drilling Rig: Down The Hole Drilling Rig
Type: Down The Hole Testing And Drilling
Product Description

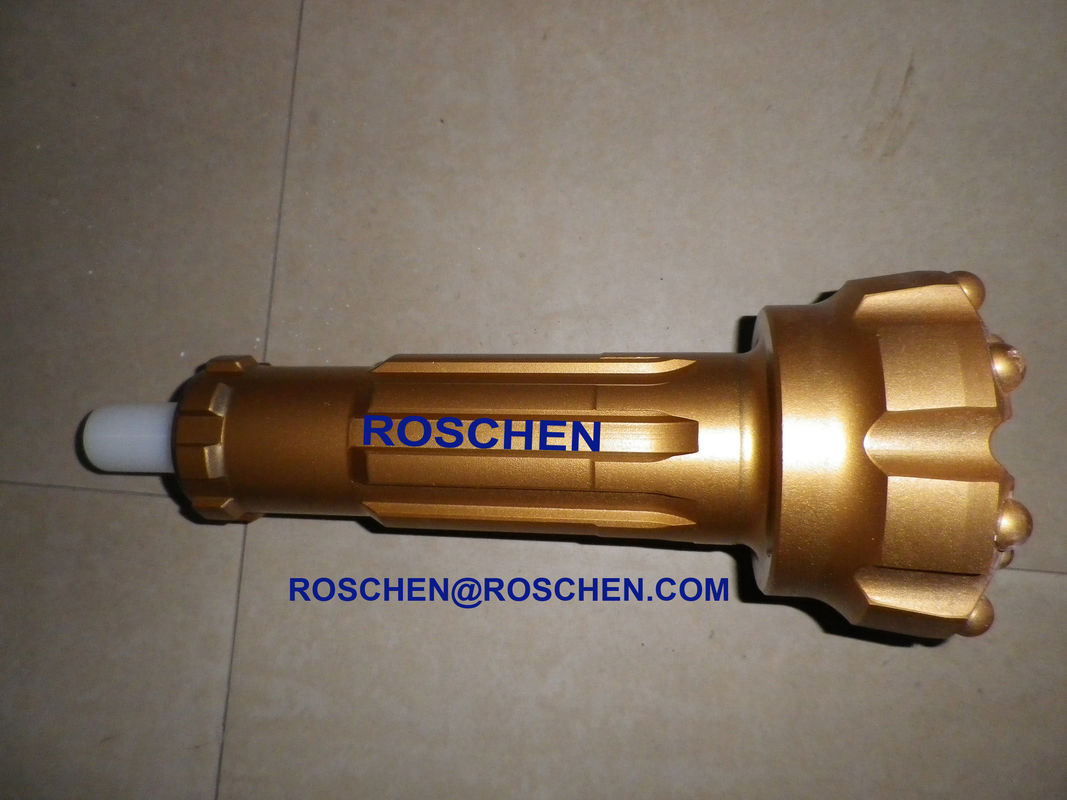

Hammer Bits 115mm For Mining Blast Hole Down The Hole Drilling



DTH Button Bits
High Pressure DTH Button Bit
Hole Range: 76mm to 445mm
Working Air Pressure: 8 to 30 bar



Shank Type:
DHD3.5, DHD340A, DHD350R, DHD360, DHD380, DHD112;
QL40, QL50, QL60, Q80;
SD4, SD5, SD6, SD8, SD10, SD12;
Reverse Circulation button bits: RE543, RE054, RE052
Button Bit: Concave Face, Convex Face, Flat Face


ROSCHEN DTH Hammers Specifications
Hammer Size Bit Shank ROSCHEN Code Connection Thread Suitable bit Working pressure Air consumption
2" BR2 ROS 11 ROS 22 RD50 box ¢70-¢90mm 0.7-1.75Mpa 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" DHD3.5 ROS 32 API 2 3/8" Reg ¢90-¢110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
COP32/COP34
M30 1.5Mpa 9m3/min
4" DHD340 ROS 34 API 2 3/8" Reg ¢110-¢135mm 1.0-2.5Mpa 1.0Mpa 6m3/min
COP44
QL40
SD4 1.8Mpa 10m3/min
M40 2.4Mpa 15m3/min
5" DHD350 ROS 52 ROS 54 API 2 3/8"Reg/API 3 1/2" Reg ¢135-¢155mm 1.0-2.5Mpa 1.0Mpa 9m3/min
COP54
QL50
SD5 1.8Mpa 15m3/min
M50 2.4Mpa 23m3/min
6" DHD360 ROS 62 ROS 64 API 3 1/2" Reg ¢155-¢190mm 1.0-2.5Mpa 1.0Mpa 10m3/min
COP64
QL60
SD6 1.8Mpa 20m3/min
M60 2.4Mpa 28.5m3/min
8" DHD380 ROS 82 ROS 84 API 4 1/2" Reg ¢195-¢254mm 1.0-2.5Mpa 1.0Mpa 15m3/min
COP84
QL80 1.8Mpa 26m3/min
SD8 2.4Mpa 34m3/min
M80/M85
10" SD10 ROS 100 API 6 5/8" Reg ¢254-¢311mm 1.0-2.5Mpa 1.0Mpa 22m3/min
Numa100 1.8Mpa 40m3/min
ROS 100 2.4Mpa 55m3/min
12" DHD1120 ROS 120 API 6 5/8" Reg ¢305-¢445mm 1.0-2.5Mpa 1.0Mpa 30m3/min
SD12 1.8Mpa 56m3/min
Numa120 2.4Mpa 78m3/min
Notes:
Metzke, Remet thread is available!
Any special typ shank of DTH Hammer will be available by requests.



Down the Hole (DTH) Hammer Bits



Down-the-hole (DTH) hammer bits are used with Down-the-hole hammers for drilling holes through a wide range of rocks types. In conjunction with DTH hammers, drill hammer bits are designed with a splined drive for rotating the bit in the ground. Drill bits are available in different sizes and different styles so they can drill a wide range of hole sizes. Our variety of Down the Hole (DTH) bits is manufactured using high quality materials to provide you with a fine balance between penetration capability and bit life. We offer a comprehensive range of standard and made to order drill bits on an extensive selection of shanks with a wide variety of head designs to suit every project.


DTH Drilling Tools


Roschen manufacturing and proven on-site experience, Roschen offer you various drilling equipment needs from outstanding performance solution (equivalent to Atlas Copco COP Gold and MISSION series DTH hammer & button bit), to economical solution (equivalent to Atlas Copco DHD and SD series DTH hammer & button bit), to low working air pressure drilling solution (equivalent to Atlas Copco CIR series DTH hammer & button bit), to Overburden drilling solution(equivalent to Atlas copco Symmetrix and Odex casing system), to RC drilling solution(equivalent to Atlas Copco RC45, RC50 and RE004, RE542, RE543, RE054 RC DTH hammer & button bit).



FAQ
Terms & Conditions of Ordering:
Quality warranty:

Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.


Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damage during transportation. Also we can customize package according to your special requests.


Production time:
Generally need 15-25 days


Transportation:
By air, By Express or By sea according to your requests.



1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight


2. Handling time for an order
Based on order quantity, normally it takes 20 days for production.
in 3 working days after receiving the advance payment


3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.


4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.


5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time


6. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B. Our sales team and Technical Support will response for your question within 24 hours through skype: ROSCHEN.TOOL and WhatsApp/Wechat: +86-13764195009
C. Free replacement will provide once the failure confirmed caused or our product quality; Not satisfied with a refund.
