NQWL diamond core bit series 12 for Very Hardness Rock formation Exploration Core drilling
HQ WL bit series 9
HQ WL bit series 12
NQ WL bit series 12
NQ WL bit series 9

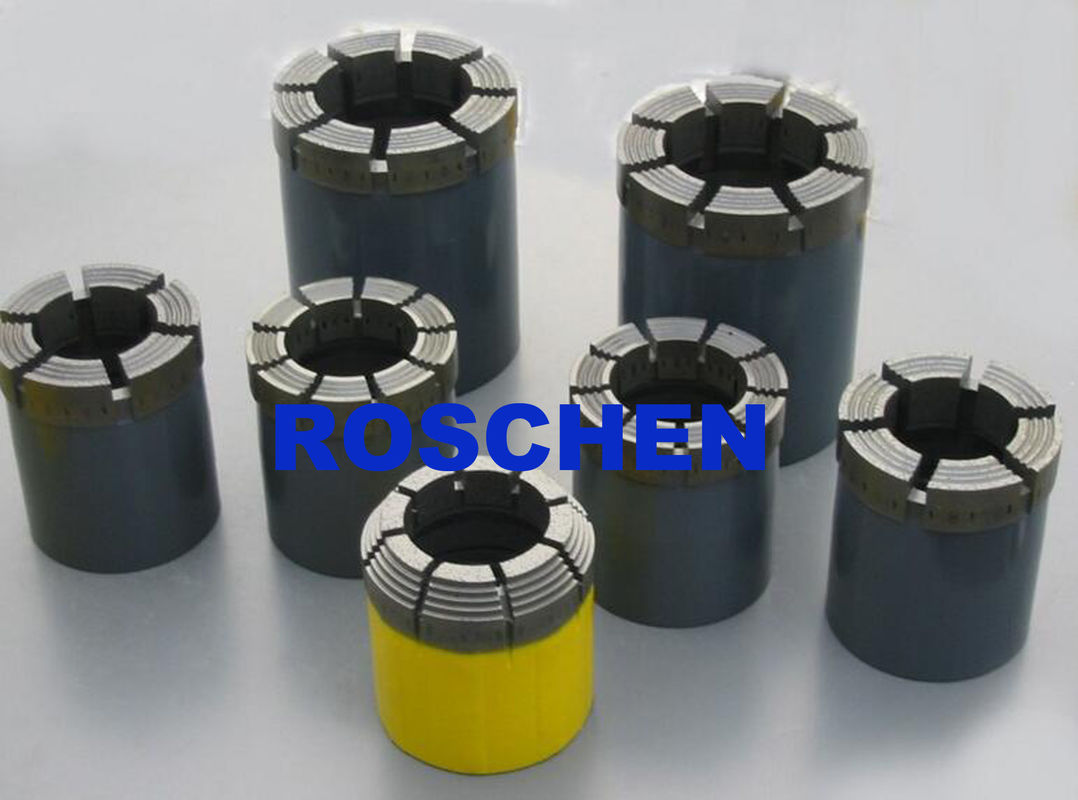

Impregnate diamond core bit
The impregnated diamond bits are the most commonly useful bits in the mineral exploration industry,as they have the widest range of application. The carefully selected grades of high quality synthetic diamonds are distributed in the depth of impregnated bit's matrix series.
Our impregnated bits are manufactured to give optimum penetration rates and bit life, which is required to keep the cost of diamond drilling to a minimum. The optimum diamond size, concentration and matrix type are dependent on the hardness and abrasiveness of the formation to be drilled.
Waterways:
Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.
Matrix:
Our impregnated bits matrices can be selected by our engineer according to ground conditions at client's work site.
Features:
1. High diamond concentration
2. High penetration rate
3. Long lifespan
| Wireline diamond core bits specifications | ||
| SIZE | CORE Ø | HOLE Ø |
| AQTK | 35.5 mm (1-3/8 in) | 48 mm (1-7/8 in) |
| BQ | 36.4 mm (1-7/16 in) | 60 mm (2-3/8 in) |
| BQTK | 40.7 mm (1-5/8 in) | 60 mm (2-3/8 in) |
| NQ | 47.6 mm (1-7/8 in) | 75.7 mm (3 in) |
| NQTK (NQ2") | 50.6 mm (2 in) | 75.7 mm (3 in) |
| NQ3 | 45 mm (1-3/8 in) | 75.7 mm (3 in) |
| HQ | 63.5 mm (2-1/2 in) | 96 mm (3-3/8 in) |
| HQ3 | 61.1 mm (2-3/8 in) | 96 mm (3-3/8 in) |
| PQ3 | 85 mm (3-3/8 in) | 122.6 mm (4-7/8 in) |
| PQ3 | 83 mm (3-1/4 in) | 122.6 mm (4-7/8 in) |
| Wireline diamond core bits, metricl diamond impregnated drill bits specifications | |
| "Q" series: | AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT |
| A-Gauge Core Bits: | AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48 |
| B-Gauge Core Bits: | BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW |
| N-Gauge Core Bits: | NQ, NQ-RSG, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW, |
| H-Gauge Core Bits: | HQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT |
| P-Gauge Core Bits: | PQ, PQ3, PWF-Long, PWF-Short |
| S-Gauge Core Bits: | SWF-Long, SWF-Short |
| U-Gauge Core Bits: | UWF-Long, UWF-Short |
| Z-Gauge Core Bits: | ZWF-Long, ZWF-Short |
| T Series: | T36, T46, T56, T66, T76, T86, T101 |
| TT Series: | TT46, TT56, TT66, TT76, TT86, TT101 |
| T2 Series: | T2 46, T2 56, T2 66, T2 76, T2 86, T2 101 |
| TB Series Metric Core Bits: | TB36, TB46, TB56, TB66, TB76, TB86, TB101 |
| T6 Series Metric Core Bits: | T6-76, T6-86, T6-101, T6-116, T6-131, T6-146 |
| T6S Series Metric Core Bits: | T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146 |
| B Series(IS03552-1)Metric Core Bits: | B36, B46, B56, B66, B76, B86, B101, B116, B131, B146 |
| All other standard: | CDDA, DCDMA, Crealius, and ISO sizes. |
