Diamond Core Drill Bits
>
|
| Place of Origin | China |
| Brand Name | ROSCHEN |
| Certification | ISO,CE |
| Model Number | NQ |

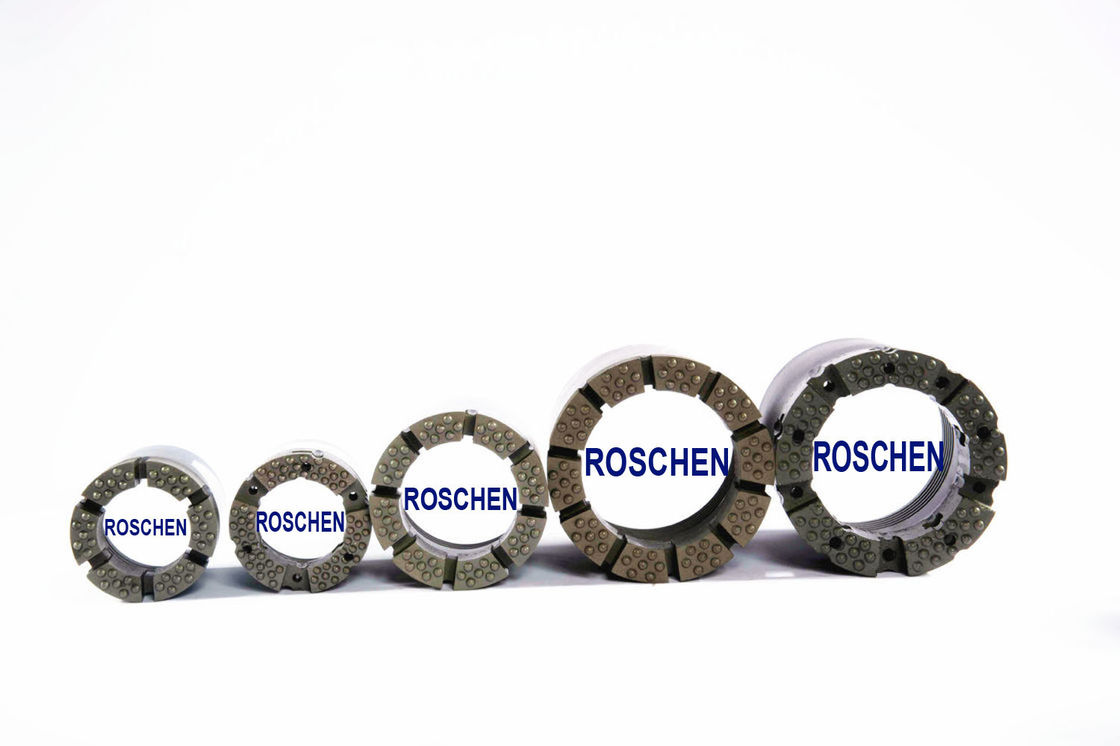

NQ stage series 07 umx 25 mm standard segments, UMX CORE BITS, Ultramatrix diamond core bits
UMX DIAMOND BITS
Extreme drilling conditions demand extreme performance. An exploration driller's success depends on productivity and the performance of drilling equipment. To meet this demand for extreme performance, Roschen developed the UMX (Ultramatrix) diamond bit series, an innovative and versatile line using patented technology.
UMX BIT SERIES
This innovative diamond bit technology uses advanced metallurgy and scientific research, resulting from more than 80 years of field experience. UMX diamond bits have revolutionized mineral exploration. UMX bits drill faster, last longer, and perform in a wider range of drilling conditions and formations. The extended range and versatility of the UMX diamond bits means less tripping out rods and more core in the box.
SSUMX BIT
SSUMX is the original Ultramatrix bit. This impregnated bit with large synthetic diamonds exceeds the performance and reliability of traditional surface-set diamond bits. Drillers around the world have reported a significant increase in life over their traditional surface set bits, and the SSUMX is now their only choice for surface-set drilling.
07UMX BIT
07UMX is extreme durability. With a durable, resilient matrix designed for use in highly variable ground conditions ranging from surface-set to medium-hard, the 07UMX optimizes the ratio of bit life to drilling production.
09UMX BIT
09UMX is extreme penetration. Featuring advanced technology for a free-cutting matrix ideal for use in medium to the hardest ground formations, the 09UMX is the fastest penetrating bit available in the Roschen line.
10UMX BIT
10UMX is free cutting. The latest addition to the UMX family of bits is a high performance diamond bit with the most free cutting matrix made. It quickly penetrates the hardest rock formations.
Notice:
To select the right bit for the job, assess the speed and power of your drill for the size and depths of the holes to be drilled and assess ground conditions such as rock type/formation and down-hole conditions.
Size:
ROSCHEN bits are available in all standard drilling sizes . Also, non-standard sized bits can be produced according to requirements from clients.
Crown Height:
ROSCHEN offers crown impreg depths of 9mm, 12mm, and 16mm .The taller crown heights provide improved bit stability and reduced vibrations, enhancing bit life and performance.
Waterways:
Various waterways are available for diamond impregnated bits. Differing waterways allow for better flushing in various ground conditions and drilling systems.
Matrix:
ROSCHEN impregnated bits matrices can be selected by our engineer according to ground conditions at client's work site.
Threads:
standard Q threads as well as thread types required by clients are available.
Features:
1) certifacation Iso 9001:2008
2) with very small high quality synthetic diamonds mixed.
3) impregnated core bits are more economical to use than other bits.
4) can drill a broad range of geological formations from the softest to the hardest rock
5) widely used in all kinds of drillings for prospecting, water and electricity building and construction industry of road, railway, bridge and building taking out core to examine stake
Our company ROSCHEN specialisted in producing varies kinds of diamond core bits in different international standard size for soft, medieum to hard rock formations. Including impregnated diamond core bit, surface-set diamond bit, reaming shells, impregnated diamond casing bit, casing shoe bit, TC core bit, TC casing bit, diamond reaming shell, corelifter, corelifter case, diamond sub-adapters, hoist plugs, tap, etc.
With ISO certificate & quality control.
| Wireline Core Bits Specifications: | ||
| SIZE | CORE Ø | HOLE Ø |
| AQTK | 35.5 mm (1-3/8 in) | 48 mm (1-7/8 in) |
| BQ | 36.4 mm (1-7/16 in) | 60 mm (2-3/8 in) |
| BQTK | 40.7 mm (1-5/8 in) | 60 mm (2-3/8 in) |
| NQ | 47.6 mm (1-7/8 in) | 75.7 mm (3 in) |
| NQTK (NQ2") | 50.6 mm (2 in) | 75.7 mm (3 in) |
| NQ3 | 45 mm (1-3/8 in) | 75.7 mm (3 in) |
| HQ | 63.5 mm (2-1/2 in) | 96 mm (3-3/8 in) |
| HQ3 | 61.1 mm (2-3/8 in) | 96 mm (3-3/8 in) |
| PQ3 | 85 mm (3-3/8 in) | 122.6 mm (4-7/8 in) |
| PQ3 | 83 mm (3-1/4 in) | 122.6 mm (4-7/8 in) |
| Diamond core drill bits and diamond non-core drill bits Specifications | |
| A-Gauge Core Bits: | A, A-RSG, AWG(AX), AWM, AWT, LTK48 |
| B-Gauge Core Bits: | B, B-RSG, B-2.400, B3, BWG(BX), BWM, BWT, LTK60, TBW |
| N-Gauge Core Bits: | N, NMLC, NWG(NX), NWM, NWT, TNW |
| H-Gauge Core Bits: | N, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT |
| P- Gauge Core Bits: | P, P3, PWF-Long, PWF-Short |
| S- Gauge Core Bits: | SWF-Long, SWF-Short |
| U- Gauge Core Bits: | UWF-Long, UWF-Short |
| Z- Gauge Core Bits: | ZWF-Long, ZWF-Short |
| T, TT, T2 &TB Series Metric Core Bits: | T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76,T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline |
| T6 Series Metric Core Bits: | T6-76, T6-86, T6-101, T6-116, T6-131, T6-146 |
| T6S Series Metric Core Bits: | T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146 |
| Q Series: | AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT |
| T2 Series: | T2 46, T2 56, T2 66, T2 76, T2 86, T2 101 |
| T6 Series: | T6 76, T6 86, T6 101, T6 116, T6 131, T6 146, T6S 101 |
| T Series: | T36, T46, T56, T66, T76, T86 |
| Z Series: | Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146 |
| B Series: | B36, B46, B56, B66, B76, B86, B101, B116, B131, B146 |
| WF Series: | HWF, PWF, SWF, UWF, ZWF |
| WT Series: | RWT, EWT, AWT, BWT, NWT, HWT |
| WM Series: | EWM, AWM, BWM, NWM |
| WG Series: | EWG, AWG, BWG, NWG, HWG |
| Others: | NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146, TT46, TB56, TS116, CHD101. |
| Customized standard | CDDA, DCAMA, Crealius, and ISO sizes . |
