DHD360 6" Dth Down The Hole Hammer Carbon Steel With 165mm DTH Button Bits

1 sets
MOQ
Negotiate
Price
DHD360 6" Dth Down The Hole Hammer Carbon Steel With 165mm DTH Button Bits
Features Gallery Product Description Request A Quote
Features
Specifications
Certification: ISO9001
Machine Type: Drilling Tool
Type: Air Hammer
Material: Carbon Steel
Processing Type: Forging
Use: Mining Tool
Model: Down The Hole Hammer
Drilling: Down The Hole Drilling
High Light:

down hole tools

,

down hole hammer

Basic Infomation
Place of Origin: GERMANY
Brand Name: ROSCHEN
Model Number: DHD360 6"
Payment & Shipping Terms
Packaging Details: Wooden Box
Supply Ability: 10000 pcs
Product Description

DHD360 6" dth hammer with 165mm DTH Button Bits for 89mm drill rods with API 4 1/2" REG BOX

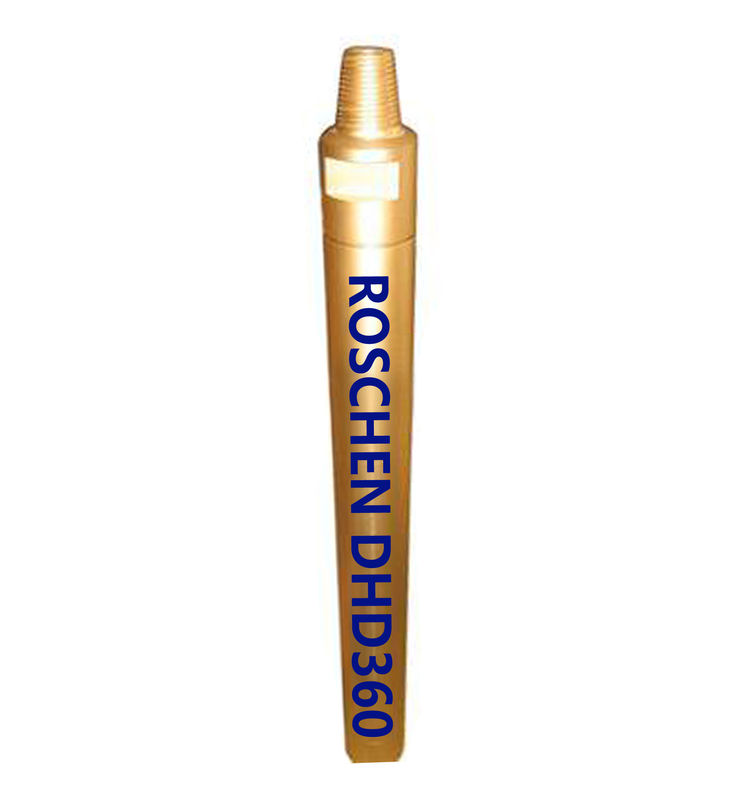

DHD360 6" dth hammer




DHD360 6" dth hammer

DHD360 6" dth hammer with 165mm DTH Button Bits for 89mm drill rods with API 4 1/2" REG BOX



DHD360 6" dth hammer




Description of dth hammer:




Matched products:


89mm drill rods with API 3 1/2" REG PIN
89mm drill rods with API 3 1/2" REG BOX
114mm drill rods with API 4 1/2" REG PIN
114mm drill rods with API 4 1/2" REG BOX
Bits with COP84. DHD380, Mission80, QL80, SD8 shanks



Application fields:


All kinds of fields, such as mining, quarry, tunnel, bridge, construction and etc., but extremely exellent to use with casing tubes during casing drilling.



Features:

High impact power with low frequency, long service life, non-return flushing, reliable performance.




Techincal Parameters

Description Product Code Bit Shank Thread Connection Outer Dia.(mm) Length Without Bit (mm) Weight (kg) Flat Wrench (mm) Rec. Hole Size (mm)
RS 180 260000 DHD38, COP84 API 4 1/2" REG PIN 180 1522 190 150 203-271
Working Pressure (bar) Impact Frequency at 17 bar (Hz) Normal Axial Pressure (kN) Rec.Rotation Speed (r/min) Air Consumption (m³/min)
14-24 20 18.3 30-40 12bar 17bar 24bar
22.5 28.2 39.6



Hammers Matching To Other Bits
Description Product Code Bit Shank Thread Connection Outer Dia. (mm) Length Without Bit (mm) Weight (kg) Flat Wrench (mm) Rec. Hole Size (mm)
RS180-QL80 260001 QL80 API 4 1/2" REG PIN 180 1515 190 150 203-271
RS180-Mission80 260003 Mission80 1515 188
RS180-MACH80 260005 MACH80 1522 190
RS180-SD8 261000 SD8 1492 195



Working
Pressur (bar)
Impact
Frequency
at 17 bar
Normal
Axial
Pressure
(kN
Rec.
Rotation
Speed
(r/min)
Air
Consumption
(m³/min)

14-24 20 18.3 30-40 14bar 17bar 24bar
22.5 28.2 39.6





ROSCHEN DTH Hammers Specifications
Hammer Size Bit Shank ROSCHEN Code Connection Thread Suitable bit Working pressure Air consumption
1" BR1 ROS 11 RD50 box ¢50-70mm 0.7-1.75Mpa 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
2" BR2 ROS 22 RD50 box ¢70-¢90mm 0.7-1.75Mpa 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" DHD3.5 ROS 32 API 2 3/8" Reg ¢90-¢110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
COP32/COP34
M30 1.5Mpa 9m3/min
4" DHD340 ROS 34 API 2 3/8" Reg ¢110-¢135mm 1.0-2.5Mpa 1.0Mpa 6m3/min
COP44
QL40
SD4 1.8Mpa 10m3/min
M40 2.4Mpa 15m3/min
5" DHD350 ROS 52
ROS 54
API 2 3/8" Reg /API 3 1/2" Reg ¢135-¢155mm 1.0-2.5Mpa 1.0Mpa 9m3/min
COP54
QL50
SD5 1.8Mpa 15m3/min
M50 2.4Mpa 23m3/min
6" DHD360 ROS 62
ROS 64
API 3 1/2" Reg ¢155-¢190mm 1.0-2.5Mpa 1.0Mpa 10m3/min
COP64
QL60
SD6 1.8Mpa 20m3/min
M60 2.4Mpa 28.5m3/min
8" DHD380 ROS 82
ROS 84
API 4 1/2" Reg ¢195-¢254mm 1.0-2.5Mpa 1.0Mpa 15m3/min
COP84
QL80 1.8Mpa 26m3/min
SD8 2.4Mpa 34m3/min
M80/M85
10" SD10 ROS 100 API 6 5/8" Reg ¢254-¢311mm 1.0-2.5Mpa 1.0Mpa 22m3/min
Numa100 1.8Mpa 40m3/min
ROS 100 2.4Mpa 55m3/min
12" DHD1120 ROS 120 API 6 5/8" Reg ¢305-¢445mm 1.0-2.5Mpa 1.0Mpa 30m3/min
SD12 1.8Mpa 56m3/min
Numa120 2.4Mpa 78m3/min
Notes:
Metzke, Remet thread is available!
Any special typ shank of DTH Hammer will be available by requests.
