Model Name: Symmetric/ Concentric Overburden Drilling System
Machine Type: DTH Hammer
Material: Steel&Carbide
Appilication: Water Well, Construction, Mining
Color: Customerized(blue, Yellow, Red.....)
Parts: Guide Device/Pilot Bit/Reamer......
High Light:

diamond core drilling bits


concrete core drill bit

Basic Infomation
Place of Origin: China
Brand Name: ROSCHEN
Certification: ISO9001,API
Model Number: RSOD114~609
Payment & Shipping Terms
Packaging Details: Wooden Box
Payment Terms: L/C, D/P, T/T, MoneyGram
Supply Ability: 1500~2000sets/month
Product Description

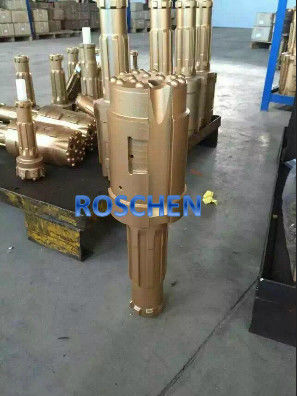

Symmetric Overburden Drilling System

The symmetric drilling system is designed to drill and case a hole simultaneously through unstabled ground conditions. The driver bit incorporated with a satisficial ring or reusable ring makes a full face head design which significantly improves the penetration rate and hole straightness of drilling. The internal flushing grooves together with the built-in casing shoes gives a good seal to the button of the drilling hole, and thus minimising the disruption of the surronding of the drill hole.


1. Concentric/symmetric overburden system

In the projects of drilling,drillers often meet with problems due to the loose land formation.These may cause troubles such as difficulty in drilling down,collapse of holes,damage of drilling tools,etc.To solve the problems,the best way is to use (ODEX)Overburden Drilling System which can prevent holes and drilling tools from damage,and support the holes by casing tubes.

2. General Introduction
1) drill in overburden unstable rock
2) one step to drill and follow casing
3) flexible to open or close
4) effecient below 300mm

3. Design Principles:
Make the casing follow easy and the equipment and operation simple
Outstanding Advantages
Simple structure,simple operation,reliable quality,retrievable drilling tools,long service life.

4. Raw Material
first class special alloy steel with high strength, heat resistance and wearable
The best tungsten carbides from China are commonly applied.
Tungsten carbide from European is also available.

5. Working Process:
1. Ring bit and casing shoe assembly is welded to casing prior to drilling. Lock the assembly into pilot bit with hammer. The pilot bit's upper shoulder engages the shoulder of the casing shoe.
2. On completion of drilling and casing, the drill string with pilot bit is retrived by a slight reverse rotation to unlock the bayonet coupling. The ring bit stays in the hole, and can be recovered only if the casing is retrieved.
3. Hammer's percussive energy is transferred through the pilot and ring bits, crushing rock. Part of impact energy advances casing.
4. Drilling continues to the desired depth in the bedrock using a convertional drilling.


Product type Casing OD Casing wall max. Ring bit ID Ring bit OD Pilot bit OD Hammer
RSOD114 114.3 6/10 91/78 128/124 100/92.5 RD35
RSOD127 126.7 7 99 140 110 RD35
RSOD140 139.7 7/10 116/94 154/150 124/117.5 RD45,RQL4
RSOD168 168.3 8/12.7 142/121 182/178 150/140 RD55,RQL5
RSOD178 178.3 10 145 195 156 RD55,RQL5
RSOD194 193.7 6/12.7 167/148 212/203 180/167 RD65,RQL6
RSOD219 219.1 7/12.7 186/167 234 203/191 RD65,RQL6
RSOD273 273 8/12.7 232/219 292 255/246 RD85,RQL8
RSOD325 323.9 8/12.7 281/270 342/342 306/297 RD85,RSD8
RSOD406 406.4 12.7 328 419 374 RSD10,RN125
RSOD508 508 15 412 526 470 RD475,SD15
RSOD609 609.6 15 513 637 570 RD525,SD18
