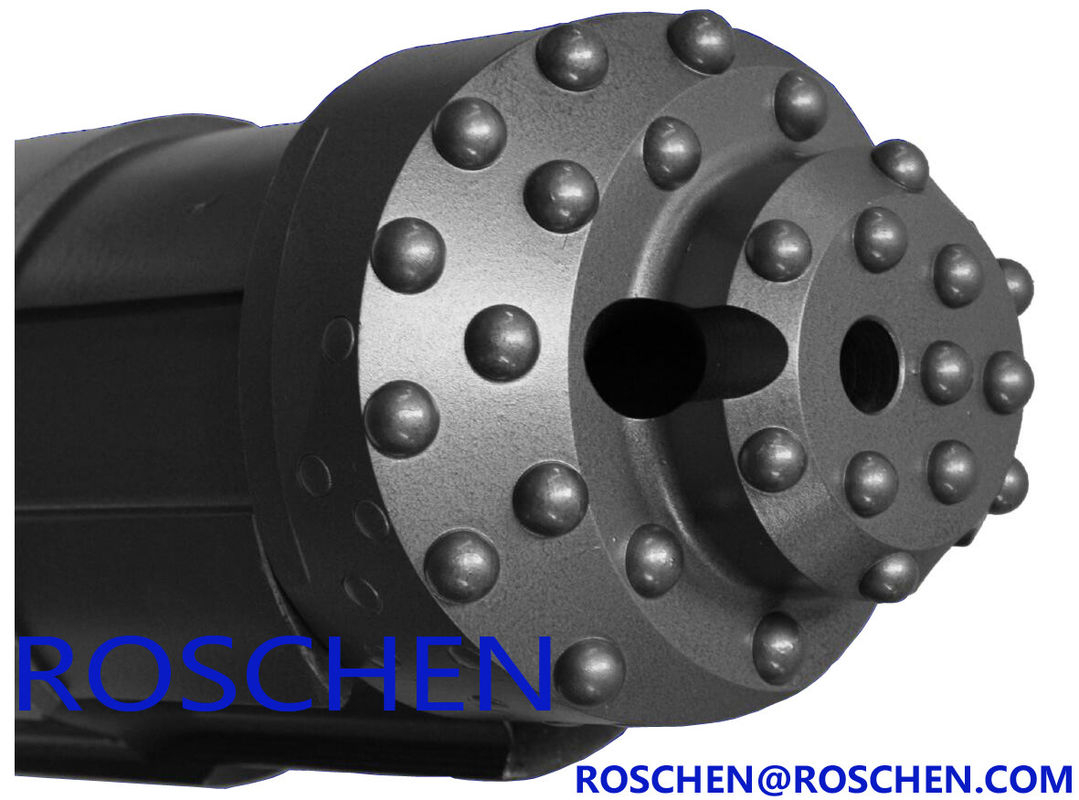

eccentric overburden drilling

ODS SYSTEM



Overburden Drilling System



Roschen's ODS system is a proven two-part Eccentric Overburden Drilling system designed for the simultaneous drilling and casing of holes, through unstable ground conditions.


Key Features:
. Available for casing sizes from 114mm (4 1/2") to 273mm (10¾") diameter Simple two-part design for better transfer of energy to Bit face
. Optimal drilling performance in unstable ground conditions
. The Eccentric Bit can be easily and quickly removed for replacement or refurbishment
. "open and closed" locking arrangement inside the bit holder so nothing can prevent the Eccentric Bit from closing
. The ODS Bit has a positive pilot design which helps guide the Eccentric Bit and produce a straighter hole




Eccentric Casing System ( Eccentric Overburden Drilling System)
Type Casing Recom.Size (mm) Min Inner Dia.of Casing shoe Dia(mm) D Reaming Dia (mm) C DTH HAMMER Drill Pipe Part No.
Max.OD (A) Min.ID (B) Connection Thread O.D.(mm) Wrench Flat(mm)
ODEX90 115 102 90 123 DHD3.5 API 2 3/8" Reg 76 65 ODEX90-DHD
COP32 ODEX90-COP
QL30 ODEX90-QL30
ODEX115 142 128 115 152 DHD340 API 2 3/8" Reg 76 65 ODEX115-DHD
COP44 ODEX115-COP
SD4 ODEX115-SD4
QL40 ODEX115-QL40
Mission 40 ODEX115-M40
ODEX140 171 157 140 187 DHD350R API 2 3/8" Reg 89 65 ODEX140-DHD
COP54 ODEX140-COP
SD5 ODEX140-SD4
QL50 ODEX140-QL50
Mission 50 ODEX140-M50
ODEX165 196 183 165 212 DHD360 API 3 1/2" Reg 114 95 ODEX165-DHD
COP64 ODEX165-COP
SD6 ODEX165-SD6
QL60 ODEX165-QL60
Mission 60 ODEX165-M60
ODEX190 222 205 190 237 DHD360 API 3 1/2" Reg 114 95 ODEX190-DHD
COP64 ODEX190-COP
SD6 ODEX190-SD6
QL60 ODEX190-QL60
Mission 60 ODEX190-M60
ODEX240 273 260 240 306 DHD380 API 3 1/2" Reg 114 95 ODEX240-DHD
COP84 ODEX240-COP
SD8 ODEX240-SD8
QL80 ODEX240-QL80
Mission 80 ODEX240-M80
ODEX280 327 305 280 370 SD10 API 4 1/2" Reg 114 95 ODEX280-SD
Numa100 ODEX280-NU




ODEX

ROSCHEN produces ODEX Eccentric Overburden Drilling System, starting with the ODEX90 to ODEX445. This three -piece system comprises of pilot bit, reamer,guide device. ROSCHEN ODEX overburden drilling systems are widely used in a variety of applications from well drilling and mining to rock anchoring and site investigation.


Advtanges:
- Rapid removal of cuttings; High penetration rate, especially in resistant rock formation;
- Easy soil and groundwater sampling during drilling;
- Possible to measure yield estimate at selected depth in the formation;
- Advantageous in unconsolidated formations with a high risk of caving


Application Range:
It is suitable for drilling water wells, geothermal wells, short mirco piles, medium mini-type grouting hole of building, dam and harbour project.
1. When drilling starts, the reamer swings out and reams the pilot-hole wide enough for the casing tube to slide down behind the drill bit assembly.
2. When the required depth is reached, rotation is reversed carefully, whereupon the reamer swings in, allowing the drill bit assembly to be pulled up through the casing.
3. Casing tubes that are to be left in the drill hole should be sealed at the bottom of the hole by means of cement grout or some other sealing agent.
4. Drilling continues to the desired depth in the bedrock using a conventional drilling.
