eccentric overburden drilling

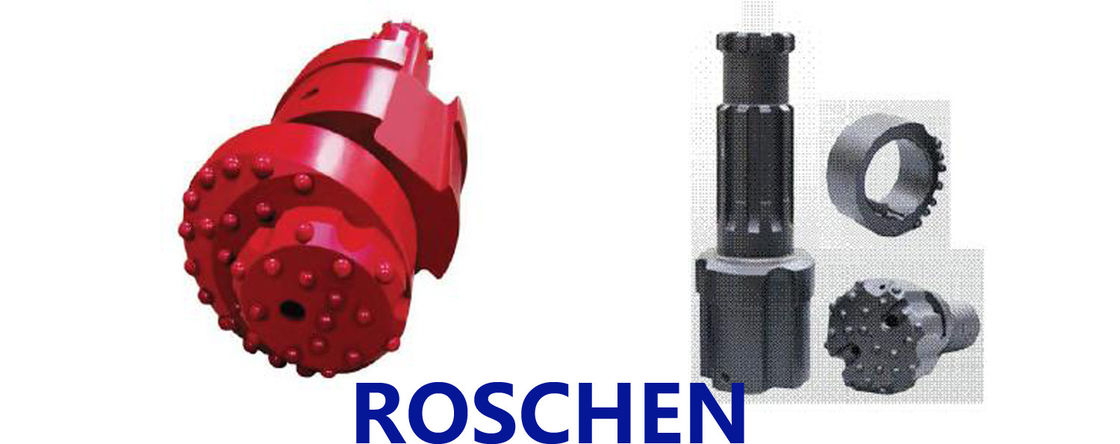

eccentric overburden drilling Tubex XL 165 used for Casing Advancement Systems
Overburden Drilling system
Roschen's ODS system is a proven two-part Eccentric Overburden Drilling system designed for the simultaneous drilling and casing of holes, through unstable ground conditions.
Key Features:
. Available for casing sizes from 114mm (4 1/2") to 273mm (10¾") diameter Simple two-part design for better transfer of energy to Bit face
. Optimal drilling performance in unstable ground conditions
. The Eccentric Bit can be easily and quickly removed for replacement or refurbishment
. "open and closed" locking arrangement inside the bit holder so nothing can prevent the Eccentric Bit from closing
. The ODS Bit has a positive pilot design which helps guide the Eccentric Bit and produce a straighter hole


Eccentric Casing System ( Eccentric Overburden Drilling System)
TypeCasing Recom.Size (mm)Min Inner Dia.of Casing shoe Dia(mm) DReaming Dia (mm) CDTH HAMMERDrill PipePart No.*
Max.OD (A)Min.ID (B)Connection ThreadO.D.(mm)Wrench Flat(mm)
ODEX9011510290123DHD3.5API 2 3/8" Reg7665ODEX90-DHD
ODEX115142128115152DHD340API 2 3/8" Reg7665ODEX115-DHD
Mission 40ODEX115-M40
ODEX140171157140187DHD350RAPI 2 3/8" Reg8965ODEX140-DHD
Mission 50ODEX140-M50
ODEX165196183165212DHD360API 3 1/2" Reg11495ODEX165-DHD
Mission 60ODEX165-M60
ODEX190222205190237DHD360API 3 1/2" Reg11495ODEX190-DHD
Mission 60ODEX190-M60
ODEX240273260240306DHD380API 3 1/2" Reg11495ODEX240-DHD
Mission 80ODEX240-M80
ODEX280327305280370SD10API 4 1/2" Reg11495ODEX280-SD

* Complete system comprises Bit Holder, Eccentric Bit, and Locking Pins. Other shank styles available on request
The ODS is a two part eccentric overburden drilling system designed for the simultaneous installation of casings to support unstable ground conditions.
The bit holder is fitted into the hammer in the same way as a conventional button bit would be.
The eccentric button bit is locked into the bit holder by means of a double 'Seloc' pin arrangement which can be removed when the bit needs either regrinding or replacing.
ROSCHEN only supply threaded casings but the system can also be used with less expensive welded casings when the casing is required to be left in the hole.
When the ODS system has been drilled to the required depth, the eccentric bit can be closed to its concentric position by pulling up against the casing shoe and counter rotating 180 degrees, and the complete system withdrawn from the casing.
If required, it is then possible to drill on into solid rock using a conventional button bit of a diameter equal to the system size.
It is important to make sure that a stabiliser of the correct dimensions is positioned directly behind the hammer.
ROSCHEN manufactures a range of bit holders, eccentric bits, casing shoes and stabilisers, to accompany our ODS drilling systems. For more product details, please consult our technical sales brochures or contact our sales team for assistance.
