RH SD M Series Water Well Drilling Tools For Dth Drilling , Down Hole Hammer
Features Gallery Product Description Request A Quote
Features
Specifications
Use: Dth Hammer Drilling
Series: ​​​​​​​​​​​​DTH Hammers
Drill: Dth Hammer Drilling
Type: Down The Hole Hammer Bits
Name: Rev Drill Down Hole Hammer
No: Puma Dth Hammers
Hot Sale: Down Hole Hammer For Sale
COP Hammer: Atlas Copco Down Hole Hammers
Drilling: Dth Drilling
Series No: Hole Hammer
High Light:

dth drilling tools

,

down hole hammer

Basic Infomation
Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: ISO
Model Number: ROS 52, ROS 54
Payment & Shipping Terms
Packaging Details: Poly wooden box
Supply Ability: 100000 pcs
Product Description

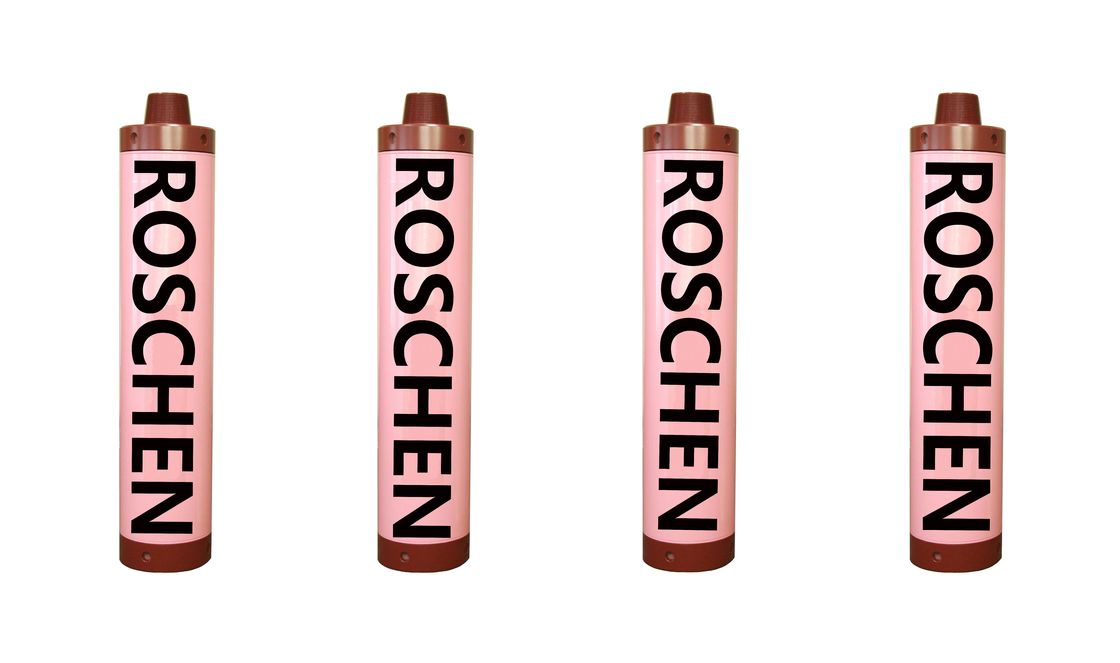

DOWN-THE-HOLE HAMMERS


DOWN-THE-HOLE HAMMERS RH, SD, M Series DTH Hammer for DTH Drilling





Roschen ​​​​​​​​​​​​DTH hammers transmit intensive impact energy with low energy loss. This results in good rock breakage, high penetration rates and high productivity. The equipment is designed to give optimal hole quality, reliability, and long service life, as well as the best blasting results and low total operation cost.


Roschen hammers are flexible, and designed to work with various industry-standard shank designs and a wide range of standard size hammers. Whatever your application, has the solution to match your requirements.




Advantages:


1. Advanced hammer designs with high power and air efficiency increases productivity
2. Tailored product offering covers all your applications and conditions
3. Easy service and maintenance designs reduces machine downtime
4. Generic and proprietary shank options give you flexibility and reliability




Model Weight kg (lb) Outside diameter mm(in.) Hammer length mm (in.)
RH460 40 - 244 (88 - 537) 97.5 - 194 (3.84 - 7.64) 985 - 1,426 (38.78 - 56.14)
RH510 (RH550) 25 - 173 (55 - 380) 81.3 - 181 (3.2 - 7.12) 823 - 1,270 (32.4 - 50)




ROSCHEN Model Model Size Weight lb. Outside diameter Length OP pressure psi
ROS 52 RH460g 5" 170 496" 42.01" 150-350
ROS 32 RH550r 3" 55 3.2" 32.4" 150-350
ROS 42 RH550r 4" 83 3.86" 36.0" 150-350
ROS 54 RH550 5" 145 4.72" 38.86" 150-350
ROS 54 RH550g 5" 160 5.0" 38.86" 150-350
ROS 64 RH550r 5" 160 5.0" 38.86" 150-350
ROS 64 RH550w 6" 158 5.6" 36.3" 150-350
ROS 64 RH550 6" 158 5.6" 36.3" 150-350
ROS 64 RH550g 6" 180 5.9" 36.3" 150-350
ROS 64 RH550r 6" 180 5.9" 36.3" 150-350
ROS 84 RH550r 8" 380 7.12" 48.0" 150-350
ROS 84 RH550w 8" 380 7.12" 50.0" 150-350
ROSCHEN DTH Hammers Specifications
Hammer Size Bit Shank ROSCHEN Code Connection Thread Suitable bit Working pressure Air consumption
1" BR1 ROS 11 RD50 box ¢50-70mm 0.7-1.75Mpa 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
2" BR2 ROS 22 RD50 box ¢70-¢90mm 0.7-1.75Mpa 0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" DHD3.5 ROS 32 API 2 3/8" Reg ¢90-¢110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
COP32/COP34
M30 1.5Mpa 9m3/min
4" DHD340 ROS 34 API 2 3/8" Reg ¢110-¢135mm 1.0-2.5Mpa 1.0Mpa 6m3/min
COP44
QL40
SD4 1.8Mpa 10m3/min
M40 2.4Mpa 15m3/min
5" DHD350 ROS 52 ROS 54 API 2 3/8" Reg /API 3 1/2" Reg ¢135-¢155mm 1.0-2.5Mpa 1.0Mpa 9m3/min
COP54
QL50
SD5 1.8Mpa 15m3/min
M50 2.4Mpa 23m3/min
6" DHD360 ROS 62 ROS 64 API 3 1/2" Reg ¢155-¢190mm 1.0-2.5Mpa 1.0Mpa 10m3/min
COP64
QL60
SD6 1.8Mpa 20m3/min
M60 2.4Mpa 28.5m3/min
8" DHD380 ROS 82 ROS 84 API 4 1/2" Reg ¢195-¢254mm 1.0-2.5Mpa 1.0Mpa 15m3/min
COP84
QL80 1.8Mpa 26m3/min
SD8 2.4Mpa 34m3/min
M80/M85
10" SD10 ROS 100 API 6 5/8" Reg ¢254-¢311mm 1.0-2.5Mpa 1.0Mpa 22m3/min
Numa100 1.8Mpa 40m3/min
ROS 100 2.4Mpa 55m3/min
12" DHD1120 ROS 120 API 6 5/8" Reg ¢305-¢445mm 1.0-2.5Mpa 1.0Mpa 30m3/min
SD12 1.8Mpa 56m3/min
Numa120 2.4Mpa 78m3/min
Notes:
Metzke, Remet thread is available!
Any special typ shank of DTH Hammer will be available by requests.






Roschen 4" and 5" hammer series




With years of industry experience, Roschen's tried and tested hammers are based on a well-proven design. A good example of this is the range of 4" and 5" hammers with patented features for optimized energy efficiency, high impact and productivity in variable ground conditions.
