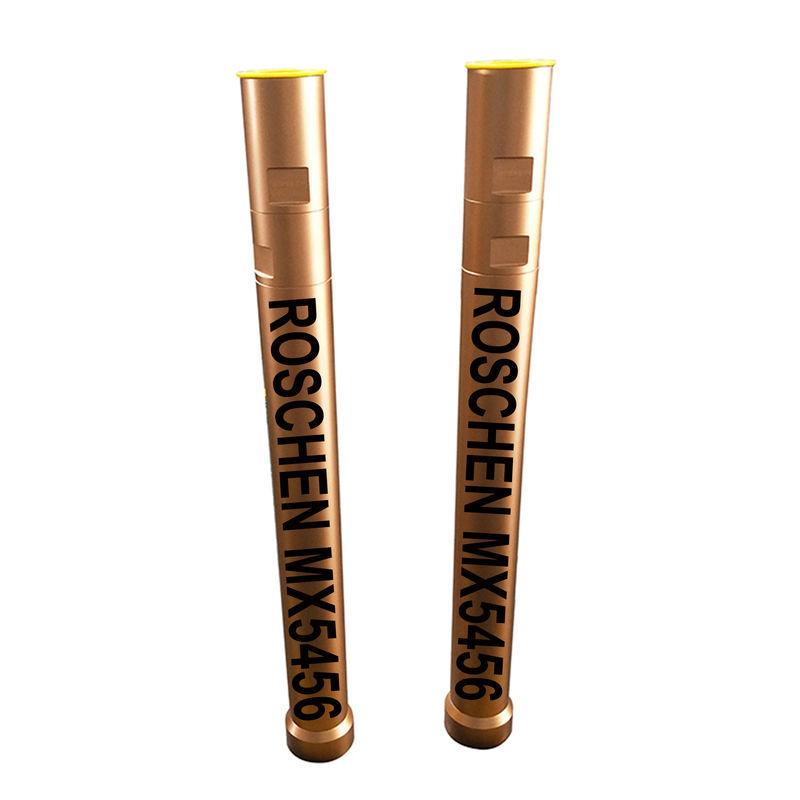

Mincon MX5456 Reverse Circulation Hammer 4 1/2" Remet Thread For Exploration Mineral Drilling

China Mincon MX5456 Reverse Circulation Hammer 4 1/2" Remet Thread For Exploration Mineral Drilling supplier
Mincon MX5456 Reverse Circulation Hammer 4 1/2" Remet Thread For Exploration Mineral Drilling supplier Mincon MX5456 Reverse Circulation Hammer 4 1/2" Remet Thread For Exploration Mineral Drilling supplier Mincon MX5456 Reverse Circulation Hammer 4 1/2" Remet Thread For Exploration Mineral Drilling supplier

Large Image :  Mincon MX5456 Reverse Circulation Hammer 4 1/2" Remet Thread For Exploration Mineral Drilling

Product Details:

Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: ISO
Model Number: MX5456

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: Negotiate
Packaging Details: Wooden box
Supply Ability: 1000000 pcs
Contact Now
Detailed Product Description
Name: MX5456 Rc Hammer Type: Mincon MX5456 RC Hammer
Thread: 4 1/2" Metzke Thread Type: (4 1/2" Remet
Factory: China Reverse Circulation RC Hammer Manufacturers Size: China 4.5" Reverse Circulation RC Hammer With Remet And Metzke
Hammer Shank: RC545 RC Hammers (RE545 Shank) RC Hammer: China RC Drilling System Manufacturers And Suppliers
RC Hammer Factory: China DTH Reverse Circulation RC Hammers For Drilling Hammer Type: RC Hammers, RC DTH Hammers
RC Hammer Bit: RC Hammer Bits, RC Drill Bits

Mincon MX5456 RC Hammer 4 1/2" Remet thread for Exploration Mineral drilling




Roschen can manufacture MX5456 series RC Hammer, which have good drill in gold, mining site.

The Mincon Xploration (MX) 5456 is a high performance geological sampling tool that provides trouble free operation in all kinds of demanding conditions manufactured by Roschen. It delivers superior penetration rates versus other manufacturers with extremely smooth drilling and continuous sampling. Like all Roschen DTH hammers, the MX maintains excellent operating pressure over an extended service life and overall is the tool you require to get the maximum out of all your equipment. Roschen Products are all manufactured in house, and all processes are controlled by Roschen's experienced Engineering Department. This guarantees that the quality you “Expect” is always delivered.



Key Features and Benefits:

. Patented mounting system for fixed internal components.
. An extremely sturdy shank with a short length allows for greater transfer of energy between the piston and bit.
. Variable chuck sleeve lengths for varying drilling conditions.
. Single piece sample tube assembly.
. Specially heat treated sample tubes over superior wear resistance vs. our competitors.
. Variable sample tube bore sizes allows the contractor greater flexibility in setting up his tool.
. Hardened wear sleeve for optimum wear resistance even in the most abrasive conditions.
. Multi-start threads on backhead and chuck ensure easy coupling/uncoupling of hammer.
. Metal sprayed chuck sleeve and wear sleeve options for greater wear resistance on outside circulation.
. All critical internal components are heat treated under strict control to maximize tool longevity.
. Ease of service with no special assembly or disassembly tools required.



MX5456 RC Hammer Technical Datas
Specifications Metric Imperial
Hammer Outside Diameter 132mm 5.2”
Hammer Length (Less Drill Bit) 1165mm 45.9”
Backhead Spanner Flat Size 100mm 4”
Drill Bit Shank Type MX5456
Backhead Thread 4 1/2” Metzke
Drill Bit Size Range 137mm - 146mm 5.4” - 5.75”
Hammer Weight (Less Bit) 77 Kgs 170 Lbs
Maximum Drill Bit Weight 18.7 Kgs 41.2 Lbs
Piston Weight 19 Kgs 41.9 Lb
Make up Torque 5288-7050 NM 3900-5200 FT Lbs
Backhead Stand Off 0.75mm 0.030”
Recommended Minimum Air Package 25.5m3/min @ 24.1Bar 900cfm @ 350psi




Parts List:


Mincon MX5456 Reverse Circulation Hammer 4 1/2" Remet Thread For Exploration Mineral Drilling



Item Part No Description
  MX5456AS02 MX5456 Hammer 4 1/2" Metzke
1 1300-0850 Internal Circlip
2 MX5456AT11 Adaptor Tube 4.5 Metzke Pin
3 BS 228 O Ring (x 2)
4 BS 040 O Ring
5 MX5456SC01 Airscreen
6 MX5456BH11 Back Head 4 ½ Metzke
7 8406-0200-N8 Check Valve Seal
8 MX5456CV01 Check Valve Plunger
9 MX5456SP01 Check Valve Spring
10 MX5456SM01 Steel Make Up Ring
11 MX5456LR01 Lock Ring
12 MX5456SS01 Spacer
13 MX5456ST01 Sample Tube
  MX5456ST03 Sample Tube
14 BS230 O Ring
15 MX5456DR01 Sample Tube Mount
16 BS228 O Ring
17 BS237 O Ring (x 2)
18 BS042 O Ring
19 MX5456SR01 Seating Ring
20 MX5456IC01 Inner Cylinder
21 MX5456PN01 Piston
22 MX5456WS01 Wear Sleeve
23 MX5456PR01 Piston Retain Ring
24 MX5456BB01 Aligner Bearing Bush
25 N7-102-4 O Ring (x 2)
26 5456PIN Bit Retaining Pins x 8 (Set)
27 MX5456CK11 Chuck



Air Pressures are given for compressors operating at seal level at 20° C (68º F). Corrections to actual compressor volume should be made to account for temperature, altitude and relative humidity.


Mincon MX5456 Reverse Circulation Hammer 4 1/2" Remet Thread For Exploration Mineral Drilling




DTH hammers must receive a constant supply of proper rock drill oil to protect the internal components and to provide a good air seal between the hammer's running surfaces for efficient drilling. Roschen recommends the use of Roschen Losonsafe® Rock Drill Oil (RDO) to maintain optimal performance and extend the life of the internal components. The correct consumption of oil is dependent upon the air volume and conditions. Please refer to the lubrication graph below for recommendations. When drilling in wet conditions the normal amount should be doubled. There should be visual evidence of oil around the drill bit shank and within the tube joints when changing tubes.


If using petroleum based rock drill oils, the recommended grade of oil is dependent on the ambient temperature and the operating pressure. As a rule of thumb, ISO320 grade rock drill oil should be used whenever possible as the hammer is a high frequency tool, however, where the pump cannot pump the oil in colder conditions, a lower grade of oil can be used as per the graph below.




Mincon MX5456 Reverse Circulation Hammer 4 1/2" Remet Thread For Exploration Mineral Drilling





Drill Bits



Diameter Face Type Part Number Description No. x Button Dia (inch) Sample holes Weight Approx.
mm inch Outer Face Centre Kgs. Lbs.
137 5 3/8 Concave 5456137C10 5 3/8CC MX5456 BIT 8*5/8 4*5/8 4*9/16 2 17 37.5
137 5 3/8 Hard Formation 5456137H10 5 3/8HF MX5456 BIT 8*5/8 6*5/8 4 * 1/2 2 17 37.5
140 5 1/2 Concave 5456140C10 5 1/2CC MX5456 BIT 8*5/8 4*5/8 4*9/16 2 17 37.5
140 5 1/2 Drop Centre 5456140D10 5 1/2DC MX5456 BIT 8*5/8 4*5/8 4 * 9/16 2 17 37.5
140 5 1/2 Hard Formation 5456140H10 5 1/2HF MX5456 BIT 8*5/8 6*5/8 4 * 1/2 2 17 37.5
143 5 5/8 Drop Centre 5456143D10 5 5/8" MX5456 BIT 8*5/8 4*5/8 4 * 1/2 2 17 37.5
143 5 5/8 Hard Formation 5456143H10 5 5/8" MX5456 BIT 8*5/8 6*5/8 4 * 1/2 2 17 37.5
146 5 3/4 Concave 5456146C10 5 3/4CC MX5456 BIT 8*5/8 4*5/8 4*9/16 2 17 37.5
146 5 3/4 Drop Centre 5456146D10 5 3/4 MX5456DC BIT 8*5/8 4*5/8 4 * 1/2 2 17 37.5
146 5 3/4 Hard Formation 5456146H10 5 3/4HF MX5456 BIT 8*5/8 6*5/8 4 * 1/2 2 17 37.5
152 6 Hard Formation 5456152H10 6 HF MX5456 BIT 8*5/8 6*5/8 4 * 1/2 2 18 39.7
165 6 1/2 Drop Centre 5456165C01 6 1/2 MX5456 collaring bit 8*5/8 4*9/16 4 * 1/2 2 18 39.7
190 7 1/2 Drop Centre 5456190C10 7 1/2 MX5456 collaring bit 16*5/8 4*5/8 4 * 1/2 2 20 44.1
200 8 Drop Centre 5456200C10 8" MX5456 collaring bit 16*5/8 4*5/8 4 * 1/2 2 20 44.1
