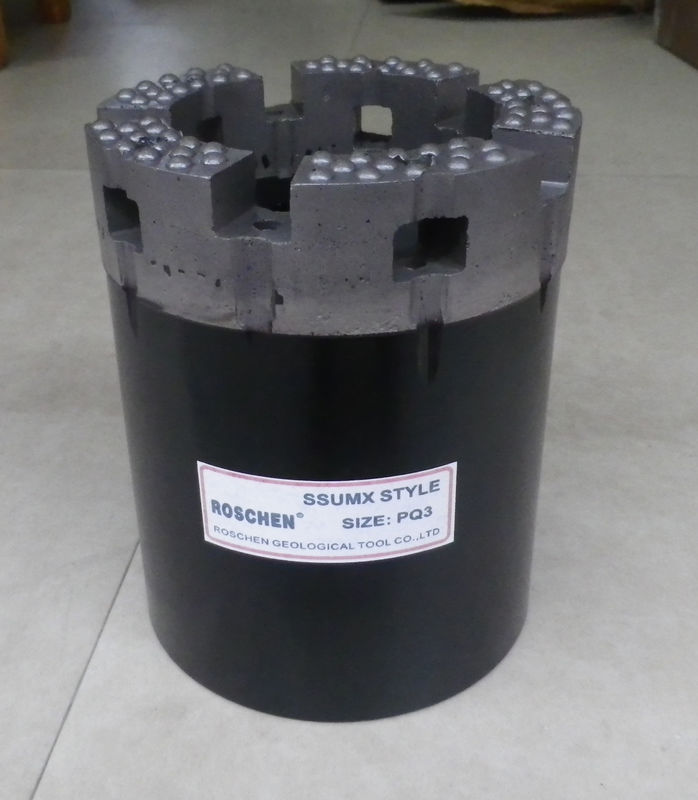

Gold Mining Diamond Core Drill Bits NQ HQ PQ for Diamond Core Drilling
Diamond Impregnated Core Drill Bit BQ NQ HQ PQ
Depending on the range of application as well as the cutting media on the core bits, ROSCHEN makes different types of core bits:
Impregnated Diamond Type
Surface set Diamond Type
Tungsten Carbide Type
PDC Type
PCD Type
Electroplated Diamond Type
Generally, an overall Drilling System consist of core bits, reaming shells, core barrels, drill rods and drilling rig.
Impregnated Diamond Core Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.
Core Bits are used for drilling materials like the rock, concrete, limestone, granite, marble, clay, basalt, schist, quartz etc.
| Sizes Available | |
| Wireline series | Geobor S, WLA, WLB, WLN, WLH, WLP, WLB3, WLN3, WLH3, WLP3, WLN2, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76 |
| T2 / T series | T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T46, T56, T66, T76, T86 |
| TT series | TT 46, TT 56 |
| T6 series | T6 76, T6 86, T6 101, T6 116, T6 131, T6 146 |
| T6S series | T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146 |
| B series | B46, B56, B66, B76, B86, B101, B116, B131, B146 |
| MLC series | NMLC, HMLC, 3C, 4C, 6C, 8C |
| LTK series | LTK48, LTK60 |
| WF series | HWF, PWF, SWF, UWF, ZWF |
| WT series | RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube) |
| WG series | EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube) |
| WM series | EWM, AWM, BWM, NWM, HWM |
| Other sizes | AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, NTW, HTW, T6H, SK6L-146 |
| Chinese standard | 56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm |
| Russian standard | 59, 76, 93, 112, 132, 152 mm |
| Special sizes can also be made as per request | |
Description:
Brief Introduction of Q-Series Diamond Core Bits
The Q-Series diamond bits are cutting tools .They are widely be used for wire-line core drilling. They contain diamond segments bonded to a base material.
The Bits could be impregnated or surface set.
They are widely applied in cutting non-ferrous materials.
Our bits are using high quality diamond materials and also based on exquisite technology.
Features of Q-Series Diamond Bits
1. Wide hardness range. Hardness is from 5 to 55°
2. High drilling speed.
3. Longer service life.
4. Competitive prices.
5. ROSCHEN has 15 years history in manufacturing diamond core bits.
