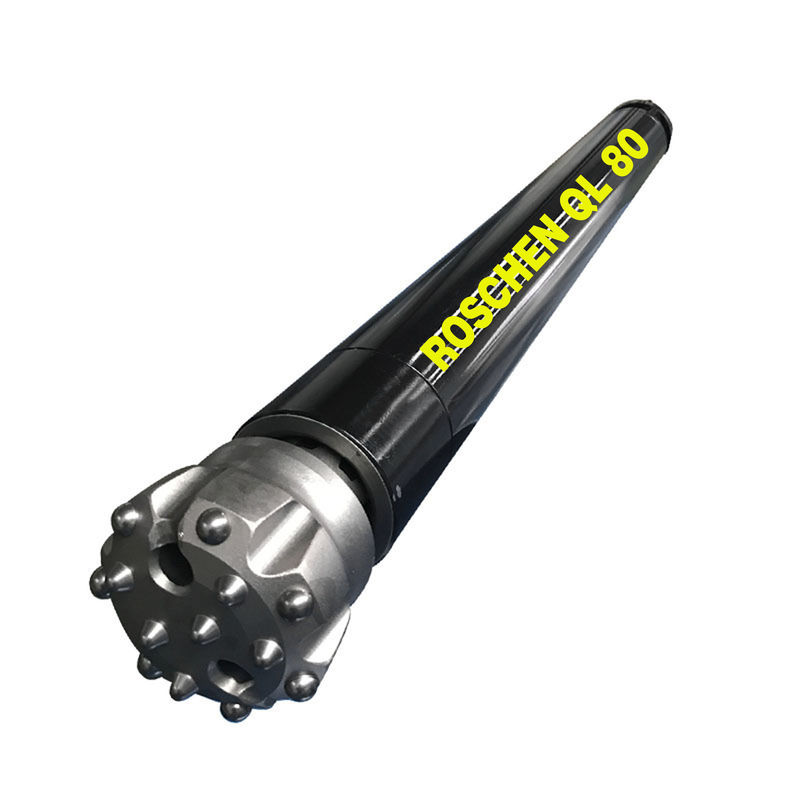

8 Inch Dth Drilling Tools / Reverse Water Hammer Forging And Casting
Dth Drilling Tools Introduction
We manufacture DTH Hammers in different sizes ranging from 1 to 12. These hammers are made corresponding to Drilling Bits to carry out prevalent objectives. These hammers are used in various down the hole operations like bench Drilling. These are valve less hammers with optimized air cycle frequency. These are heavy duty hammers that well at greater depths demanding less air usage, delivering minimum performance loss.
Dth Hammer Drilling Tools Advantages:
1. Highly cost efficient
2. Outstanding engineering and manufacturing
3. Maximum material recovery, up to 98%
4. No cross contamination of samples
5. Locking key style shrouds
6. Handles injection of water, foam, oil, and polymers without performance loss
7. Delivers maximum drilling under water
8. Hammer can be fitted with back reaming subs
9. Additional air lift tubes
Dth Hammer Drilling Tools Specifications:
ROSCHEN DTH Hammers Specifications | |||||||
Hammer Size | Bit Shank | ROSCHEN Code | Connection Thread | Suitable bit | Working pressure | Air consumption | |
2" | BR2 | ROS 11 ROS 22 | RD50 box | ¢70-¢90mm | 0.7-1.75Mpa | 0.7Mpa | 4.5m3/min |
1.0Mpa | 4m3/min | ||||||
1.4Mpa | 5m3/min | ||||||
3" | DHD3.5 | ROS 32 | API 2 3/8" Reg | ¢90-¢110mm | 1.0-1.5Mpa | 1.0Mpa | 4.5m3/min |
COP32/COP34 | |||||||
M30 | 1.5Mpa | 9m3/min | |||||
4" | DHD340 | ROS 34 | API 2 3/8" Reg | ¢110-¢135mm | 1.0-2.5Mpa | 1.0Mpa | 6m3/min |
COP44 | |||||||
QL40 | |||||||
SD4 | 1.8Mpa | 10m3/min | |||||
M40 | 2.4Mpa | 15m3/min | |||||
5" | DHD350 | ROS 52 ROS 54 | API 2 3/8"Reg/API 3 1/2" Reg | ¢135-¢155mm | 1.0-2.5Mpa | 1.0Mpa | 9m3/min |
COP54 | |||||||
QL50 | |||||||
SD5 | 1.8Mpa | 15m3/min | |||||
M50 | 2.4Mpa | 23m3/min | |||||
6" | DHD360 | ROS 62 ROS 64 | API 3 1/2" Reg | ¢155-¢190mm | 1.0-2.5Mpa | 1.0Mpa | 10m3/min |
COP64 | |||||||
QL60 | |||||||
SD6 | 1.8Mpa | 20m3/min | |||||
M60 | 2.4Mpa | 28.5m3/min | |||||
8" | DHD380 | ROS 82 ROS 84 | API 4 1/2" Reg | ¢195-¢254mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min |
COP84 | |||||||
QL80 | 1.8Mpa | 26m3/min | |||||
SD8 | 2.4Mpa | 34m3/min | |||||
M80/M85 | |||||||
10" | SD10 | ROS 100 | API 6 5/8" Reg | ¢254-¢311mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min |
Numa100 | 1.8Mpa | 40m3/min | |||||
ROS 100 | 2.4Mpa | 55m3/min | |||||
12" | DHD1120 | ROS 120 | API 6 5/8" Reg | ¢305-¢445mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
SD12 | 1.8Mpa | 56m3/min | |||||
Numa120 | 2.4Mpa | 78m3/min | |||||
Notes: Any special size of DTH bits will be available by requests. | |||||||
Metzke, Remet thread is available! |
Dth Hammer Drilling Tools Usage
Advantages:
Compared with the oversea brands, our advantages are bellowing:
1. Our products can match over 95% against the original products
2. Price are competitive against the famous brands and best quality against the small factory
FAQ
The information about dth drill bit you may like to know before order:
1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2. Handling time for an order
Based on order quantity, normally it takes 20 days for production.
in 3 working days after receiving the advance payment
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time
6. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B. Our sales team and Technical Support will response for your question within 24 hours through skype: ROSCHEN.TOOL and WhatsApp/Wechat: +86-13764195009
C. Free replacement will provide once the failure confirmed caused or our product quality.
