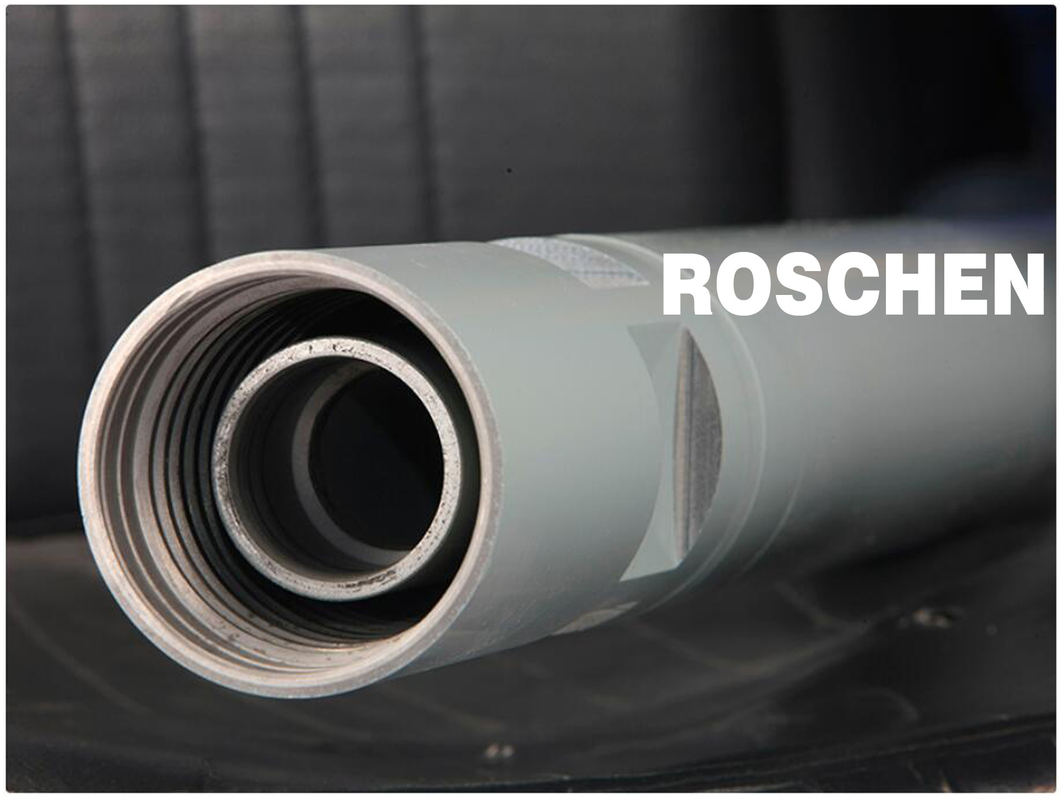

Geothermal DTH Drill Pipe Dual Wall / Rock Drilling Tool Low Carbon Steel Material
Negotiable
MOQ
Negotiable
Price
Geothermal DTH Drill Pipe Dual Wall / Rock Drilling Tool Low Carbon Steel Material
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Germany
Brand Name: ROSCHEN
Certification: ISO
Model Number: 4 5 6"
High Light:

Geothermal DTH Drill Pipe

,

Carbon Steel Wall Rock Drilling Pipe

,

Dual Wall Drill Pipes

Payment & Shipping Terms
Packaging Details: Polywood case
Supply Ability: 2000 pcs
Specifications
Name: DTH Drill Pipe
Origin: China
Hammer: DTH Hammer Button Bits
Use: Well Drilling
Material: Low Carbon Steel
Color: Customized
Product Description

Geothermal DTH Drill Pipe / Rock Drilling Tool Low Carbon Steel Material



Reverse Circulation (RC) Drill Pipe Introduction

Reverse Circulation (RC) drilling is used to collect rock samples quickly and efficiently using a large rotary drill and air compressor. The high speed and lower cost per meter of RC drilling makes it ideal for obtaining mineral samples in the early phases of an exploration project.

RC hammers



RC drilling hammer Size: 4",5",6", 8"
RC drilling hole Diameter: 114-190
Shank: HRC range

DTH Drill Pipe Features:


1. Manufactured using premium hardened metals for long life;
2. Maximum material recovery, up to 98%;
3. No cross contamination of samples;
4. Handles injection of water, foam, oil, and polymers without performance loss;
5. Delivers maximum drilling under water

DTH Drill Pipe Technical Specifications:



REVERSE CIRCULATION DRILL ROD SPECIFICATIONS
Thread Type Remet Remet Remet Metzke Metzke Matrix Matrix
Rod O.D. 3 1/2" 4" 4 1/2" 4" 4 1/2" 4" 4 1/2"
Outer Tube O.D. 88.9mm 101.7mm 114.3mm 101.7mm 114.3mm 101.7mm 114.3mm
Outer Tube I.D. 81.8mm 94.6mm 107.2mm 94.6mm 107.2mm 94.6mm 107.2mm
Outer Tube W.T. 5.3mm 7.1mm 7.1mm 7.1mm 7.1mm 7.1mm 7.1mm
Inner Tube O.D. 38.1mm 50.8mm 63.5mm 50.8mm 63.5mm 50.8mm 63.5mm
Inner Tube I.D. 32.6mm 45.3mm 58mm 45.3mm 58mm 45.3mm 58mm
Inner Tube W.T. 5.5mm 5.5mm 5.5mm 5.5mm 5.5mm 5.5mm 5.5mm
Spanner Flat 90mm 90mm 90mm 90mm 90mm 90mm 90mm
Weight 3.0m 75kg. 75kg. 95kg. 75kg. 95kg. 75kg. 95kg.
Weight 6.0m 120kg. 150kg. 168kg. 150kg. 168kg. 150kg. 168kg.





ROSCHEN RC Hammers Specifications
Hammer Size Hammer Bit Shank ROSCHEN Code Hole Range (mm) External Diameter (mm) Length (without bit) mm Weight (N.W.) kgs Connection Thread Working Pressure
3" RE531 RE531 ROS RC 30 84-100 81 1069 29 3“ Remet 1.0-3.0Mpa
3" RE035 RE035 ROS RC 35 84-105 85 1075 35 3“ Remet 1.0-3.0Mpa
4 1/2" RE004 RE004 ROS RC 40 111-127 107 1252 52 3.5"-4" Remet 4" Metzke 1.0-3.0Mpa
4 1/2" RE540 RE540 ROS RC 45 111-127 107 1252 52 3.5"-4" Remet 4" Metzke 1.0-3.0Mpa
5" RE040 RE040 ROS RC 50 113-130 109.5 1191 57 3.5"-4" Remet 4" Metzke 1.0-3.0Mpa
5" RE542 RE542 ROS RC 50 113-130 109.5 1191 57 3.5"-4" Remet 4" Metzke 1.0-3.0Mpa
5" RE543 RE543 ROS RC 50 120-135 116 1191 62 3.5"-4" Remet 4" Metzke 1.0-3.0Mpa
5" RE545 RE545 ROS RC 50 122-135 117.5 1261 65 4"-4.5"Remet 4"-4.5" Metzke 1.5-3.5Mpa
5 1/2" RE547 RE547 ROS RC 55 130-146 124.5 1270 71 4.5" Remet 4.5" Metzke 1.5-3.5Mpa
5 1/2" RE052 RE052 ROS RC 55 130-146 124.5 1270 71 4.5" Remet 4.5" Metzke 1.5-3.5Mpa
5 3/4" RE054 RE054 ROS RC 55 130-146 124.5 1270 85 4.5" Remet 4.5" Metzke 1.5-3.5Mpa
5 3/4" RE140 RE140 ROS RC 55 130-146 124.5 1270 85 4.5" Remet 4.5" Metzke 1.5-3.5Mpa
5" PR40 PR40 ROS RC 50 124-142 120.5 1362 80.5 3.5"-4.5" Remet 3.5"-4.5" Metzke 1.5-3.5Mpa
5 1/2" PR52 PR52 ROS RC 55 126-142 121 1227 68.5 4"-4.5" Remet 4"-4.5" Metzke 1.5-3.5Mpa
5 1/2" PR52R PR52/PR52R ROS RC 55 130-146 124 1225 65 4"-4.5" Remet 4"-4.5" Metzke 1.5-3.5Mpa
5 1/2" PR54 PR54 ROS RC 55 135-150 130 1294 84.5 4.5" Remet 4.5" Metzke 1.5-3.5Mpa
6" MX5456 MX5456 ROS RC 60 136-150 132 1362 90 4.5" Remet 4.5" Metzke 1.5-3.5Mpa
6"~6 1/2" RC62/RC62R RC62/RC62R ROS RC 65 152-190 146 1320 110 As Request 1.5-3.5Mpa
8" RC82/RC82R RC82/RC82R ROS RC 80 190-250 180 1395 185 As Request 1.5-3.5Mpa
10" RC100/RC100R RC100/RC100R ROS RC 100 250-370 240 1528 328 As Request 1.5-3.5Mpa
Notes:
Metzke, Remet thread is available!
Any special type shank of RC Hammer will be available by requests.



DTH Hammer Details



Geothermal DTH Drill Pipe Dual Wall / Rock Drilling Tool Low Carbon Steel Material 0
