Rotary Drilling Reverse Circulation Hammer PR52 PR54 Hammer Used To Collect Rock Samples
Negotiable
MOQ
Negotiate
Price
Rotary Drilling Reverse Circulation Hammer PR52 PR54 Hammer Used To Collect Rock Samples
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: GERMANY
Brand Name: ROSCHEN
Certification: ISO
Model Number: 3 ~ 5 "
High Light:

button bits rock drilling

,

mincon hammers

Payment & Shipping Terms
Packaging Details: Bundles
Supply Ability: 1000000 pcs
Specifications
Name: Reverse Circulation Hammer
Use: Coal Mining,Quarrying
Processing Type: Forging,Casting
Material: Carbon Steel
Color: Request
Advantage: High Performance
Product Description

Rotary Drilling Reverse Circulation Hammer Used To Collect Rock Samples Quickly And Efficiently



Reverse Circulation Hammer Introduction



REVERSE CIRCULATION PERFORMANCE TOOLING

Reverse circulation (RC) drilling is used to collect rock samples quickly and efficiently using a large rotary drill and air compressor. The higher penetration rate and lower cost per meter of RC drilling make it ideal for obtaining mineral samples in the early phases of an exploration project.

REVERSE CIRCULATION DRILLING

Reverse circulation (RC) drilling uses a dual-walled drill rod with a cutting tool, typically a pneumatic reciprocating hammer, to produce a bore hole in a rock formation and to retrieve rock chips and cuttings from the bottom of the hole. Reverse circulation is achieved by blowing air down the rods in the annulus between the inner and outer tube, causing differential pressure that creates lift for cuttings that travel up the inner tube to the surface. RC drilling has proven itself as a fast and economical means to collect mineral samples and has grown in popularity since its introduction in Germany in the 1960s.


SWIVELS
Used in either pure RC drilling or conventional Down The Hole (DTH) methods, Roschen swivels are a cost effective alternative to conventional top and bottom swivel operation; and with only one set of connections, they provide additional safety benefits and lower maintenance requirements.


RC DRILL STRING

The RC drill string is designed to deliver high pressure and high volume air to the cutting tool at the bottom of the bore hole. Once a drill rig is selected, subs and adapters make it possible to connect a drill string to the drill head, in many different combinations depending on the choice of tools used.


Reverse Circulation Hammer FEATURES:

Reverse Circulation Drilling Rods
Roschen offers drill rods with Faber, Matrix, Metzke, and Remet type threads for complete compatibility with all systems. Our robust drill pipe provides 360° of contact from inner tube collar to outer tube and is designed to be easily replaced in the field, minimizing costly downtime.


Faber
Faber-type thread is one of the recognized standard threads used in reverse circulation drilling. Roschen Faber-type drill pipe features high-grade alloy tool joints with heat treated pins for superior resistance to damage, high strength precision mid-bodies for long life and ease of assembly, and field replaceable inner tube assemblies. Faber type thread uses a four threads per inch design.


Matrix
Matrix-type thread is another recognized standard in RC drilling. Roschen Matrix-type drill pipe features high-grade alloy tool joints with heat treated pins for superior resistance to damage, high strength precision mid-bodies for long life and ease of assembly. In Matrix type rod, the inner tube can be fixed with rubber stabilizers or field replaceable with steel stabilizers. Matrix-type RC pipe features sealing o-rings on the pin portion of the inner tube assembly, providing optimal inner tube sealing and airflow. Matrix-type thread uses a coarser, more durable three threads per inch design.

Metzke
Metzke-type thread is one of the recognized standard threads used in reverse circulation drilling. Roschen Metzke-type drill pipe features high-grade alloy tool joints with heat treated pins for superior resistance to damage, high strength precision midbodies, for long life and ease of assembly, and field replaceable inner tube assemblies with special joints that offer 360-degree stabilization with minimal flow restriction. Metzke-type thread uses a four threads per inch design and more robust 90° tool joint mating surface.


Remet
Remet-type thread is another recognized standard in RC drilling. Roschen Remet-type drill pipe features high-grade alloy tool joints with heat treated pins for superior resistance to damage, high strength precision midbodies, for long life and ease of assembly, and field replaceable inner tube assemblies with special joints offer 360-degree stabilization with minimal flow restriction. Remet-type RC pipe features sealing o-rings on the pin portion of the inner tube assembly, providing optimal inner tube sealing and airflow. Remet-type thread uses a coarser, more durable three threads per inch design.



Reverse Circulation Hammer Parameters



ROSCHEN RC Hammers Specifications
Hammer Size Hammer Bit Shank ROSCHEN Code Hole Range (mm) External Diameter (mm) Length (without bit) mm Weight (N.W.) kgs Connection Thread Working Pressure
3" RE531 RE531 ROS RC 30 84-100 81 1069 29 3“ Remet 1.0-3.0Mpa
3" RE035 RE035 ROS RC 35 84-105 85 1075 35 3“ Remet 1.0-3.0Mpa
4 1/2" RE004 RE004 ROS RC 40 111-127 107 1252 52 3.5"-4" Remet 4" Metzke 1.0-3.0Mpa
4 1/2" RE540 RE540 ROS RC 45 111-127 107 1252 52 3.5"-4" Remet 4" Metzke 1.0-3.0Mpa
5" RE040 RE040 ROS RC 50 113-130 109.5 1191 57 3.5"-4" Remet 4" Metzke 1.0-3.0Mpa
5" RE542 RE542 ROS RC 50 113-130 109.5 1191 57 3.5"-4" Remet 4" Metzke 1.0-3.0Mpa
5" RE543 RE543 ROS RC 50 120-135 116 1191 62 3.5"-4" Remet 4" Metzke 1.0-3.0Mpa
5" RE545 RE545 ROS RC 50 122-135 117.5 1261 65 4"-4.5" Remet 4"-4.5" Metzke 1.5-3.5Mpa
5 1/2" RE547 RE547 ROS RC 55 130-146 124.5 1270 71 4.5" Remet 4.5" Metzke 1.5-3.5Mpa
5 1/2" RE052 RE052 ROS RC 55 130-146 124.5 1270 71 4.5" Remet 4.5" Metzke 1.5-3.5Mpa
5 3/4" RE054 RE054 ROS RC 55 130-146 124.5 1270 85 4.5" Remet 4.5" Metzke 1.5-3.5Mpa
5 3/4" RE140 RE140 ROS RC 55 130-146 124.5 1270 85 4.5" Remet 4.5" Metzke 1.5-3.5Mpa
5" PR40 PR40 ROS RC 50 124-142 120.5 1362 80.5 3.5"-4.5" Remet 3.5"-4.5" Metzke 1.5-3.5Mpa
5 1/2" PR52 PR52 ROS RC 55 126-142 121 1227 68.5 4"-4.5" Remet 4"-4.5" Metzke 1.5-3.5Mpa
5 1/2" PR52R PR52/PR52R ROS RC 55 130-146 124 1225 65 4"-4.5" Remet 4"-4.5" Metzke 1.5-3.5Mpa

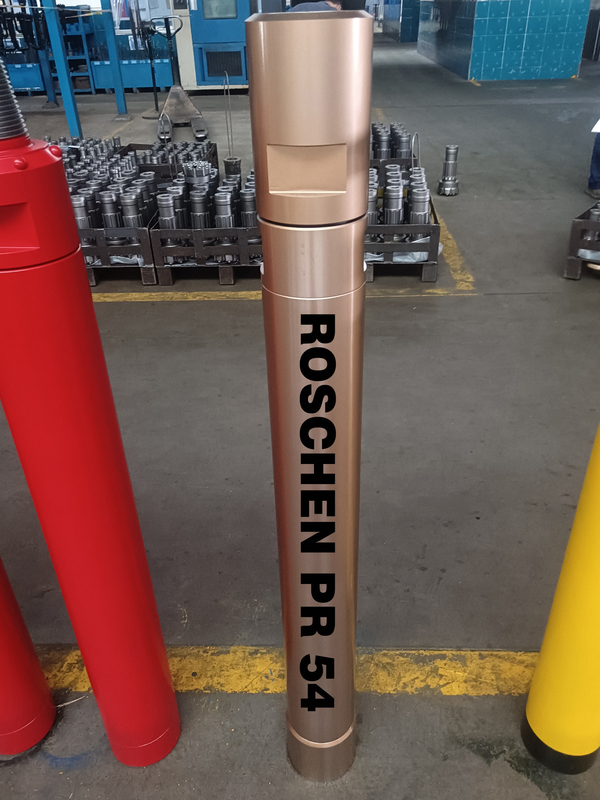

5 1/2" PR54 PR54 ROS RC 55 135-150 130 1294 84.5 4.5" Remet 4.5" Metzke 1.5-3.5Mpa
6" MX5456 MX5456 ROS RC 60 136-150 132 1362 90 4.5" Remet 4.5" Metzke 1.5-3.5Mpa
6"~6 1/2" RC62/RC62R RC62/RC62R ROS RC 65 152-190 146 1320 110 As Request 1.5-3.5Mpa
8" RC82/RC82R RC82/RC82R ROS RC 80 190-250 180 1395 185 As Request 1.5-3.5Mpa
10" RC100/RC100R RC100/RC100R ROS RC 100 250-370 240 1528 328 As Request 1.5-3.5Mpa
Notes:
Metzke, Remet thread is available!
Any special type shank of RC Hammer will be available by requests.





Reverse Circulation Hammer Usage



Rotary Drilling Reverse Circulation Hammer PR52 PR54 Hammer Used To Collect Rock Samples 0
