Drilling Equipment Reverse Circulation Hammer RE040 Hammer Carbon Steel Alloy Steel

Negotiable
MOQ
Negotiate
Price
Drilling Equipment Reverse Circulation Hammer RE040 Hammer Carbon Steel Alloy Steel
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Reverse Circulation Hammer
Model: RC50 RC Hammer
Material: Carbon Steel , Alloy Steel
Processing Type: Forging
Using: Ore Mining, Geothermal Drilling
Application: Reverse Circulation Hammer Drilling
Series: Atlas Copco Secoroc RC50 Hammer
Series Model: Secoroc RC45 Hammer
High Light:

RE040 RC Hammer

,

mincon RC hammers

,

RC drilling hammer

Basic Infomation
Place of Origin: Germany
Brand Name: ROSCHEN
Certification: ISO,CE
Model Number: RC 50
Payment & Shipping Terms
Packaging Details: Wooden box
Supply Ability: 800 sets
Product Description

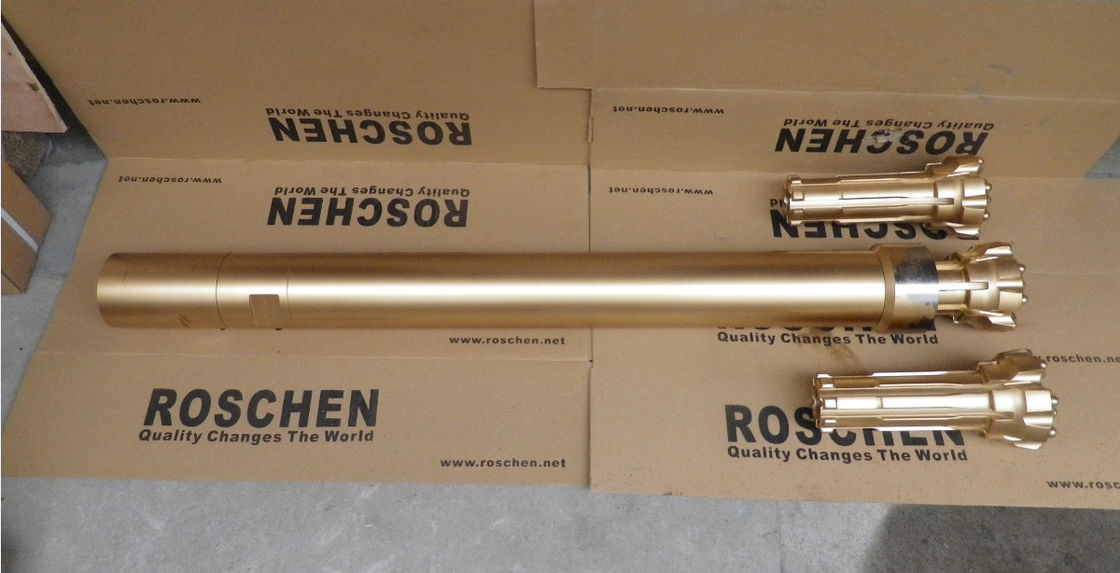

Drilling Equipment Reverse Circulation Hammer RE040 Hammer Carbon Steel Alloy Steel





Drilling Equipment Reverse Circulation Hammer Carbon Steel , Alloy Steel



Reverse Circulation Hammer Introduction



1. These threaded button bits can meet different drilling requirements in all rock formations. We can offer special designs according to customer's requirements for specific work situation.



2. The button bits can transmit intensive impact energy into the rock with the least loss of energy.



3. We select high-strength structure alloy steel and carbides with best quality to ensure the drill body and alloy body can achieve uniform wear,thus the service life of bits will be increased.



4. long service life



Raw Material



Steel:

first class special alloy steel with high strength, heat resistance and wearable



Carbide:

The best tungsten carbides from China are commonly applied.

Tungsten carbide from European is also available.





Reverse Circulation Hammer Feature:


Heavy Duty and Lightweight Bit Design

Larger shank spline cross section reduces risk of shank-off through splines.
Small and lightweight bit design makes handling the bit safer.



High Performance and Reliable Hammer Design

Valved drive stroke delivers maximum impact, power, and efficiency versus fixed piston port designs.
Uniquely heat treated steel valve technology eliminates the risk of melting that is associated with plastic valves, making it more reliable and longer lasting.


Reliable and Durable Collection Tube

Extra hard material is durable and extends the life of the collection tube.
Isolation mounts prevents hammer vibration from interfering with the collection tube.





ROSCHEN RC Hammers Specifications
Hammer Size Hammer Bit Shank ROSCHEN Code Hole Range (mm) External Diameter (mm) Length (without bit) mm Weight (N.W.) kgs Connection Thread Working Pressure
3" RE531 RE531 ROS RC 30 84-100 81 1069 29 3“ Remet 1.0-3.0Mpa
3" RE035 RE035 ROS RC 35 84-105 85 1075 35 3“ Remet 1.0-3.0Mpa
4 1/2" RE004 RE004 ROS RC 40 111-127 107 1252 52 3.5"-4" Remet 4" Metzke 1.0-3.0Mpa
4 1/2" RE540 RE540 ROS RC 45 111-127 107 1252 52 3.5"-4" Remet 4" Metzke 1.0-3.0Mpa
5" RE040 RE040 ROS RC 50 113-130 109.5 1191 57 3.5"-4" Remet 4" Metzke 1.0-3.0Mpa
5" RE542 RE542 ROS RC 50 113-130 109.5 1191 57 3.5"-4" Remet 4" Metzke 1.0-3.0Mpa
5" RE543 RE543 ROS RC 50 120-135 116 1191 62 3.5"-4" Remet 4" Metzke 1.0-3.0Mpa
5" RE545 RE545 ROS RC 50 122-135 117.5 1261 65 4"-4.5" Remet 4"-4.5" Metzke 1.5-3.5Mpa
5 1/2" RE547 RE547 ROS RC 55 130-146 124.5 1270 71 4.5" Remet 4.5" Metzke 1.5-3.5Mpa
5 1/2" RE052 RE052 ROS RC 55 130-146 124.5 1270 71 4.5" Remet 4.5" Metzke 1.5-3.5Mpa
5 3/4" RE054 RE054 ROS RC 55 130-146 124.5 1270 85 4.5" Remet 4.5" Metzke 1.5-3.5Mpa
5 3/4" RE140 RE140 ROS RC 55 130-146 124.5 1270 85 4.5" Remet 4.5" Metzke 1.5-3.5Mpa
5" PR40 PR40 ROS RC 50 124-142 120.5 1362 80.5 3.5"-4.5" Remet 3.5"-4.5" Metzke 1.5-3.5Mpa
5 1/2" PR52 PR52 ROS RC 55 126-142 121 1227 68.5 4"-4.5" Remet 4"-4.5" Metzke 1.5-3.5Mpa
5 1/2" PR52R PR52/PR52R ROS RC 55 130-146 124 1225 65 4"-4.5" Remet 4"-4.5" Metzke 1.5-3.5Mpa
5 1/2" PR54 PR54 ROS RC 55 135-150 130 1294 84.5 4.5" Remet 4.5" Metzke 1.5-3.5Mpa
6" MX5456 MX5456 ROS RC 60 136-150 132 1362 90 4.5" Remet 4.5" Metzke 1.5-3.5Mpa
6"~6 1/2" RC62/RC62R RC62/RC62R ROS RC 65 152-190 146 1320 110 As Request 1.5-3.5Mpa
8" RC82/RC82R RC82/RC82R ROS RC 80 190-250 180 1395 185 As Request 1.5-3.5Mpa
10" RC100/RC100R RC100/RC100R ROS RC 100 250-370 240 1528 328 As Request 1.5-3.5Mpa
Notes:
Metzke, Remet thread is available!
Any special type shank of RC Hammer will be available by requests.



Drilling Equipment Reverse Circulation Hammer RE040 Hammer Carbon Steel Alloy Steel 0



FAQ


Terms & Conditions of Ordering:

Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.


Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damage during transportation. Also we can customize package according to your special requests.


Production time:
Generally need 15-25 days
