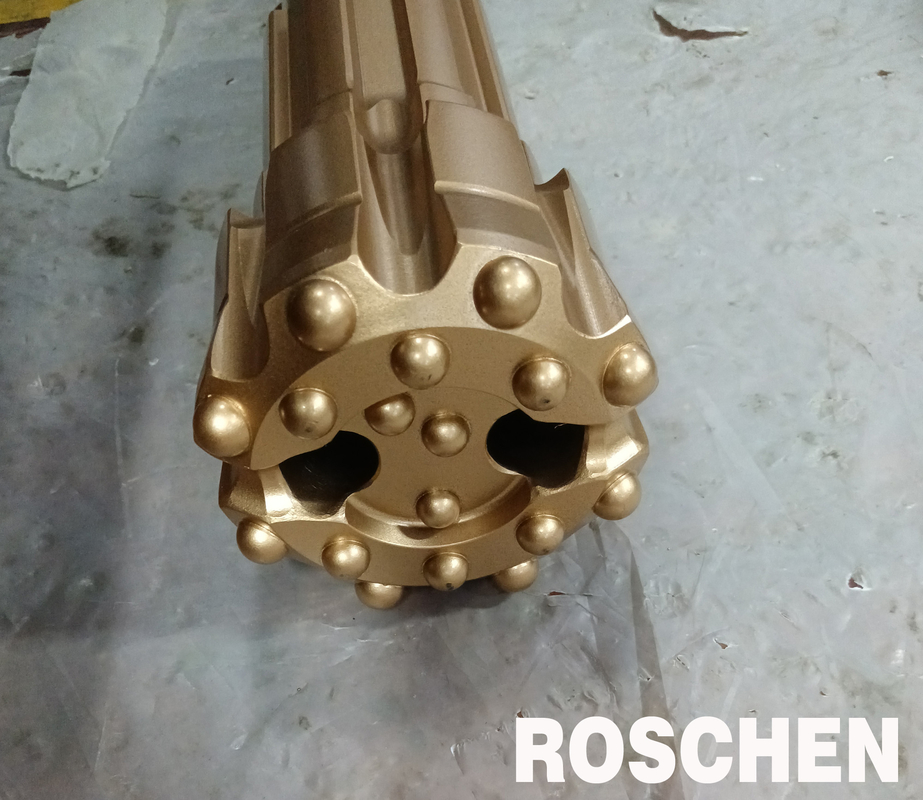

Coal Mining Reverse Circulation Hammer With Lightweight Bit Design
Reverse Circulation Hammer Features
1. Although the process can be costly the overall drilling costs can actually be reduced by up to 40% when using reverse circulation drilling.
2. Results from reverse circulation drilling can be revealed much faster as the completion of the drilling process is done quickly.
3. The method is safe to use and requires fewer man hours.
4. Reverse circulation drilling requires less water than other mining methods.
5. Reverse circulation drilling is simple and easy.
6. Samples can be easily arranged into boxes stating where the sample was collected and at what depth the sample was collected which will help those studying the samples to pinpoint exactly where the mineral deposit is located. This will help a mining company or a group of researchers to quickly and easily locate the exact area and depth from which the sample was discovered.
Reverse Circulation Hammer Parameters
| Reverse circulation (RC) Hammer Quick Reference | ||
| Size | RC Hammer Model | ROSCHEN RC Hammer Model |
| 3" | RC Hammer RE035 | ROS RC 35 |
| 4-4 1/2" | RC Hammer RE004 | ROS RC 40 |
| RC Hammer RE540 | ROS RC 45 | |
| 5" | RC Hammer RE040 | ROS RC 50 |
| RC Hammer RE542 | ROS RC 50 | |
| RC Hammer RE543 | ROS RC 50 | |
| RC Hammer RE545 | ROS RC 50 | |
| 5-5 1/2" | RC Hammer RE052 | ROS RC 55 |
| RC Hammer RE547 | ROS RC 55 | |
| 5 1/2-5 3/4" | RC Hammer RE054 | ROS RC 55 |
| RC Hammer RE140 | ROS RC 55 | |
| REVERSE CIRCULATION DRILL ROD SPECIFICATIONS | |||||||
| Thread Type | Remet | Remet | Remet | Metzke | Metzke | Matrix | Matrix |
| Rod O.D. | 3 1/2" | 4" | 4 1/2" | 4" | 4 1/2" | 4" | 4 1/2" |
| Outer Tube O.D. | 88.9mm | 101.7mm | 114.3mm | 101.7mm | 114.3mm | 101.7mm | 114.3mm |
| Outer Tube I.D. | 81.8mm | 94.6mm | 107.2mm | 94.6mm | 107.2mm | 94.6mm | 107.2mm |
| Outer Tube W.T. | 5.3mm | 7.1mm | 7.1mm | 7.1mm | 7.1mm | 7.1mm | 7.1mm |
| Inner Tube O.D. | 38.1mm | 50.8mm | 63.5mm | 50.8mm | 63.5mm | 50.8mm | 63.5mm |
| Inner Tube I.D. | 32.6mm | 45.3mm | 58mm | 45.3mm | 58mm | 45.3mm | 58mm |
| Inner Tube W.T. | 5.5mm | 5.5mm | 5.5mm | 5.5mm | 5.5mm | 5.5mm | 5.5mm |
| Spanner Flat | 90mm | 90mm | 90mm | 90mm | 90mm | 90mm | 90mm |
| Weight 3.0m | 75kg. | 75kg. | 95kg. | 75kg. | 95kg. | 75kg. | 95kg. |
| Weight 6.0m | 120kg. | 150kg. | 168kg. | 150kg. | 168kg. | 150kg. | 168kg. |
Please contact your Roschen representative for additional details, and ordering assistance.
