Mach 50 Mach 60 Mach 80 DTH Hammer
1set
MOQ
Negotiate
Price

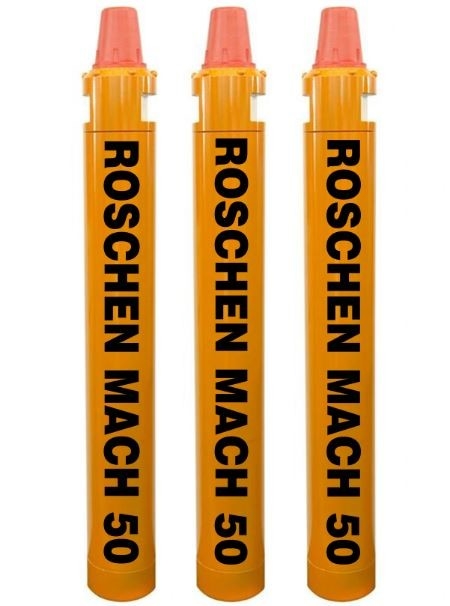

Mach 50 Mach 60 Mach 80 DTH Hammer
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: ROSCHEN
Certification: API
Model Number: Mach 50 , Mach 60, Mach 80
High Light:

Mach 50 DTH Hammer

,

Mach 60 DTH Hammer

,

Mach 80 DTH Hammer

Payment & Shipping Terms
Packaging Details: Wooden Box
Supply Ability: 1000 sets/M
Specifications
Product Description



Mach 50 Mach 60 Mach 80 DTH Hammer



5 Mach 50

The Mach 50 is a general purpose hammer suitable for all rock conditions at a wide range of air pressures.

With a proven track record of performance and reliability, the Mach 50 operates at a high frequency which makes it ideal for broken unstable ground conditions.

The hammer is fitted with a reversible cylinder to prolong the service life, it also requires only a few tools to service and maintain.



Hammer Overview
Hammer Type Mach 50
Part Number 600046
Shank Halco 5
Thread Connection 3 1/2" API Reg Pin Up
Minimum Bit Diameter 127mm
Hammer Flat Size 90mm(3.544")
Weight 54Kg(119.0lbs)
Outside Diameter 114mm(4.5inch)
Length (shoulder to shoulder) 1012mm(4.0")
Minimum weight on Bit 400Kg(900 lbs)





6 Mach 60

The Mach 60 is a general purpose hammer suitable for all rock conditions at a wide range of air pressures.

With a proven track record of performance and reliability, the Mach 60 operates at a high frequency which makes it ideal for broken unstable ground conditions. The hammer is fitted with a reversible cylinder to prolong the service life, it also requires only a few tools to service and maintain.



Hammer Overview
Hammer Type Mach 60
Part Number 600035
Shank Halco 6
Thread Connection 3 1/2" API Reg Pin Up
Minimum Bit Diameter 152mm
Hammer Flat Size 90mm(3.54")
Weight 89Kg(196.2lbs)
Outside Diameter 138mm(5.43inch)
Length (shoulder to shoulder) 1095mm(3.54")
Minimum weight on Bit 500Kg(1100 lbs)





8 Mach 80

The Mach 60 is a general purpose hammer suitable for all rock conditions at a wide range of air pressures.

With a proven track record of performance and reliability, the Mach 60 operates at a high frequency which makes it ideal for broken unstable ground conditions. The hammer is fitted with a reversible cylinder to prolong the service life, it also requires only a few tools to service and maintain.



Hammer Overview
Hammer Type Mach 80
Part Number 600310
Shank Halco 8
Thread Connection 4 1/2” API Reg Pin
Minimum Bit Diameter 203mm (8”)
Hammer Flat Size 156 mm (6.142”)
Weight 175 Kg (385.80 lbs)
Outside Diameter 182 mm (7.165”)
Length (shoulder to shoulder) 1254 mm (49.37”)
Minimum weight on Bit 800 Kg (1760 lbs)
