400m hydraulic Crawler Mounted Deep Water Well Drilling Rig Machine
1 set
MOQ
Negotiate
Price
400m hydraulic Crawler Mounted Deep Water Well Drilling Rig Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: ISO
Model Number: ROS-400
High Light:

hydraulic drilling rig

,

hydraulic crawler drill rig machine

,

truck mounted drilling rig

Payment & Shipping Terms
Packaging Details: Container
Supply Ability: 1000 set
Specifications
Product Description

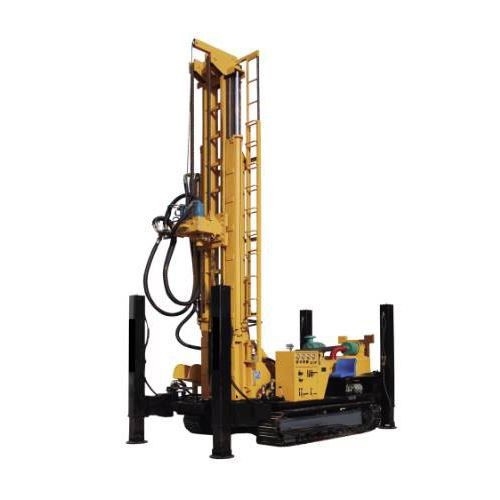

400m hydraulic Crawler Mounted Deep Water Well Drilling Rig Machine




400m hydraulic Crawler Mounted Deep Water Well Drilling Rig Machine 0



Introduction of hydraulic crawler type drilling rig

The crawler type hydraulic down the hole drilling rig adopts diesel engine (motor) - hydraulic oil pump unit to provide power for the hydraulic motor of the drilling rig to walk, rotate, push and lift, and position the swing angle of oil cylinder. Only the DTH impactor consumes compressed air during drilling operation. Compared with all pneumatic drilling rig, energy (fuel or electricity) consumption is saved by 40% - 50%. ROS-Y400 crawler type hydraulic down the hole drilling rig is mainly used in open pit mining, hydropower engineering, road construction and other rock engineering drilling operations.





ROS-Y400 Hydraulic Crawler type water well drilling rig


ROS-Y400 multi-function hydraulic well drilling rig series mainly applied to industrial and civil drilling and ground temperature drilling. It has the advantages of large diameter of drilling hole, deep drilling, fast footage, and high efficiency.




Main Features:


1. Crawler Driving Gear: the designed motor with a speed reduction gearbox prolongs the service life

2. Hydraulic oil pump: It uses parallel gearbox (which is a patent) to separate oil pump monomer, supply adequate power and distribute reasonable. The hydraulic system adopts unique design, which is easy to maintain and can lower the maintenance cost.

3. Rotary head device: integrated casting gearbox , dual motor power, large torque, durable, small maintenance costs

4. Drill chassis: the professional excavator chassis provides durability and strong load capacity, the wide roller chain plate causes small damage to the concrete pavement

5. Lifting force: patent designed composite arm with small size yet long stroke, double cylinder lifting, strong lifting capacity

6. The lift arm is installed with a limiter to protect cylinder and ensure the safety of work

7. Each hydraulic tubing is covered with a protective shell to effectively extend the service life of pipeline.




ROS-Y400 Crawler type water well drilling Rig


ROS-Y400 Crawler type water well drilling Rig
Model ROS-Y400
Rig weight (T) 10
Hole Diameter(mm) 140-350
Drilling Depth(m) 400
One-time advance length(m) 6.6
Walking speed(km/h) 2.5
Climbing angles(Max.) 30
Equipped capacitor(KW) 95
using air pressure(mpa) 1.7-3.5
air consumption(m³/min) 17-35
drill pipe diameter(mm) Ф76, Ф89, Ф102
drill pipe length(m) 1.5; 2.0; 3.0
Rig lifting force(T) 24
swing speed(rpm) 45-115
swing torque(Nm) 8500-10000
Dimension(mm) 5200 X 2000 X 2780








ROSCHEN GROUP LIMITED is professional in manufacturing and supplying quality 400m crawler type water well drilling rig as one of the leading manufacturers and suppliers in China. We now bring you high quality 400m crawler type water well drilling rig for sale, competitive in its excellent performance and high precision. If you have any interests, Please contact us via our email: roschen@roschen.com
