Drilling Rig Machine
>
|
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | ROS-600 |

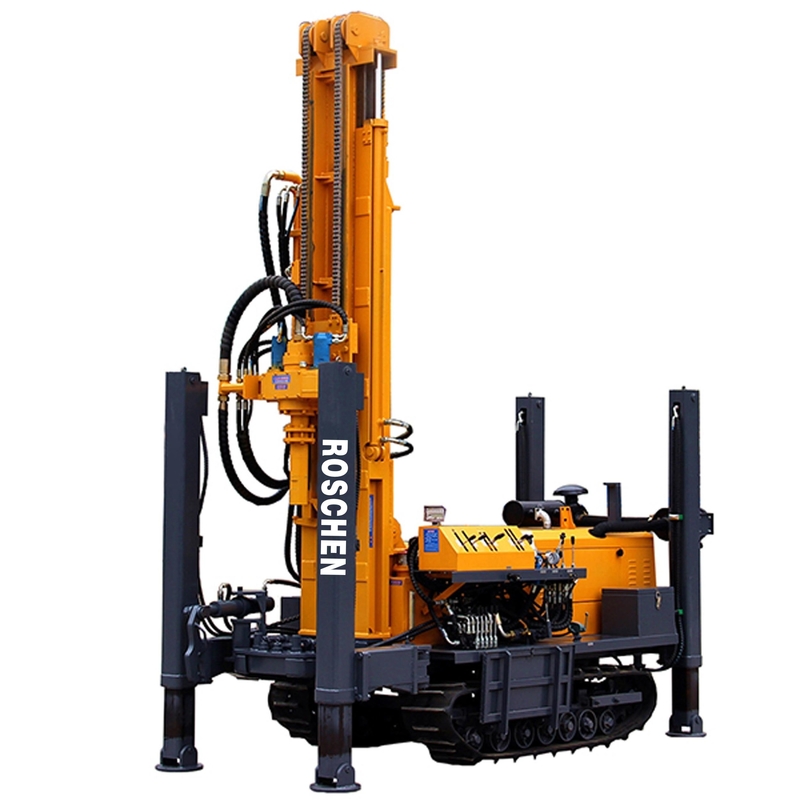

600 meters Water Well Hydraulic Crawler Drilling Rig for fast drilling
Well drilling rigs
We have a complete line of hydraulic top-head drive drills, designed for water well drilling and other applications requiring air or mud rotary, as well as down-the-hole hammer drilling methods.
Stable, stout drill rig powers through tough sites
Drillers seeking versatile water well drill rigs with power and reliability to tackle water well drilling, geothermal drilling, and cathodic protection drilling choose ROS-600 water well drill rigs for speed and ease combined with reduced downtime. Additional advantages of the water well drill rigs for sale include:
1. upgraded head-feed system with adjustable rollers, rotary head side shift, and increased pullback
2. enhanced ease created by durable, mechanical controls and secure routing of hydraulic hoses
3. increased production capability provided by dual winches and rod loader with helper side controls OR rod carousel with ability to back feed
| Roschen Hydraulic Crawler Drilling Rig Technical Paramters | |
| Model | ROS-600 |
| Drilling Depth (M) | 800 |
| RECOMMENDED DRILL PIPE DIAMETER (MM) | BTW/NTW/HTW/PTW/BQ/HQ/NQ/PQ |
| RECOMMENDED DRILL PIPE LENGTH (M) | 1.5/2/3 |
| Maximum stroke of power head (M) | 2.4/4 |
| Engine brand (optional) | Weichai, Yuchai |
| Engine power (kw) (optional) | 129 (six-cylinder), with Turbo Charger |
| Rotation torque(N.m) | 1600-3200 |
| Swing speed (rpm) | 300-1600 |
| Maximum Lifting Force (T) | 20 |
| Mode of movement | Hydraulic Crawler track/remote control |
| Walking speed (km/h) | 2.5 |
| Gradeability (Max) | 35 |
| Dimensions (mm) | 4000*2000*2300 |
| Weight (T) | 7.3 |
ROS-600 Water Well Drilling Rig
water and gas dual-purpose crawler type 800 meters deep water drilling features:
1. Equipped with a 129KW Cummins brand 6-cylinder turbo engine with strong power and long service life;
2. Patented design compound boom, double oil cylinder lift, strengthen the tower;
3. (Italy imported oil pump) 3 oil pumps, equipped with foam pump, winch, multi-function generator, front outrigger swing arm oil cylinder;
4. Each drilling rig is equipped with a baffle on the main arm to protect the oil cylinder;
5. The diameter of the hole is large, the hole is deep, and the advancing speed is fast.
6. Drilling rig chassis: Reinforced steel crawler, large chassis, strong and durable, heavy bearing, wide chain plate, large tonnage.
7. Parallel transmission design, sufficient power, reasonable distribution, unique hydraulic system design, simple maintenance and low cost.
8. The independent heat dissipation dual system adopts hydraulic oil temperature cooling and is equipped with traditional air cooling. long engine life
9. Equipped with dual systems:
1. Air power system with air compressor
2. Mud pump system with mud pump
