Zimbabwe Bore Hole Drilling For 200mm To 300mm Holes Portable Hydraulic Water Well Drilling Rig
  • Zimbabwe Bore Hole Drilling For 200mm To 300mm Holes Portable Hydraulic Water Well Drilling Rig
  • Zimbabwe Bore Hole Drilling For 200mm To 300mm Holes Portable Hydraulic Water Well Drilling Rig
  • Zimbabwe Bore Hole Drilling For 200mm To 300mm Holes Portable Hydraulic Water Well Drilling Rig

Zimbabwe Bore Hole Drilling For 200mm To 300mm Holes Portable Hydraulic Water Well Drilling Rig

Place of Origin Germany,china
Brand Name ROSCHEN
Certification ISO,CE
Model Number ROS
Product Details
Name:
Drilling Rig Machine
Origin:
China Drilling Rig Machine
Supplier:
China Rotary Drilling Rig Supplier
Sales:
China Land Drilling Rig Sale
Type:
Oil Drilling Rig
Rig Parts:
China Drilling Rig Parts
Equipment:
China Drilling Equipment
Rock Drilling:
China Quality Rock Drilling Tools
Manufacturer:
China Crawler Drilling Rig Manufacturer
Drilling:
China Drilling Rig Machine
Highlight:

200mm Bore Hole Drilling

,

200mm Portable drilling machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
Negotiate
Packaging Details
Wooden box
Supply Ability
400 sets
Product Description

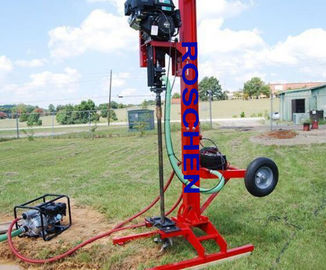

Zimbabwe Bore Hole drilling for 200mm to 300mm Holes Portable Hydraulic Water Well Drilling Rig




Water Well Drilling Rigs


Designed to be tough, robust and highly reliable, Roschen's water well drilling rigs are providing safe, clean water in some of the world’s most difficult environments, where inferior rigs will simply not cope. Roschen supplies its hydraulic top-drive rotary and cable percussion water well rigs to a diverse range of organisations worldwide, including UN bodies, government departments, large and small NGOs, military organisations and private contractors.


Roschen can also provide complete tooling packages and on-site training for all their machines, ensuring the customer realises the full potential of their water well rig.



Popular 300mm water borehole drilling machine drilling on hard rock and soft formation

Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.With hydro-automatic feeding device, and high drilling efficiency.Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.Close levers, convenient to operate, safe and reliable operations.Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.


Features:

1. Power supply: diesel engine or electric motor as options; diesel engine is started by electric battery.
2. Mobile base: It can be mounted on trailer, crawler or truck for easy move and different drilling environment;
3. Automobile transmission assembly: with 10 grades forward rotation speed and 2 grades reverse rotation speed,can meet various stratum drilling requirements.
4. Mud pump: designed wih BW-200 or BW-250 mud pump, XY-600F is with much larger water flushing rate, with better scraps cleaning effects.
5. For different stratum: soil, sand, gravel, rocks. XY-600F can work with alloy bit for soil and sand, PDC bit for gravel, and diamond bit for rocks and hard rocks.
6. To be equipped with hexagonal vertical shaft and hexagonal drive drilling rod, with strong rigidity
and big transfer torque.
7. The entire machine is featured by strong adaptability, high motive power, low cost and broad
compatibility.
8. To be provided with hydraulic control pressure feed mechanism for the purpose of improvement of
construction efficiency.
9. To use hydraulic control well head displacement mechanism for enlargement of initial hole diameter.


Keywords: Water well drilling rigs,borehole drilling rig, Water well drilling equipment, Well Drilling Rigs, Portable Well Drilling Equipment, Hydraulic Well Drilling Rigs, portable drilling rig, drill your own water well, home water well



Specifications:


Model RS-300 Drill Rig
Drilling depth m 100-600
Open hole caliber mm 300
End hole caliber mm 75
Drilling rod mm Φ60
Drilling angle   90°-65°
Spindle
Spindle forward speed r/min 57-1024
Spindle reverse speed r/min 45-212
Spindle stroke mm 560
Spindle inner diameter mm 96
Spindle lifting capacity KG 6000
Hoist
Single line lifting speed m/s 0.515 0.894 1.421 1.948
Hug floodgate belt width mm 90
Tightrope caliber mm 12.5 or 14
Hoist single line lifting capacity KG 3000
Reel caliber mm 200
Reel cubic measure m 30
Mud pump
Horizontal double actuator
Displacement L/min 200,125
Triangle conveyer belt type   B×5
Work pressure Mpa 4.6
Water inlet caliber mm 65
Water to exit caliber mm 37
Oil pump
Duplex gear oil pump F532/F314
Front displacement,pressure   32L/min 20Mpa
Behind displacement,pressure   14L/min 20Mpa
Drilling rig Power
Diesel engine Hp 395Kz 41HP
Electric motor KW Y180L-4 30KW



Any more technical question of this borehole drilling rig please feel free contact with our water well drilling rig department.
