6 Inch DHD360 SD6 QL60 M60 Cop66 DTH Down The Hole Hammer for Water Well Drilling
Roschen offers the largest assortment of conventional down-the-hole (DTH) hammers in the whole industry. Their hammers outdistance the competitors’ hammers in both speed and longevity. The large amount of Roschen hammers and 4 hammer models allow you to drill holes varying between 89mm - 1219mm in diameter. The hammers drill at a high frequency to provide less vibration and ensure a smooth operation. They are also able to drill efficiently against high heads of water.
6 Inch DHD360 SD6 QL60 M60 Cop66 DTH Down The Hole Hammer for Water Well Drilling
6 Inch DHD360 SD6 QL60 M60 Cop66 DTH Hammer Technical Parameters | ||||||
Length (no bit) | Weight (no bit) | External diameter | Bit shank | Hole range | Connection thread | |
1248mm | 100.5kg | Φ142mm | Cop64 | Φ152-Φ203 | API 3 1/2" Reg | |
DHD360 | ||||||
Working pressure | Impact rate at | Recommended | Air consumption | |||
1.7MPa | rotation speed | 1.0MPa | 1.8MPa | 2.4MPa | ||
1.0-2.5MPa | 23Hz | 25-30r/min | 10m3/min | 20m3/min | 28.5m3/min | |
Length (no bit) | Weight (no bit) | External diameter | Bit shank | Hole range | Connection thread | |
1261mm | 100kg | Φ142mm | SD6 | Φ152-Φ203 | API 3 1/2" Reg | |
Working pressure | Impact rate at | Recommended | Air consumption | |||
1.7MPa | rotation speed | 1.0MPa | 1.8MPa | 2.4MPa | ||
1.0-2.5MPa | 23Hz | 25-30r/min | 10m3/min | 20m3/min | 28.5m3/min | |
Length (no bit) | Weight (no bit) | External diameter | Bit shank | Hole range | Connection thread | |
1212mm | 95kg | Φ148mm | QL60 | Φ152-Φ203 | API 3 1/2" Reg | |
Working pressure | Impact rate at | Recommended | Air consumption | |||
1.7MPa | rotation speed | 1.0MPa | 1.8MPa | 2.4MPa | ||
1.0-2.5MPa | 23Hz | 25-30r/min | 10m3/min | 20m3/min | 28.5m3/min | |
Length (no bit) | Weight (no bit) | External diameter | Bit shank | Hole range | Connection thread | |
1161mm | 96.5kg | Φ148mm | Mission60 | Φ152-Φ203 | API 3 1/2" Reg | |
Working pressure | Impact rate at | Recommended | Air consumption | |||
1.7MPa | rotation speed | 1.0MPa | 1.8MPa | 2.4MPa | ||
1.0-2.5MPa | 25Hz | 20-30r/min | 9m3/min | 18m3/min | 26m3/min |
ROSCHEN DTH Hammers Technical Specifications | |||||||
Hammer Size | Bit Shank | ROSCHEN Code | Connection Thread | Suitable bit | Working pressure | Air consumption | |
2" | BR2 | ROS 11 ROS 22 | RD50 box | ¢70-¢90mm | 0.7-1.75Mpa | 0.7Mpa | 4.5m3/min |
1.0Mpa | 4m3/min | ||||||
1.4Mpa | 5m3/min | ||||||
3" | DHD3.5 | ROS 32 | API 2 3/8" Reg | ¢90-¢110mm | 1.0-1.5Mpa | 1.0Mpa | 4.5m3/min |
COP32/COP34 | |||||||
M30 | 1.5Mpa | 9m3/min | |||||
4" | DHD340 | ROS 34 | API 2 3/8" Reg | ¢110-¢135mm | 1.0-2.5Mpa | 1.0Mpa | 6m3/min |
COP44 | |||||||
QL40 | |||||||
SD4 | 1.8Mpa | 10m3/min | |||||
M40 | 2.4Mpa | 15m3/min | |||||
5" | DHD350 | ROS 52 ROS 54 | API 2 3/8"Reg/ API 3 1/2" Reg | ¢135-¢155mm | 1.0-2.5Mpa | 1.0Mpa | 9m3/min |
COP54 | |||||||
QL50 | |||||||
SD5 | 1.8Mpa | 15m3/min | |||||
M50 | 2.4Mpa | 23m3/min | |||||
6" | DHD360 | ROS 62 ROS 64 | API 3 1/2" Reg | ¢155-¢190mm | 1.0-2.5Mpa | 1.0Mpa | 10m3/min |
COP64 | |||||||
QL60 | |||||||
SD6 | 1.8Mpa | 20m3/min | |||||
M60 | 2.4Mpa | 28.5m3/min | |||||
8" | DHD380 | ROS 82 ROS 84 | API 4 1/2" Reg | ¢195-¢254mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min |
COP84 | |||||||
QL80 | 1.8Mpa | 26m3/min | |||||
SD8 | 2.4Mpa | 34m3/min | |||||
M80/M85 | |||||||
10" | SD10 | ROS 100 | API 6 5/8" Reg | ¢254-¢311mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min |
Numa100 | 1.8Mpa | 40m3/min | |||||
ROS 100 | 2.4Mpa | 55m3/min | |||||
12" | DHD1120 | ROS 120 | API 6 5/8" Reg | ¢305-¢445mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
SD12 | 1.8Mpa | 56m3/min | |||||
Numa 120 | 2.4Mpa | 78m3/min | |||||
15" | Numa 150 | ROS 150 | API 6 5/8"Reg | ¢530mm-¢660mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
DHD1150 | 1.8Mpa | 56m3/min | |||||
QL150 | 2.5Mpa | 78m3/min | |||||
18" | Numa 180 | ROS 180 | API 6 5/8"Reg | ¢600mm-¢860mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
DHD1180 | 1.8Mpa | 56m3/min | |||||
QL180 | 2.5Mpa | 78m3/min | |||||
24" | Numa 240 | ROS 240 | API 6 5/8"Reg | ¢775mm-1000mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
QL 240 | 1.8Mpa | 56m3/min | |||||
SD 24 | 2.5Mpa | 78m3/min | |||||
Notes: | |||||||
Any Spline is available | |||||||
API, Metzke, Remet , Fabe thread is available! | |||||||
Any special typ shank of DTH Hammer will be available by requests. |

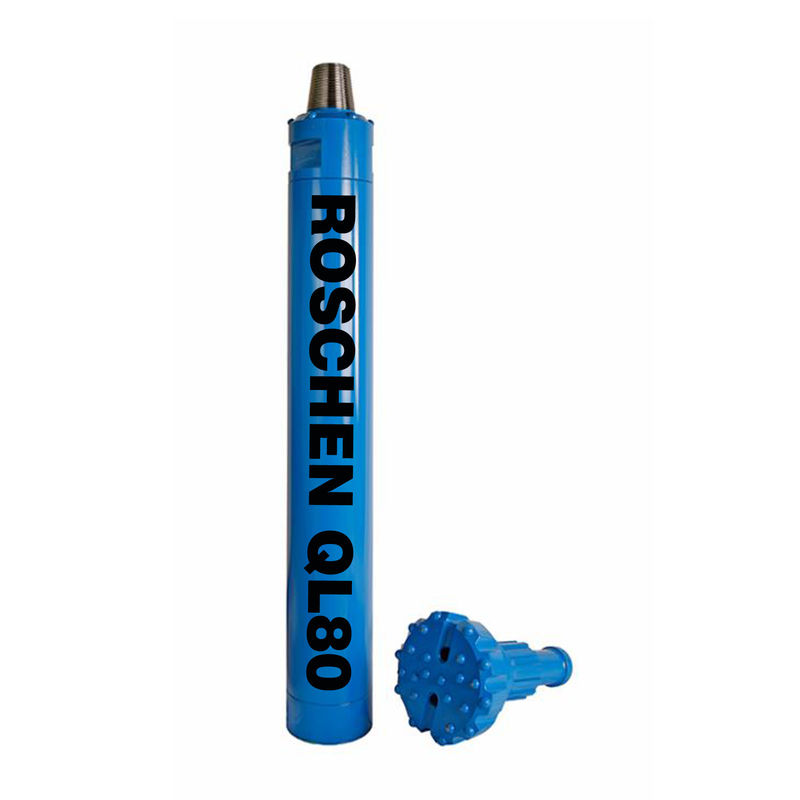

Roschen DTH hammer Features:
- Advanced hammer designs with high power and air efficiency increases productivity
- Tailored product offering covers all your applications and conditions
- Easy service and maintenance designs reduces machine downtime
- Generic and proprietary shank options give you flexibility and reliability
Product Tag:
high air pressure dth hammer
dth hammer
sd6 dth hammer
water dth hammer
6 inch dth hammer
dth hammer price
ql60 dth hammer
dth drilling hammer
Mission60 dth hammer
SD6 dth hammer
dhd360 dth hammer
cop64 dth hammer
Package:
FAQ
Q1: What’s your delivery time?
A: 15 days to produce, within 3 days if in stock.
Q2: What’s methods of payments are accepted?
A: We agree T/T ,L/C , One touch , West Union ,Money Gram ,Paypal.
Q3: What about the shipments and package?
A: 40' container for 2 sets, 20' container for 1 set,
Machine in nude packing, spare parts in standard export wooden box.
Q4: Have you got any certificate?
A:We have got ISO,CE certificate.
Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.
Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for operation and maintenance. If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.
