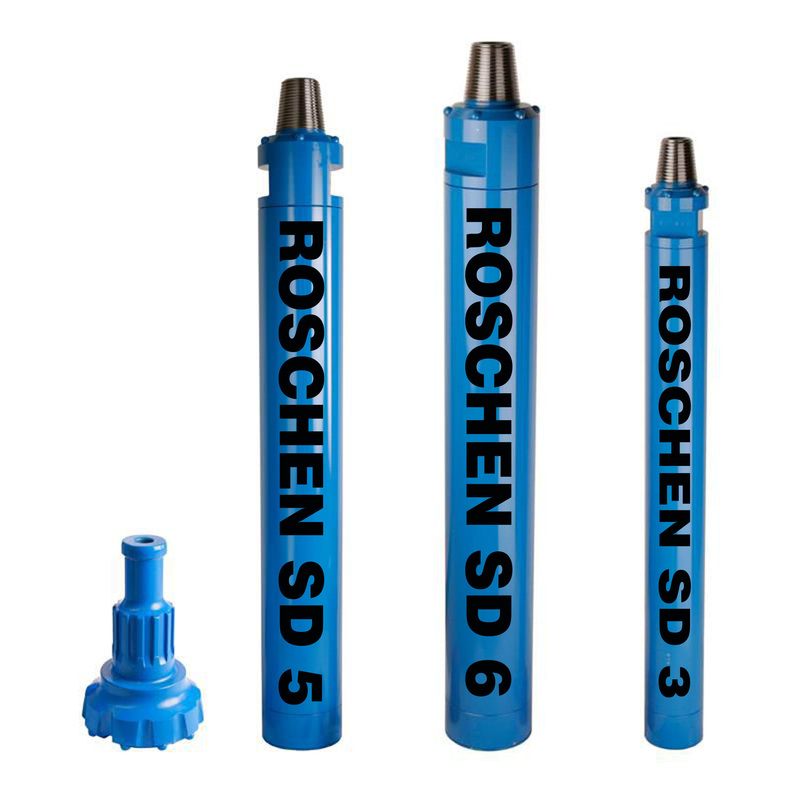

5 Inch DHD350 SD5 QL50 M50 Cop54 DTH Down The Hole Hammer for Water Well Drilling
5 inch DTH Hammer DHD350 QL50 COP54 M50 SD5 dth drilling hammer for rock water well drilling
Roschen professional manufacturing experience in DTH hammer, button bits, drill pipe, overburden casing system, tricone bits production, our factory can supply you with high pressure and medium to low pressure DTH hammers. It strictly matches with API standard and other Chinese industry standards. It is durable for being produced with advanced craftwork and good material.
5 inch DTH Hammer DHD350 QL50 COP54 M50 SD5 dth drilling hammer for rock water well drilling
| ROSCHEN DTH Hammers Technical Specifications | |||||||
| Hammer Size | Bit Shank | ROSCHEN Code | Connection Thread | Suitable bit | Working pressure | Air consumption | |
| 2" | BR2 | ROS 11 ROS 22 | RD50 box | ￠70-￠90mm | 0.7-1.75Mpa | 0.7Mpa | 4.5m3/min |
| 1.0Mpa | 4m3/min | ||||||
| 1.4Mpa | 5m3/min | ||||||
| 3" | DHD3.5 | ROS 32 | API 2 3/8" Reg | ￠90-￠110mm | 1.0-1.5Mpa | 1.0Mpa | 4.5m3/min |
| COP32/COP34 | |||||||
| M30 | 1.5Mpa | 9m3/min | |||||
| 4" | DHD340 | ROS 34 | API 2 3/8" Reg | ￠110-￠135mm | 1.0-2.5Mpa | 1.0Mpa | 6m3/min |
| COP44 | |||||||
| QL40 | |||||||
| SD4 | 1.8Mpa | 10m3/min | |||||
| M40 | 2.4Mpa | 15m3/min | |||||
| 5" | DHD350 | ROS 52 ROS 54 | API 2 3/8"Reg/ API 3 1/2" Reg | ￠135-￠155mm | 1.0-2.5Mpa | 1.0Mpa | 9m3/min |
| COP54 | |||||||
| QL50 | |||||||
| SD5 | 1.8Mpa | 15m3/min | |||||
| M50 | 2.4Mpa | 23m3/min | |||||
| 6" | DHD360 | ROS 62 ROS 64 | API 3 1/2" Reg | ￠155-￠190mm | 1.0-2.5Mpa | 1.0Mpa | 10m3/min |
| COP64 | |||||||
| QL60 | |||||||
| SD6 | 1.8Mpa | 20m3/min | |||||
| M60 | 2.4Mpa | 28.5m3/min | |||||
| 8" | DHD380 | ROS 82 ROS 84 | API 4 1/2" Reg | ￠195-￠254mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min |
| COP84 | |||||||
| QL80 | 1.8Mpa | 26m3/min | |||||
| SD8 | 2.4Mpa | 34m3/min | |||||
| M80/M85 | |||||||
| 10" | SD10 | ROS 100 | API 6 5/8" Reg | ￠254-￠311mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min |
| Numa100 | 1.8Mpa | 40m3/min | |||||
| ROS 100 | 2.4Mpa | 55m3/min | |||||
| 12" | DHD1120 | ROS 120 | API 6 5/8" Reg | ￠305-￠445mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
| SD12 | 1.8Mpa | 56m3/min | |||||
| Numa 120 | 2.4Mpa | 78m3/min | |||||
| 15" | Numa 150 | ROS 150 | API 6 5/8"Reg | ¢530mm-¢660mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
| DHD1150 | 1.8Mpa | 56m3/min | |||||
| QL150 | 2.5Mpa | 78m3/min | |||||
| 18" | Numa 180 | ROS 180 | API 6 5/8"Reg | ¢600mm-¢860mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
| DHD1180 | 1.8Mpa | 56m3/min | |||||
| QL180 | 2.5Mpa | 78m3/min | |||||
| 24" | Numa 240 | ROS 240 | API 6 5/8"Reg | ¢775mm-1000mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
| QL 240 | 1.8Mpa | 56m3/min | |||||
| SD 24 | 2.5Mpa | 78m3/min | |||||
| Notes: | |||||||
| Any Spline is available | |||||||
| API, Metzke, Remet , Fabe thread is available! | |||||||
| Any special typ shank of DTH Hammer will be available by requests. | |||||||
Advantages:
1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of LHD series DTH hammer designed according to newest rock drilling theory.
2. Smooth performance and long service life of LHD series DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.
3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.
4. Easy to depart bit from hammer due to multi—head thread connecting chuck and cylinder of hammer.
5. Interchangeable with DTH bit and drill pipe
