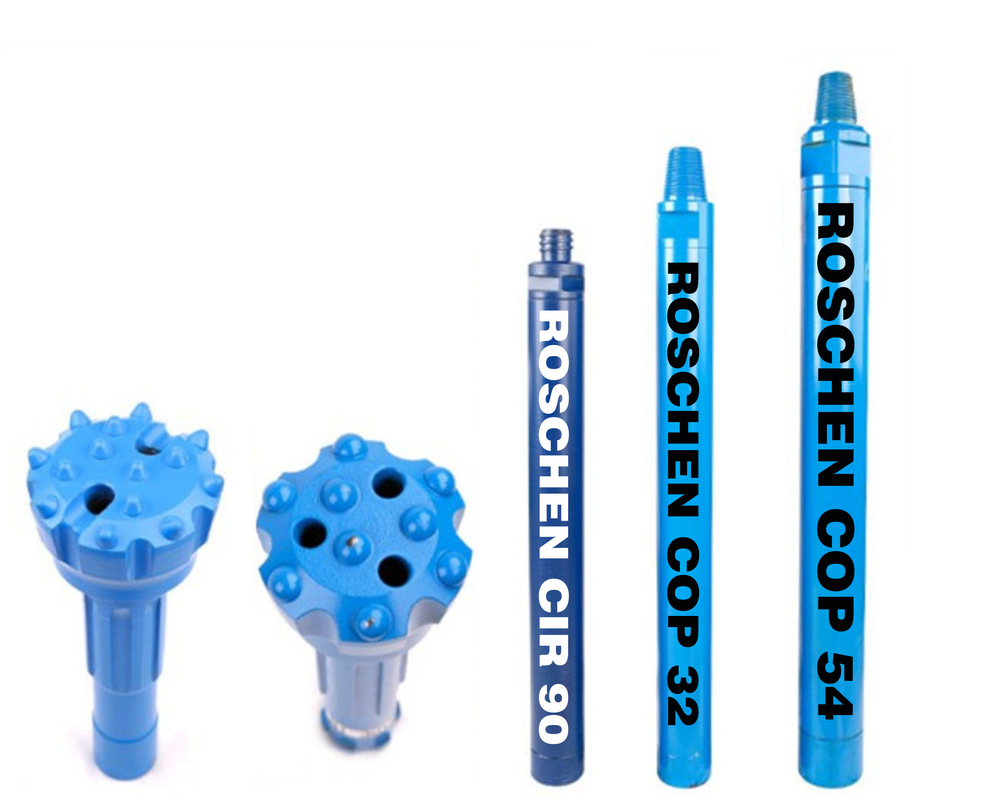

Roschen offers the largest assortment of conventional down-the-hole (DTH) hammers in the whole industry. Their hammers outdistance the competitors’ hammers in both speed and longevity. The large amount of Roschen hammers and 4 hammer models allow you to drill holes varying between 89mm - 1219mm in diameter. The hammers drill at a high frequency to provide less vibration and ensure a smooth operation. They are also able to drill efficiently against high heads of water.
CIR55 CIR60 CIR70 CIR70 CIR76 CIR80 CIR90 CIR100 CIR110 Low Air Pressure DTH Hammers
CIR110 Low Air Pressure DTH Hammers for Mining quarrying drilling
CIR110 Low Air Pressure DTH Hammers
The application of Low air pressure DTH Hammer: Mining, quarrying, road construction and other projects drilling blasting hole, landslide protection, dam reinforcement, anchoring and other engineering holes, geothermal air conditioning, hydrology, wells and other fields.
CIR55 CIR60 CIR70 CIR70 CIR76 CIR80 CIR90 CIR100 CIR110 Low Air Pressure DTH Hammers
What is Low air pressure DTH hammer ?
Low air pressure DTH hammer is widely used in geotechnical engineering in a variety of hard, high hardness and other toughness can be poor tough rock, the following characteristics:
1. Low air pressure DTH hammer is a valve-type center exhaust hammer, the discharge of rock powder effect is good, reducing the re-broken rock slag, reducing the wear of the drill, improve the drilling efficiency.
2. Using the latest rock design theory to design the hammer of the internal structure of the size of the hammer to obtain the ideal energy transfer, a single hammer power, drilling faster, lower air consumption.
3. Selection of the highest quality raw materials and the most advanced processing technology, more stable performance, longer life.
4. Easy disassembly, low failure, easy maintenance.
The application of Low air pressure DTH Hammer:
Mining, quarrying, road construction and other projects drilling blasting hole, landslide protection, dam reinforcement, anchoring and other engineering holes, geothermal air conditioning, hydrology, wells and other fields.
The technical data for low air pressure DTH hammer:
Lower Pressure DTH Hammer Specification | |||||||
Model | Drill Hole Dia. (mm) | Casing OD (mm) | Length (mm) | Weight (kg) | Work pressure (MPa) | Air consumption (m3/min) | Impact frequency (T/min) |
65A DTH Hammer | Ø65-67 | 61 | 745 | 13 | 0.5-0.7 | 2.5 | ≥810 |
70A DTH Hammer | Ø74-76 | 67 | 766 | 15 | 0.5-0.7 | 3 | ≥810 |
80A DTH Hammer | Ø80-82 | 72 | 796 | 17 | 0.5-0.7 | 5.5 | ≥810 |
90 DTH Hammer | Ø90-100 | 80 | 796 | 22 | 0.5-0.7 | 7 | ≥840 |
90A DTH Hammer | Ø90-100 | 80 | 796 | 22 | 0.5-0.7 | 6 | ≥840 |
900 DTH Hammer | Ø90-100 | 80 | 870 | 24 | 0.8-1.2 | 5 | ≥700 |
930 DTH Hammer | Ø90-100 | 80 | 870 | 24 | 0.8-1.2 | 6 | ≥700 |
110A DTH Hammer | Ø110-120 | 98 | 838 | 36 | 0.5-0.7 | 11 | ≥840 |
DHD340 DTH Hammer | Ø110-140 | 98 | 1045 | 39 | 1.2-2.0 | 3.5-15 | ≥1140 |
DHD350 DTH Hammer | Ø135-155 | 122 | 1213 | 57 | 0.6-2.5 | 7.5-9 | ≥1140 |
DHD360 DTH Hammer | Ø152-190 | 139 | 1300 | 98 | 0.6-2.5 | 10.5-19 | ≥1140 |
