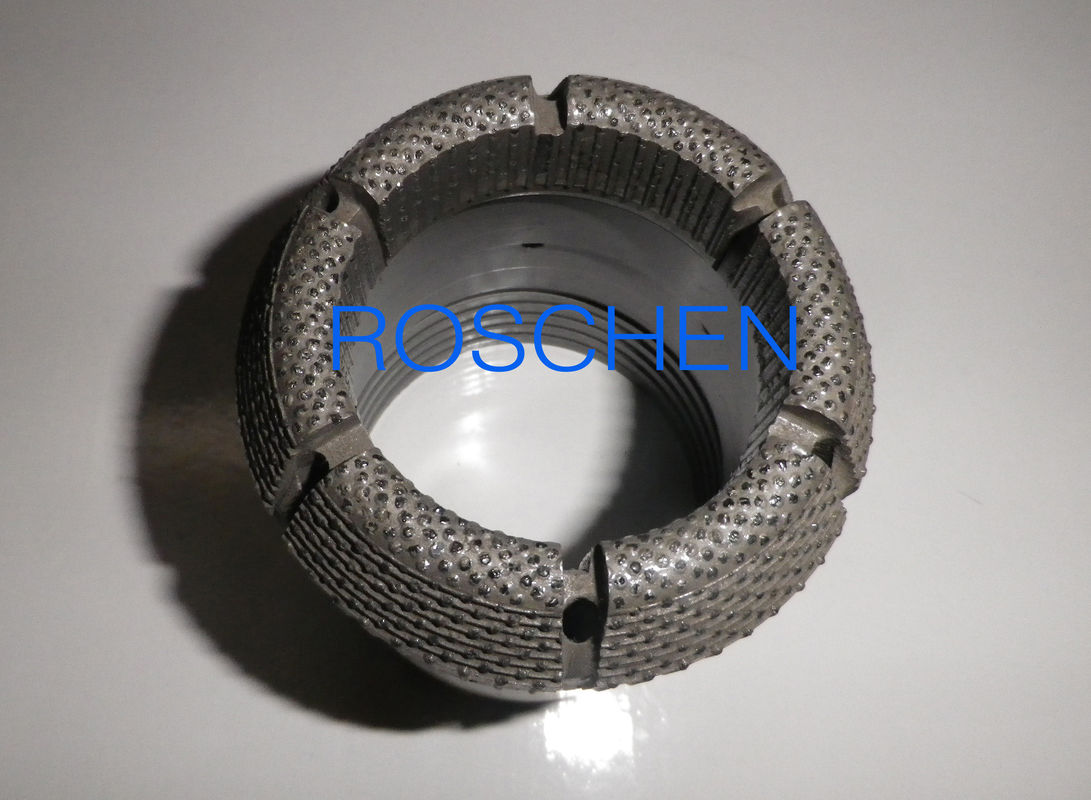

HQ Surface Set Polycrystalline Diamond Core Drill Bits High Penetration Rate

HQ Surface Set Polycrystalline Diamond Core Drill Bits High Penetration Rate
HQ Surface Set Polycrystalline Diamond Core Drill Bits High Penetration Rate HQ Surface Set Polycrystalline Diamond Core Drill Bits High Penetration Rate HQ Surface Set Polycrystalline Diamond Core Drill Bits High Penetration Rate HQ Surface Set Polycrystalline Diamond Core Drill Bits High Penetration Rate

Large Image :  HQ Surface Set Polycrystalline Diamond Core Drill Bits High Penetration Rate

Product Details:

Place of Origin: Germany
Brand Name: ROSCHEN
Certification: ISO9001
Model Number: AQ, BQ, NQ, HQ, PQ/ BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT, T2 46, T2 56, T2 66, T2 76, T2 86, T2 101

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: $100
Packaging Details: wooden, carton packaging
Supply Ability: 500 pcs per month
Detailed Product Description
Series: Wireline Diamond Core Bits Model: Impregnated Diamond Core Bits
Drilling: Exploration Core Drilling Drills: Wireline Core Drilling
Mining: Australia Mining Exploration: Australia Exploration
Model No: Mining Exploration Core Drilling Usage: Africa Mining
Applications: Copper Mining Drilling
High Light:

Diamond Core Drilling Bits

,

Concrete Core Drill Bit



HQ Surface Set Polycrystalline Diamond Core Drill Bit High Penetration Rate





HQ , HQ3 , NQ, NQ3 Surface-Set Diamond Core Drill Bits


Surface-Set Diamond Core Drill Bits PCD ( Polycrystalline diamond ) For For Hard Rock / Core Drill Machine


HQ , HQ3 Surface-Set Diamond Core Drill Bits PCD ( Polycrystalline diamond ) For For Hard Rock Formations / Core Drill Machine




Detailed Product Description|

Features: High Penetration Rate, High Speed,High Performance
Crown Height: 9mm, 12mm, And 16mm
Use: Rock formations
Product Name: Core Drill Bits
Type: Surface-Set Diamond Bits
Size: Q Series / T2 Series / T6 Series



Surface-Set Diamond Core Drill Bits PCD For For Hard Rock / Core Drill Machine




Introduction:



SURFACE-SET PCD CORE BITS are set with PCD(Polycrystalline diamond), a singular layer of natural or synthetic diamond utilizing a hard matrix compound on the face of the bit. The diamond set design ensures sufficient overlap to prevent premature wear of the matrix.



Surface-Set diamond bits are primarily recommended for use in drilling relatively soft, abrasive, unconsolidated formations that are not effectively drilled by impregnated diamond bits.



They are also recommended for use in drilling harder formations where the available rotational speeds and bit loads are insufficient to use impregnated diamond bits due to drilling equipment limitations.



Surface-Set Non-coring Bits are drilling for broken formation rock which can't be cored. Crown are used A to set with synthetic, natural or polycrystalline diamond. It's used for drilling in soft to medium hard formation rocks.



Size Available:


Q Series: AQ, BQ, NQ, HQ, PQ/ BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT
T2 Series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
T6 Series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146, T6S 101
T Series: T36, T46, T56, T66, T76, T86
Z Series: Z46, Z56, Z66, Z76, Z86, Z101, Z116, Z131, Z146
B Series: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
WG Series: EWG, AWG, BWG, NWG, HWG

Others: NMLC, HMLC, LTK48, LTK60, BGM, NGM, ADBG, TBW, TNW, ATW, BTW, NTW, NXD3, AX, NX, NXC, AXT, T6H, 4 9/16, NWD4, 412F, SK6L146, TT46, TB56, TS116, CHD101.

Notes:Non-standard items also can be made according to your detailed demand






Wireline diamond core bits, metricl diamond impregnated drill bits specifications
"Q" series: AQ, BQ, NQ, HQ, PQ/AQTK, BQTK, BQ3, NQ2, NQ3, NQTT, HQ3, HQTT, PQ3, PQTT
A-Gauge Core Bits: AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: NQ, NQ-RSG, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW,
H-Gauge Core Bits: HQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P-Gauge Core Bits: PQ, PQ3, PWF-Long, PWF-Short
S-Gauge Core Bits: SWF-Long, SWF-Short
U-Gauge Core Bits: UWF-Long, UWF-Short
Z-Gauge Core Bits: ZWF-Long, ZWF-Short
T Series: T36, T46, T56, T66, T76, T86, T101
TT Series: TT46, TT56, TT66, TT76, TT86, TT101
T2 Series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101
TB Series Metric Core Bits: TB36, TB46, TB56, TB66, TB76, TB86, TB101
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
B Series(IS03552-1)Metric Core Bits: B36, B46, B56, B66, B76, B86, B101, B116, B131, B146
All other standard: CDDA, DCDMA, Crealius, and ISO sizes.
