Diamond Core Drill Bits
>
|
| Place of Origin | CHINA |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | NQ HQ PQ |

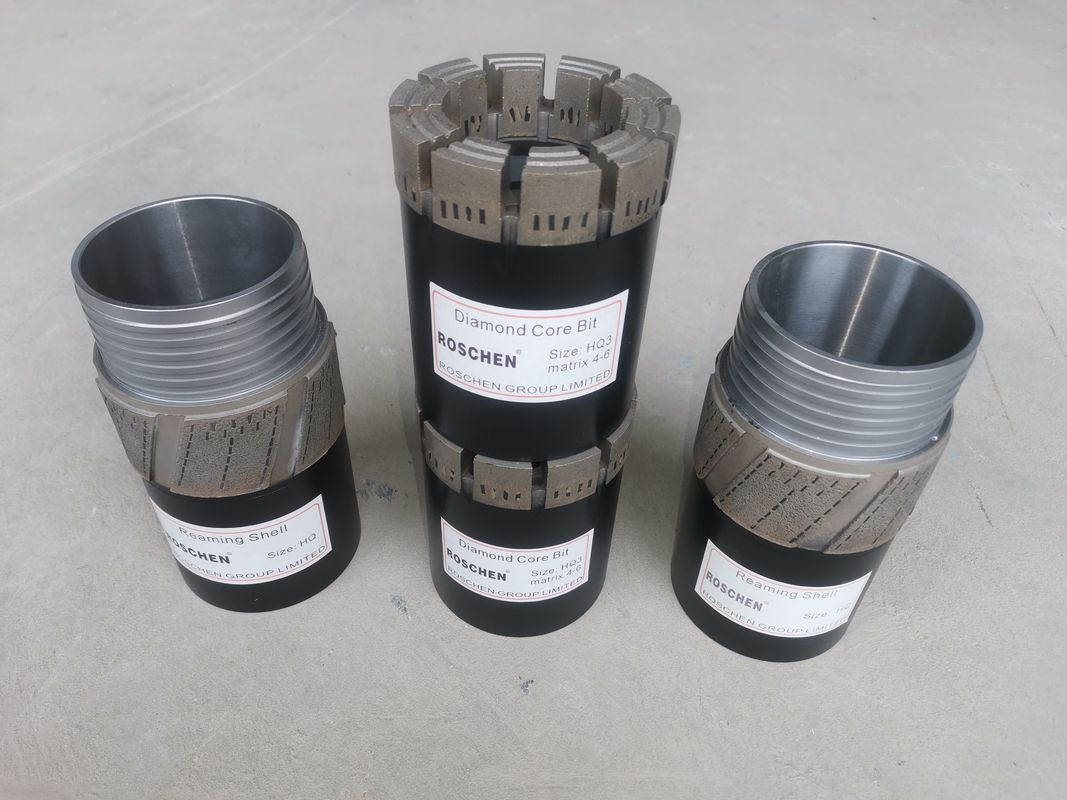

Diamond Core Drill Bits are natural diamond bits designed for exploration core drilling, featuring a wide range of diameters and lengths for all types of drilling applications. Our diamond bits are made of industrial grade diamonds ensuring maximum performance and durability. These bits are available in BQ, HQ, NQ, PQ, T2-76, T2-86, and T2-101 sizes, and the packages include Carton, Plastic Bag, etc. They are ideal for drilling holes in minerals and other hard materials. Our diamond bits offer a 1 YEAR warranty and are perfect for mineral exploration core drilling.
| Diamond Core Drill Bits Specifications | |
| Wireline series: | Geobor S, WLA, WLB, WLN, WLH, WLP, WLB3, WLN3, WLH3, WLP3, WLN2, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76 |
| T2 / T series: | T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T46, T56, T66, T76, T86 |
| TT series: | TT 46, TT 56 |
| T6 series: | T6 76, T6 86, T6 101, T6 116, T6 131, T6 146 |
| T6S series: | T6S 76, T6S 86, T6S 101, T6S 116, T6S 131, T6S 146 |
| B series: | B46, B56, B66, B76, B86, B101, B116, B131, B146 |
| MLC series: | AMLC, BMLC, NMLC, HMLC |
| Triple Tube: | 3C, 4C, 6C, 8C, 10C, 12C, 14C, 16C, 18C, 20C Triple Tube |
| LTK series: | LTK48, LTK56, LTK60 |
| WF series: | HWF, PWF, SWF, UWF, ZWF |
| WT series: | RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube) |
| WG series: | EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube) |
| WM series: | EWM, AWM, BWM, NWM, HWM |
| Other sizes: | AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, NTW, HTW, T6H |
| Chinese standard: | 56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm |
| Russian standard: | 59, 76, 93, 112, 132, 152, 168, 172,194, 203, 219 mm |
Impregnated diamond drill bits are designed to be used as grinders. They are made by embedding diamonds in an infiltred or sintered matrix. As the diamonds become worn and rounded due to usage, the matrix erodes at the same rate; thus, new sharp diamonds are uncovered to continue cutting through the rock.
The success of these bits depends on the combination of diamonds and matrix used. With the nice feature of being self-sharpening due to the simultaneous erosion of the matrix and the diamonds, the T6-101 impregnated diamond core bit is ideal for a wide range of rock formations.
Impregnated Diamond Core Bits are popular due to its unique manufacturing process. Small and high quality synthetic diamonds are evenly mixed across a metal alloy matrix. The matrix erodes over time at the same rate as the diamonds get worn and rounded. This provides a continuous cutting through rock, as new sharp diamonds are exposed.
In regards to the technical specifications, there are multiple parameters that must be taken into consideration. Diamond type, size, concentration, diamond grade, matrix hardness and crown shapes are some examples that can be adjusted according to geological conditions. It has also become a standard practice to use diamond tungsten carbide inserts on both sides of the waterway and the larger diamonds on the outside and inside.
Since its creation, impregnated diamond core bits have become increasingly popular in the mineral exploration industry. Its efficiency, cost effectiveness and ability to adjust its parameters are what makes it stand out among others. With proper selection and adjustments, users can get satisfactory results for various types of rock formations.
ROSCHEN is a professional manufacturer of a variety of diamond core drill bits, which are mainly used for mineral exploration core drilling. They include NQ Impregnated Diamond Core Bits, HQ Impregnated Diamond Core Bits and other wireline core drilling bits. All of these diamond core drill bits are manufactured with advanced technology, and they are able to drill holes with diameter of NQ, HQ, PQ, BQ, T2-76, T2-86 and T2-101, and reach drilling depth over 1000 meters. Our diamond core drill bits come with 1 year warranty and are ideal for mineral exploration core drilling.
Brand Name: ROSCHEN
Model Number: NQ HQ PQ
Place of Origin: CHINA
Application: Mineral Exploration Core Drilling
Shank Type: HQ, NQ, PQ
Package: Carton, Plastic Bag, Etc.
Weight: 16.5
Warranty: 1 YEAR
Features:
Exploration diamond core drilling, impregnated bit diamond type, Diamond impregnated Inserts.
Diamond Core Drill Bits are packaged in heavy-duty cardboard boxes with foam inserts to ensure secure packaging. The drill bits are then shipped in bulk to the customer's location.
All shipments are insured to cover any damages incurred during shipping. Customers will receive a tracking number to track the progress of their shipment.
Our team of professionals are dedicated to making sure that every Diamond Core Drill Bit is shipped safely and securely.
