Reverse Circulation Hammer
>
|
| Place of Origin | CHINA |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | COP RC35 RC45 RC50 RC60 RC80 |

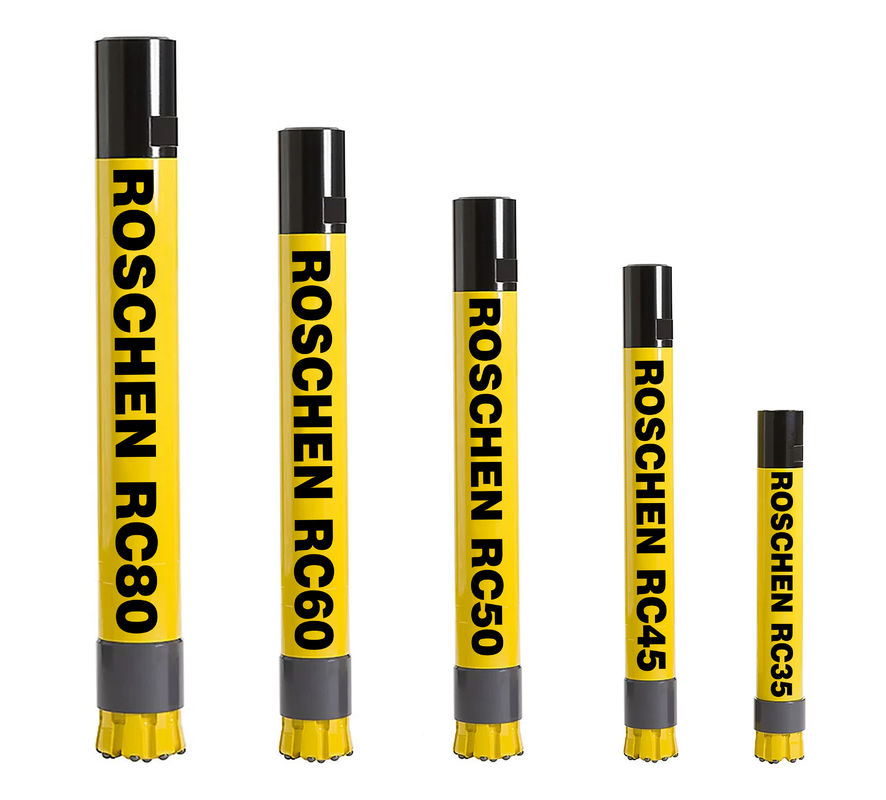

Reverse Circulation Hammers COP RC35 RC45 RC50 RC60 RC80 RC Hammer
Reverse Circulation Hammers
| ROSCHEN Reverse Circulation Hammers Specifications | |||||||||
| Hammer Size | Hammer | Bit Shank | ROSCHEN Code | Hole Range (mm) | External Diameter (mm) | Length (without bit) mm | Weight (N.W.) kgs | Connection Thread | Working Pressure |
| 3" | RE531 | RE531 | ROS RC 30 | 84-100 | 81 | 1069 | 29 | 3“ Remet | 1.0-3.0Mpa |
| 3" | RE035 | RE035 | ROS RC 35 | 84-105 | 85 | 1075 | 35 | 3“ Remet | 1.0-3.0Mpa |
| 4 1/2" | RE004 | RE004 | ROS RC 40 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 4 1/2" | RE540 | RE540 | ROS RC 45 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE040 | RE040 | ROS RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE542 | RE542 | ROS RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE543 | RE543 | ROS RC 50 | 120-135 | 116 | 1191 | 62 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE545 | RE545 | ROS RC 50 | 122-135 | 117.5 | 1261 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | RE547 | RE547 | ROS RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | RE052 | RE052 | ROS RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 3/4" | RE054 | RE054 | ROS RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 3/4" | RE140 | RE140 | ROS RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5" | PR40 | PR40 | ROS RC 50 | 124-142 | 120.5 | 1362 | 80.5 | 3.5"-4.5" Remet 3.5"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR52 | PR52 | ROS RC 55 | 126-142 | 121 | 1227 | 68.5 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR52R | PR52/PR52R | ROS RC 55 | 130-146 | 124 | 1225 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR54 | PR54 | ROS RC 55 | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 6" | MX5456 | MX5456 | ROS RC 60 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 6"~6 1/2" | RC62/RC62R | RC62/RC62R | ROS RC 65 | 152-190 | 146 | 1320 | 110 | As Request | 1.5-3.5Mpa |
| 8" | RC82/RC82R | RC82/RC82R | ROS RC 80 | 190-250 | 180 | 1395 | 185 | As Request | 1.5-3.5Mpa |
| 10" | RC100/RC100R | RC100/RC100R | ROS RC 100 | 250-370 | 240 | 1528 | 328 | As Request | 1.5-3.5Mpa |
| 12" | RC120/RC120R | RC120/RC120R | ROS RC 120 | 280-420 | 278 | 1560 | 350 | As Request | 1.5-3.5Mpa |
| Notes: | |||||||||
| Metzke, Remet, DR115, ARD, Matrix thread is available! | |||||||||
| Any special type shank of RC Hammer will be available by requests. | |||||||||
COP RC45
This is the smallest, fastest and lightest Reverse Circulation (RC) hammer available, providing you with easy handling and outstanding drilling performance. With its unique air chambers design, pressure builds up faster allowing the piston to strike faster. The result is marginally lower impact energy and leads to a great increase in power output and a marked improvement in penetration rate.
The Roschen COP RC45 features a unique air cycle distribution. This design makes it easy to service and replace tubes since you don’t have to disassemble the hammer. Quite simply this means minimum down-time and maximum time producing samples.
Features:
. Can be handled by one man
. Simple design for easy maintenance and minimal downtime
. Lighter weight for easier handling
. Higher frequency for maximum power output
. Improved fuel efficiency
. Long service life
RC50
The Roschen Secoroc RC50 features high frequency combined with a high mass piston provide a high output of power, ensuring cutting edge performance and an excellent rate of penetration.
Features:
. 15 to 20 % higher penetration compared to equal RC hammers
. Long-term, low-maintenance endurance
. Proven design and easy servicing
COP RC45 HD
With the same features and benefits as the Roschen Secoroc COP45, this heavy-duty version is ideal for conditions that are extra demanding conditions. The HD version apart leverages the best material and the best heat treatment available.
Features:
. Longer service life
. Higher productivity
Fore more information, pls contact us via
