Re542 Re543 Re545 Re547 Re040 Re531 Pr 52 Pr54 Drill Bits for sandvik Reverse Circulation (RC) Hammers
Re542 Re543 Re545 Re547 Re040 Re531 Pr 52 Pr54 Drill Bits for sandvik Reverse Circulation (RC) Hammers
A reverse circulation drilling method for drilling cuttings carrying drill cuttings through the inner bore of the drill rod and returning from the borehole to the ground.
Roschen Reverse Circulation Hammers can instead of sandvik Reverse Circulation Hammers even on quality level, but also, our price is very competitive.
The liquid (gas) flow of the reverse circulation drilling is compared with the conventional circulation method called positive circulation, in which the flushing medium is fed into the bottom of the drill hole through the inner hole of the drill rod and returns to the ground along the annular gap outside the drill rod. The speed of return is high, and it is very strong to carry rock powder. Rocks that have been drilled at the bottom of the hole can be discharged in time and quickly return to the surface.
Main Advantages:
1. High drilling efficiency;
2. Timely sampling and high rate of adoption are conducive to accurately assessing the stratum;
3. Using higher grade carbides for longer life;
4. Minimizes hole erosion in fragile formations
5. Drills faster through soft formations with less blockages
6. Drills straighter through consolidated and unconsolidated formations
7. When drilling in the aquifer, the blockage of the pore wall by the mud can be avoided, and the original natural permeability of the formation can be maintained. The reverse circulation drilling can use various materials such as hard alloy, diamond, cone and scraper bit. Different rock fragmentation tools can be used for cyclic flush drilling of various rock fragmentation methods such as rotary drilling, impact drilling and impact rotary drilling, and the flushing medium can be clean water, mud or air. Can drill into the vertical hole, inclined hole or horizontal hole, can drill into all kinds of strata.
Why do you need to set back injection on reverse circulation bit ?
According to the way of mud circulation, the rotary drilling machine is divided into positive circulation drilling and reverse circulation drilling. Positive circulation drilling is that the mud is pumped out of the mud pool by the mud pump, the input hose is sent to the upper entrance of the hollow drill rod, and the hollow drill rod is sprayed to the bottom of the drill bit. The rotating drill bit lubricates the mud.
ROSCHEN Reverse Circulation Bits Specifications | ||||||||
RE531 RC bits | ||||||||
ROSCHEN Code: ROS RC 30 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
86 | 3 3/8 | 6x12 | 4x12 | 35 | 2 | 84 | 4.2 | RE531-86 |
89 | 3 1/2 | 8x12 | 8x12 | 35 | 2 | 87 | 4.3 | RE531-89 |
95 | 3 3/4 | 8x12 | 8x12 | 35 | 2 | 93 | 4.6 | RE531-95 |
102 | 4 | 8x12 | 8x12 | 35 | 2 | 100 | 4.9 | RE531-102 |
RE004 RC bits | ||||||||
ROSCHEN Code: ROS RC 40 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
114 | 4 1/2 | 8x14 | 6x14 | 35 | 2 | 112 | 11.5 | RE004-114 |
118 | 4 5/8 | 8x14 | 6x14 | 35 | 2 | 116 | 11.7 | RE004-118 |
121 | 4 3/4 | 8x14 | 6x14 | 35 | 2 | 119 | 12 | RE004-121 |
127 | 5 | 8x14 | 8x14 | 35 | 2 | 125 | 12.4 | RE004-127 |
RE542 | ||||||||
ROSCHEN Code: ROS RC 50 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
121 | 4 3/4 | 8x14 | 6x14 | 35 | 2 | 119 | 10.6 | RE542-121 |
124 | 4 7/8 | 8x14 | 8x13 | 35 | 2 | 122 | 10.8 | RE542-124 |
127 | 5 | 8x14 | 8x14 | 35 | 2 | 125 | 11 | RE542-127 |
130 | 5 1/8 | 8x14 | 10x14 | 35 | 2 | 128 | 11.3 | RE542-130 |
RE543 | ||||||||
ROSCHEN Code: ROS RC 50 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
124 | 4 7/8 | 8x14 | 8X13 | 35 | 2 | 122 | 10.8 | RE543-124 |
127 | 5 | 8x14 | 8X14 | 35 | 2 | 125 | 11 | RE543-127 |
130 | 5 1/8 | 8x14 | 10X14 | 35 | 2 | 128 | 11.3 | RE543-130 |
133 | 5 1/4 | 8x16 | 10X14 | 35 | 2 | 131 | 11.8 | RE543-133 |
RE545 | ||||||||
ROSCHEN Code: ROS RC 50 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
124 | 4 7/8 | 8x14 | 8X13 | 35 | 2 | 122 | 13.3 | RE545-124 |
127 | 5 | 8x14 | 8X14 | 35 | 2 | 125 | 13.5 | RE545-127 |
133 | 5 1/4 | 8x16 | 10X14 | 35 | 2 | 131 | 13.8 | RE545-133 |
136 | 5 3/8 | 8x16 | 6x16+3x14 | 35 | 2 | 134 | 14.2 | RE545-136 |
PR40 RC bit | ||||||||
ROSCHEN Code: ROS RC 50 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
124 | 4 7/8 | 8x14 | 8X13 | 35 | 2 | 122 | 14.3 | PR40-124 |
127 | 5 | 8x14 | 8X14 | 35 | 2 | 125 | 14.7 | PR40-127 |
133 | 5 1/4 | 8x16 | 10X14 | 35 | 2 | 131 | 15.2 | PR40-133 |
138 | 5 4/9 | 8x16 | 6x16+3x14 | 35 | 2 | 136 | 15.8 | PR40-138 |
PR52 RC bit | ||||||||
ROSCHEN Code: ROS RC 55 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
133 | 5 1/4 | 8x16 | 10x14 | 35 | 2 | 131 | 11.2 | PR52-133 |
136 | 5 3/8 | 8x16 | 6x16+3x14 | 35 | 2 | 134 | 11.5 | PR52-136 |
140 | 5 1/2 | 8x16 | 6x16+3x14 | 35 | 2 | 138 | 11.9 | PR52-140 |
143 | 5 5/8 | 8x16 | 6x16+3x14 | 35 | 2 | 141 | 12.3 | PR52-143 |
RE547 RC bit | ||||||||
ROSCHEN Code: ROS RC 55 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
136 | 5 3/8 | 8x16 | 6x16+3x14 | 35 | 2 | 134 | 15.1 | RE547-136 |
140 | 5 1/2 | 8x16 | 6x16+3x14 | 35 | 2 | 138 | 15.5 | RE547-140 |
143 | 5 5/8 | 8x16 | 6x16+3x14 | 35 | 2 | 141 | 15.8 | RE547-143 |
146 | 5 3/4 | 8x16 | 6x16+3x14 | 35 | 2 | 144 | 16.3 | RE547-146 |
PR54 | ||||||||
ROSCHEN Code: ROS RC 55 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
136 | 5 3/8 | 8x16 | 6x16+3x14 | 35 | 2 | 134 | 18.2 | PR54-136 |
140 | 5 1/2 | 8x16 | 6x16+3x14 | 35 | 2 | 138 | 18.5 | PR54-140 |
143 | 5 5/8 | 8x16 | 6x16+3x14 | 35 | 2 | 141 | 18.8 | PR54-143 |
146 | 5 3/4 | 8x16 | 6x16+3x14 | 35 | 2 | 144 | 19.2 | PR54-146 |
Notes: | ||||||||
Metzke, Remet thread is available! | ||||||||
Any special size of Reverse Circulation bits will be available by requests. |
Hammer Bit
Reverse Circulation Hammer Bits
RC Hammer Bit
RC Hammer Drill Bit
RC Bit
China Reverse Circulation Bit RC Drill Bits
Reverse Circulation Hammers and Bits
RC Hammers Reverse Circulation
Reverse Circulation Bits for sandvik RC Hammer
Reverse Circulation (RC) Drill Bit for sandvik RC Hammer
China RC Reverse Circulation Hammer for sandvik RC Hammer
Re542 RC Hammer for sandvik RC Hammer
Re543 RC Hammer for sandvik RC Hammer
Re545 RC Hammer for sandvik RC Hammer
Pr52 RC Hammer
Drill Bit Sets Amazon
Pr54 RC Hammer for sandvik RC Hammer
Reverse Drill Bits Home Depot
Atlas Copco RC50 RC Hammer
Reverse Circulation Bit for sandvik RC Hammer
Reverse circulation (RC) bits with below shank can be available:
1. 3" RC Bits: Dia. 86mm-102mm shank RE531
2. 4" RC Bits: Dia. 114mm-127mm Shank type: RE004
3. 4.5" RC Bits: Dia. 121mm-133mm Shank type: RE542, RE543
4. 5" RC Bits: Dia. 124mm-138mm Shank type: RE545, PR40
5. 5.5" RC Bits: Dia. 133mm-159mm Shank type: PR52, RE547, PR54, M5456
6. 6" RC Bits: Dia. 152mm-165mm
7. Any special specifications would be available againsts customer's requirements.
8. Special Button Size, or PCD Butons would be available.
Roschen also provide various ranges products, such as DTH hammers, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc.

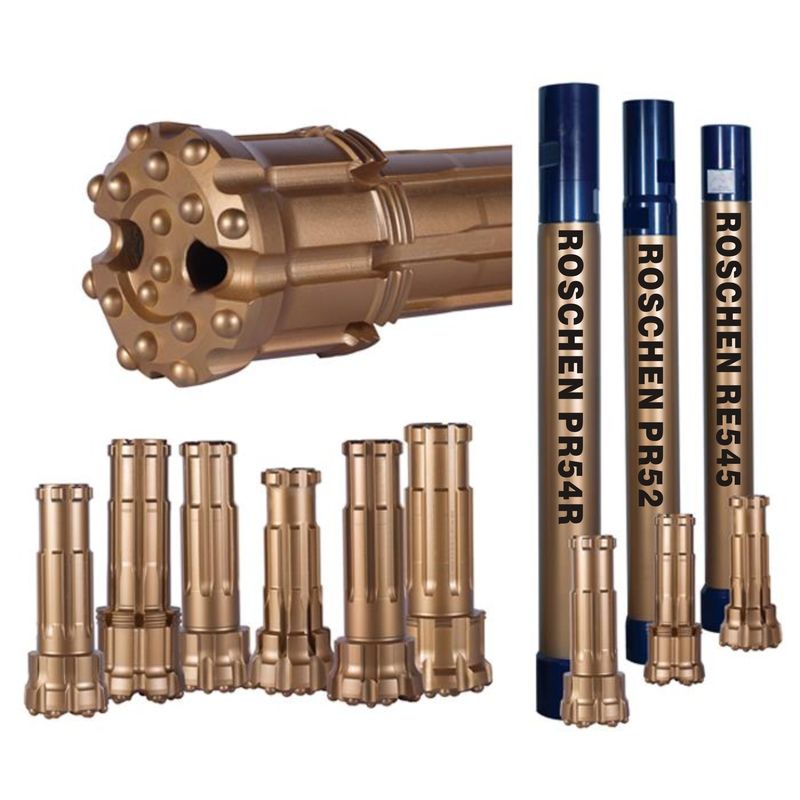

Product photos
Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.
Production time:
Generally need 15-25 days
Transportation:
By air, By Express or By sea according to your requests.
FAQ
Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.
Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.
Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.
Q: How about discount?
A: Price is based on products and order quantity.
Q: Do you accept sample order?
A: Yes sure, please contact us for details.
Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.
Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.
