CIR100 Lower Pressure Down The Hole Hammer For Drilling Faster Rock Penetration

1 set
MOQ
CIR100 Lower Pressure Down The Hole Hammer For Drilling Faster Rock Penetration
Features Gallery Product Description Request A Quote
Features
Specifications
Model: Down The Hole Hammer
Name: Down The Hole Hammer, DTH Hammer
Applications: Mineral Drilling, Exploration Core Drilling
Mining Object:: Mining, Ore Machinery, Stone Quarry Drilling
Usage: Use Together With DTH Button Bits
Model No.: CIR90 ,CIR100, DHD360, QL60, SD80, COP64, COP84
Series No.: SD, ROS, Cop Br DHD Mission
Material: High Carbon Steel
Drill Diameter: 65-800mm
Machine: Hydraulic Crawler Drill Rig
Drilling: Down The Hole Drilling, DTH Drilling
Tools: Top Hammer Drilling Tools
High Light:

down hole tools

,

down hole hammer

Basic Infomation
Place of Origin: Germany
Brand Name: ROSCHEN
Certification: ISO
Model Number: CIR100
Payment & Shipping Terms
Packaging Details: Wooden Box
Supply Ability: 200-1000 sets
Product Description

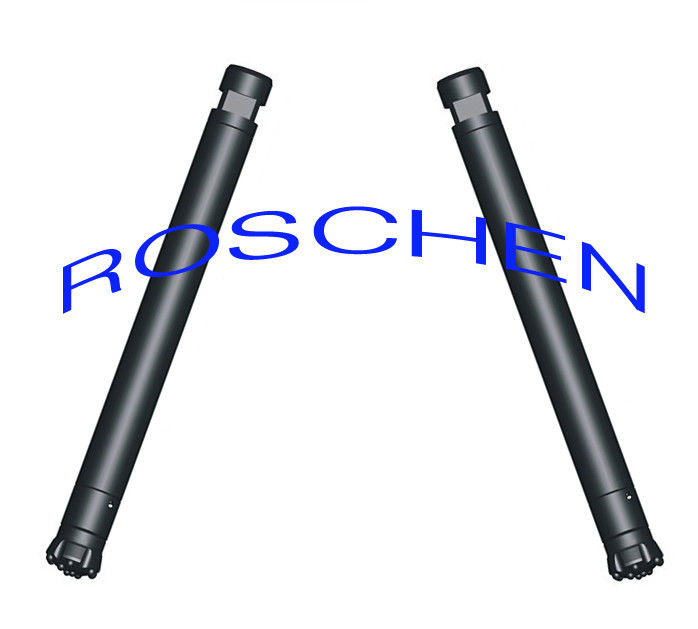

CIR100 Lower Pressure Down The Hole Hammer For Drilling Faster Rock Penetration



Our DTH bits and DTH hammer have various sizes and styles are available and applicable for drilling different kinds of rock formations.


Every bit, made from quality tungsten carbide steel, is precision machined to produce a perfect body. They are then heat-treated to the right hardness, facilitating excellent surface compression and fatigue resistance. Manufactured in-house, each bit is finally fitted with the required shape and sized buttons.


Features:

1. Designed specifically for drilling in holes where water is present.

2. Production rates in wet hole conditions will be optimized due to the innovative technology used to design these hammers.

3. The advanced design provides faster rock penetration using less air.

5
Hardened wear sleeves can be reversed or replaced giving the drill a new life. DOWN THE HOLE BIT A wide range of down the hole bits, these range from 3"to 20" in diameter and fit many hammers such as Ingersoll-Rand, Mission, Atlas Copco etc. For the most effective operation in various drilling conditions, we offer flat face, concave, drop centre head designs.




CIR100 Lower Pressure Down The Hole Hammer For Drilling Faster Rock Penetration 0




Parts List:



1. Top Sub
2. Value Seal
3. Check Valve
4. Spring
5. Compression Buffer
6. O Ring
7. Valve Cover
8. Guided Tube
9. Valve
10. Air Distributor
11. Internal Cylinder
12. Piston
13. External Cylinder
14. Guided Sleeve
15. Stop Ring
16. Drive Chuck
17. Drill Bit




Specifications:


Name of product Length without bit Weight without bit Extemal Dia of Hammer Bit shank Hole range Connection thread Working pressure Impact rate Rotation speed Air consumption
CIR90 800mm 19.00kg Φ80mm CIR90 Φ85-Φ110 T48×10×2 0.5-0.7Mpa 0.5Mpa: 14Hz 25-40r/min 0.5Mpa: 6.5㎥/min 0.7Mpa: 8㎥/min
CTR110 839mm 32.00kg Φ98mm CIR110 Φ110-Φ135 API2 3/8"Reg 0.5-0.7Mpa 0.5Mpa: 14Hz 25-40r/min 0.5Mpa: 9.5㎥/min 0.7Mpa: 11㎥/min
CIR150 908mm 69.00kg Φ137mm CIR150 Φ155-Φ178 T75×10×2.5Box 0.5-0.7Mpa 0.5Mpa: 13Hz 25-40r/min 0.5Mpa: 15㎥/min 0.7Mpa: 17㎥/min





Further products information, please don't hesitate to contact us.
