QL40 QL50 QL60 QL80 DTH Down The Hole Hammer Drilling For Wide Range of Rock Formations

1 set
MOQ
Negotiate
Price
QL40 QL50 QL60 QL80 DTH Down The Hole Hammer Drilling For Wide Range of Rock Formations
Features Gallery Product Description Request A Quote
Features
Specifications
Model: QL 40 50 60 80 Down The Hole Hammer
Name: Down The Hole Hammer, DTH Hammer
Applications: Mineral Drilling, Exploration Core Drilling
Mining Object: Mining, Ore Machinery, Stone Quarry Drilling
Usage: Use Together With DTH Button Bits
Model No.: DHD360, QL60, SD80, COP64, COP84
Series No.: SD, ROS, Cop Br DHD Mission
Material: High Carbon Steel
Drill Diameter: 65-800mm
Machine: Hydraulic Crawler Drill Rig
Drilling: Down The Hole Drilling, DTH Drilling
Tools: Top Hammer Drilling Tools
High Light:

dth drilling tools

,

down hole tools

Basic Infomation
Place of Origin: Germany
Brand Name: ROSCHEN
Certification: ISO
Model Number: QL40 QL50 QL60 QL80
Payment & Shipping Terms
Packaging Details: wooden box
Supply Ability: 1000
Product Description

QL40 QL50 QL60 QL80 DTH Hammers Drilling For Wide Range of Rock Formations




DTH hammer sizes and models available as following:



Types Models
Low air pressure series CIR65, CIR70, CIR80, CIR90, CIR110.
Middle air pressure series BR1, BR2.
High air pressure series 3": BR3, BR33, Cop32, Cop34, DHD3.5, IR3.4, QL30, M30, Mach303, etc.
4": Cop44, SD4, DHD340, M40, Mach44, QL40, etc.
5": Cop54, SD5, DHD350, QL50, M50, Mach50, etc.
6": Cop64, SD6, QL60, DHD360, M60, Mach60, etc.
8": SD8, QL80, DHD380, M80, Mach80, etc.




DTH Hammer



DTH(Down the Hole) hammer is used for drilling holes through a wide range of rock types, the variety of which continues to extend well beyond the original conception of early blast hole drilling.


Down-the-Hole refers to where the hammer action occurs when compared to drifter hammers, which hammer on top of the drill string. The DTH hammer piston always makes direct contact with the drill bit and there is generally no loss of transmitted energy as the hammer drills deeper, as is the case with drifter (top hammer) rigs.



Roschen offers a wide range of DTH hammers suitable for a variety of drilling operations. Our Down the Hole hammers provide the most versatile and cost effective rock drilling method.




The CIR series Hammer DTH for your reference:
Model OD*L(mm) Air pressure (Mpa) Air consumption (m3/min.) Bits Dia.*Shank*Spline No. Impact Frequency (strike/min.) weight (kg)
CIR55 Φ48*657 0.5-0.7 2.0-2.5 55-60*31*4 840 6
CIR60 Φ53*657 0.5-0.7 2.5-3.5 58-65*34*4 840 7
CIR70 Φ61*765 0.5-0.7 3.5 70*42*4 840 9
CIR76 Φ66*765 0.5-0.7 3.5-5.0 76*44*4 840 14
CIR80 Φ78*446 0.5-0.7 4.0-6.0 80*35*45(flat) 940 12
CIR80A Φ72*795 0.5-0.7 5 80*50*6 840 15
CIR80B Φ76*785(4spline) 0.5-0.7 6 90*52*4 810 19
Φ76*777(6spline) 90*54*6
CIR90 Φ80*800 0.5-0.7 7.2 90-100*54*6 840 20
CIR100 Φ90*434 0.5-0.7 8 100-130*50*flat 820 19
CIR100A Φ90*715 0.5-0.7 10 105-115*56*4 820 24
CIR100B Φ95*847 0.5-0.7 12 110-115*60*4 820 30
110-115*65*6
CIR110 Φ98*871 0.5-0.7 12 110-120*65*6 820 37
CIR150B Φ136*908 0.5-0.7 15 150-165*90*8 850 68
CIR150C Φ142*913 0.5-0.7 17 155-165*90*6 850 69
CIR150C Φ135*687 0.5-0.7 13 155*80*8 860 43
CIR170A Φ156*1022 0.5-0.7 19.5 170-175*98*6 840 102
CIR200A Φ188*1120 0.5-0.7 24 210*120*6 840 163





ROSCHEN DTH Bits Specifications
Hammer Size Bits diameter Shank ROSCHEN CODE
Metric Inch
1" 64mm-70mm 2 1/2"-2 3/4" BR1 ROS 11
2" 70mm-95mm 2 3/4"-3 3/4" MACH20/BR2 ROS 22
3" 90mm-102mm 3 1/2"-4" COP32/COP34/MACH303 ROS 32
M30/DHD3.5/BR3 ROS 34
4" 105mm-152mm 4 1/8"-6" COP44/DHD340/MACH44 ROS 42
SD4/M40/QL40 ROS 44
5" 133mm-165mm 5 1/4"-6 1/2" COP54/DHD350R/MACH50 ROS 52
SD5/M50/QL50/BR5 ROS 54
6" 152mm-254mm 4 1/8"-10" COP64/DHD360/SD6 ROS 62

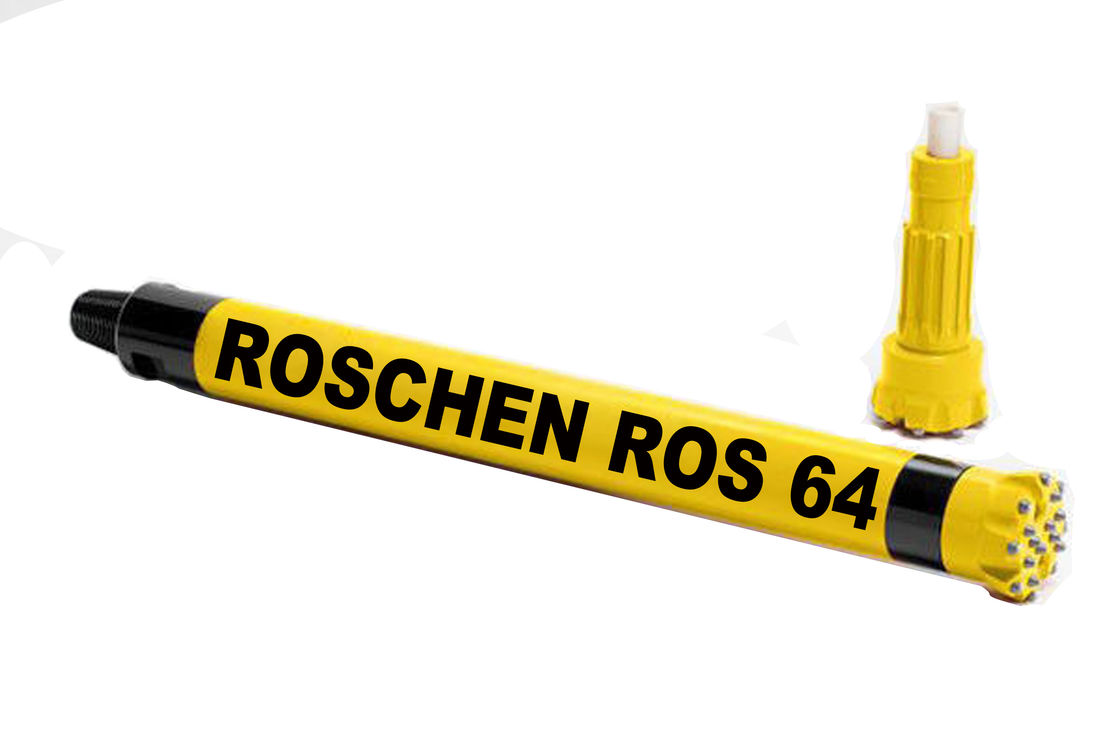

M60/QL60/Bulroc BR6 ROS 64
8" 203mm-330mm 8"-13" COP84/DHD380/SD8 ROS 82
QL80/M80/M85 ROS 84
10" 254mm-380mm 10"-15" SD10 ROS 100
NUMA100
12" 305mm-508mm 12"-20" DHD1120/SD12 ROS 120
NUMA120/NUMA125
Notes: Any special size of DTH bits will be available by requests.
Metzke, Remet thread is available!






FAQ

Terms & Conditions of Ordering:

Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.

Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damage during transportation. Also we can customize package according to your special requests.

Production time:
Generally need 15-25 days

Transportation:
By air, By Express or By sea according to your requests.


1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight

2. Handling time for an order
Based on order quantity, normally it takes 20 days for production.
in 3 working days after receiving the advance payment

3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.

4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.

5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available in any time

6. Quality & Service:
A. There will be strict inspection and testing for every order before shipping out.
B. Our sales team and Technical Support will response for your question within 24 hours through skype: ROSCHEN.TOOL and WhatsApp/Wechat: +86-13764195009
C. Free replacement will provide once the failure confirmed caused or our product quality; Not satisfied with a refund.
