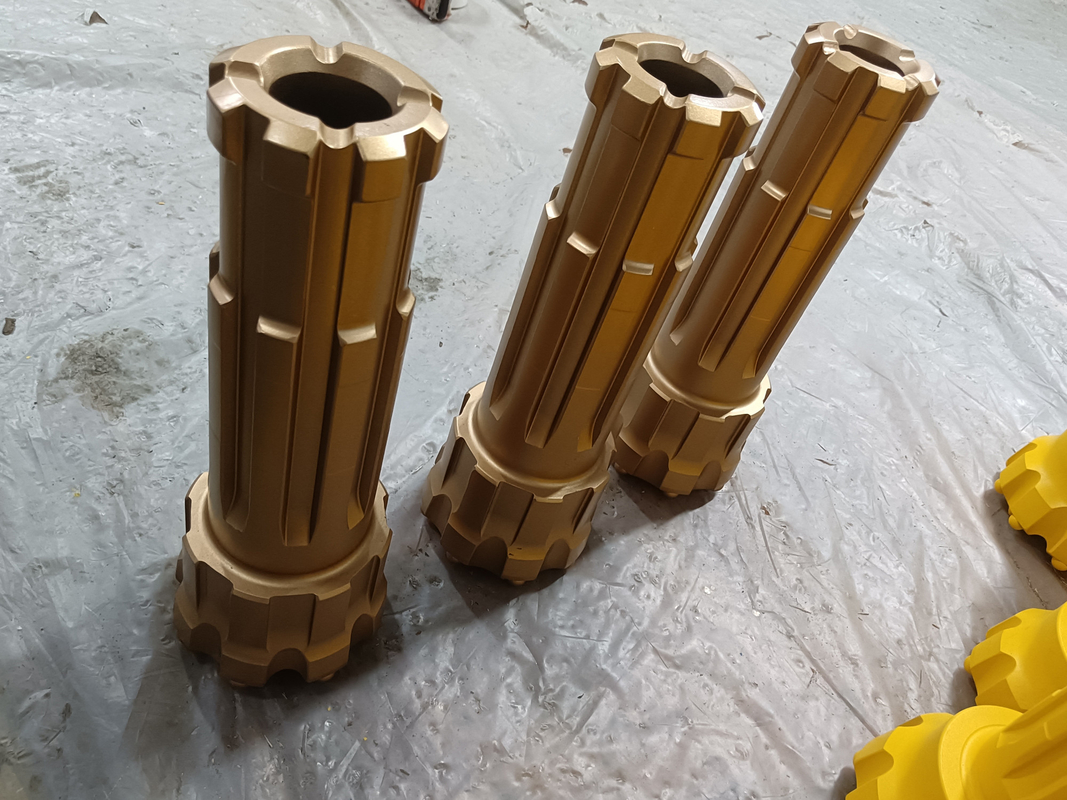

Atlas Copco RC45, RC50 Button bits 130mm 143mm Drop Center Fast Drilling
REVERSE CIRCULATION PERFORMANCE TOOLING
Reverse Circulation (RC) drilling is used to collect rock samples quickly and efficiently using a large rotary drill and air compressor. The high speed and lower cost per meter of RC drilling makes it ideal for obtaining mineral samples in the early phases of an exploration project.
Features:
1. Using higher grade carbides for longer life;
2. Minimizes hole erosion in fragile formations
3. Drills faster through soft formations with less blockages
4. Drills straighter through consolidated and unconsolidated formations
Technical Parameters:
ROSCHEN Reverse Circulation Bits Specifications | ||||||||
RE531 RC bits | ||||||||
ROSCHEN Code: ROS RC 30 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
86 | 3 3/8 | 6x12 | 4x12 | 35 | 2 | 84 | 4.2 | RE531-86 |
89 | 3 1/2 | 8x12 | 8x12 | 35 | 2 | 87 | 4.3 | RE531-89 |
95 | 3 3/4 | 8x12 | 8x12 | 35 | 2 | 93 | 4.6 | RE531-95 |
102 | 4 | 8x12 | 8x12 | 35 | 2 | 100 | 4.9 | RE531-102 |
RE004 RC bits | ||||||||
ROSCHEN Code: ROS RC 40 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
114 | 4 1/2 | 8x14 | 6x14 | 35 | 2 | 112 | 11.5 | RE004-114 |
118 | 4 5/8 | 8x14 | 6x14 | 35 | 2 | 116 | 11.7 | RE004-118 |
121 | 4 3/4 | 8x14 | 6x14 | 35 | 2 | 119 | 12 | RE004-121 |
127 | 5 | 8x14 | 8x14 | 35 | 2 | 125 | 12.4 | RE004-127 |
RE542 | ||||||||
ROSCHEN Code: ROS RC 50 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
121 | 4 3/4 | 8x14 | 6x14 | 35 | 2 | 119 | 10.6 | RE542-121 |
124 | 4 7/8 | 8x14 | 8x13 | 35 | 2 | 122 | 10.8 | RE542-124 |
127 | 5 | 8x14 | 8x14 | 35 | 2 | 125 | 11 | RE542-127 |
130 | 5 1/8 | 8x14 | 10x14 | 35 | 2 | 128 | 11.3 | RE542-130 |
RE543 | ||||||||
ROSCHEN Code: ROS RC 50 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
124 | 4 7/8 | 8x14 | 8X13 | 35 | 2 | 122 | 10.8 | RE543-124 |
127 | 5 | 8x14 | 8X14 | 35 | 2 | 125 | 11 | RE543-127 |
130 | 5 1/8 | 8x14 | 10X14 | 35 | 2 | 128 | 11.3 | RE543-130 |
133 | 5 1/4 | 8x16 | 10X14 | 35 | 2 | 131 | 11.8 | RE543-133 |
RE545 | ||||||||
ROSCHEN Code: ROS RC 50 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
124 | 4 7/8 | 8x14 | 8X13 | 35 | 2 | 122 | 13.3 | RE545-124 |
127 | 5 | 8x14 | 8X14 | 35 | 2 | 125 | 13.5 | RE545-127 |
133 | 5 1/4 | 8x16 | 10X14 | 35 | 2 | 131 | 13.8 | RE545-133 |
136 | 5 3/8 | 8x16 | 6x16+3x14 | 35 | 2 | 134 | 14.2 | RE545-136 |
PR40 RC bit | ||||||||
ROSCHEN Code: ROS RC 50 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
124 | 4 7/8 | 8x14 | 8X13 | 35 | 2 | 122 | 14.3 | PR40-124 |
127 | 5 | 8x14 | 8X14 | 35 | 2 | 125 | 14.7 | PR40-127 |
133 | 5 1/4 | 8x16 | 10X14 | 35 | 2 | 131 | 15.2 | PR40-133 |
138 | 5 4/9 | 8x16 | 6x16+3x14 | 35 | 2 | 136 | 15.8 | PR40-138 |
PR52 RC bit | ||||||||
ROSCHEN Code: ROS RC 55 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
133 | 5 1/4 | 8x16 | 10x14 | 35 | 2 | 131 | 11.2 | PR52-133 |
136 | 5 3/8 | 8x16 | 6x16+3x14 | 35 | 2 | 134 | 11.5 | PR52-136 |
140 | 5 1/2 | 8x16 | 6x16+3x14 | 35 | 2 | 138 | 11.9 | PR52-140 |
143 | 5 5/8 | 8x16 | 6x16+3x14 | 35 | 2 | 141 | 12.3 | PR52-143 |
RE547 RC bit | ||||||||
ROSCHEN Code: ROS RC 55 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
136 | 5 3/8 | 8x16 | 6x16+3x14 | 35 | 2 | 134 | 15.1 | RE547-136 |
140 | 5 1/2 | 8x16 | 6x16+3x14 | 35 | 2 | 138 | 15.5 | RE547-140 |
143 | 5 5/8 | 8x16 | 6x16+3x14 | 35 | 2 | 141 | 15.8 | RE547-143 |
146 | 5 3/4 | 8x16 | 6x16+3x14 | 35 | 2 | 144 | 16.3 | RE547-146 |
PR54 | ||||||||
ROSCHEN Code: ROS RC 55 | ||||||||
Diameter | No x Button diameter mm | Button angle | Flusing holes | Shroud Dia mm | Weight (kgs) | Part No | ||
mm | inch | Gauge Buttons | Front Buttons | |||||
136 | 5 3/8 | 8x16 | 6x16+3x14 | 35 | 2 | 134 | 18.2 | PR54-136 |
140 | 5 1/2 | 8x16 | 6x16+3x14 | 35 | 2 | 138 | 18.5 | PR54-140 |
143 | 5 5/8 | 8x16 | 6x16+3x14 | 35 | 2 | 141 | 18.8 | PR54-143 |
146 | 5 3/4 | 8x16 | 6x16+3x14 | 35 | 2 | 144 | 19.2 | PR54-146 |
Notes: | ||||||||
Metzke, Remet thread is available! | ||||||||
Any special size of Reverse Circulation bits will be available by requests. |
