Reverse Circulation Hammer
>
|
|
| Place of Origin | Germany |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | 5" |

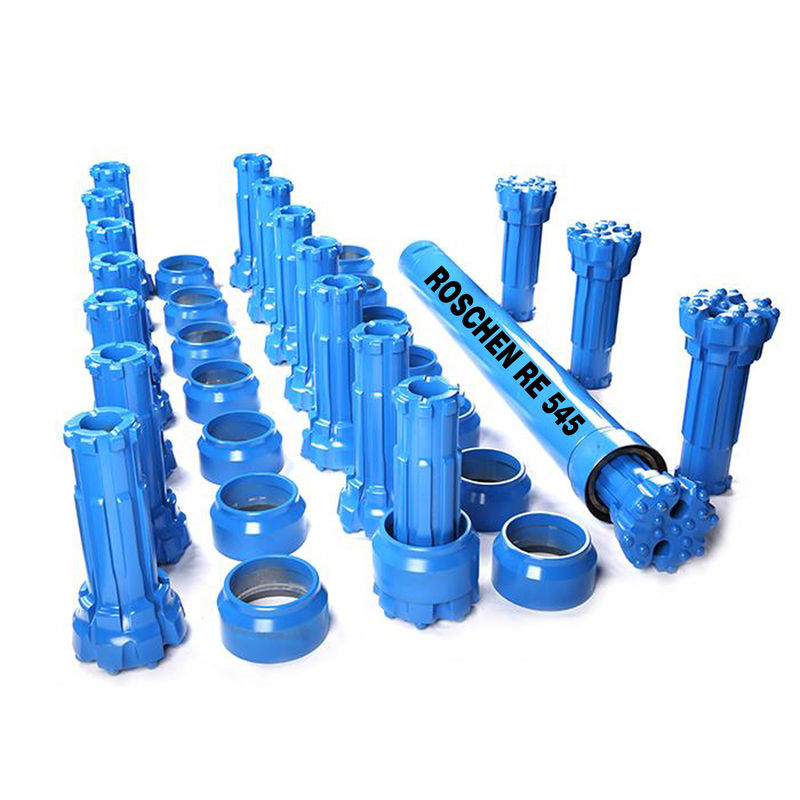

Reverse Circulation Hammer RC Bits And Shrouds Rc Hammer For Re040 Re542/543 Re545 Hammers
Roschen offers a full range of reverse circulation hammers with integrated bits designed to offer a cost effective, heavy-duty sampling system for obtaining a continuous, high quality geological sample. By maximizing the energy output and minimizing air consumption, Roschen's products can assist in providing you with excellent production rates resulting in low cost per meter drilling.
Contact your Roschen representative today.
Reverse Circulation Hammer Specifications:
| Hammer Size | Hammer | Bit Shank | ROSCHEN Code | Hole Range (mm) | External Diameter (mm) | Length (without bit) mm | Weight (N.W.) kgs | Connection Thread | Working Pressure |
| 3" | RE531 | RE531 | ROS RC 30 | 84-100 | 81 | 1069 | 29 | 3“ Remet | 1.0-3.0Mpa |
| 3" | RE035 | RE035 | ROS RC 35 | 84-105 | 85 | 1075 | 35 | 3“ Remet | 1.0-3.0Mpa |
| 4 1/2" | RE004 | RE004 | ROS RC 40 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 4 1/2" | RE540 | RE540 | ROS RC 45 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE040 | RE040 | ROS RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE542 | RE542 | ROS RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE543 | RE543 | ROS RC 50 | 120-135 | 116 | 1191 | 62 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE545 | RE545 | ROS RC 50 | 122-135 | 117.5 | 1261 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | RE547 | RE547 | ROS RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | RE052 | RE052 | ROS RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 3/4" | RE054 | RE054 | ROS RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 3/4" | RE140 | RE140 | ROS RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5" | PR40 | PR40 | ROS RC 50 | 124-142 | 120.5 | 1362 | 80.5 | 3.5"-4.5" Remet 3.5"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR52 | PR52 | ROS RC 55 | 126-142 | 121 | 1227 | 68.5 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR52R | PR52/PR52R | ROS RC 55 | 130-146 | 124 | 1225 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR54 | PR54 | ROS RC 55 | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 6" | MX5456 | MX5456 | ROS RC 60 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 6"~6 1/2" | RC62/RC62R | RC62/RC62R | ROS RC 65 | 152-190 | 146 | 1320 | 110 | As Request | 1.5-3.5Mpa |
| 8" | RC82/RC82R | RC82/RC82R | ROS RC 80 | 190-250 | 180 | 1395 | 185 | As Request | 1.5-3.5Mpa |
| 10" | RC100/RC100R | RC100/RC100R | ROS RC 100 | 250-370 | 240 | 1528 | 328 | As Request | 1.5-3.5Mpa |
| Notes: Metzke, Remet thread is available! | |||||||||
Reverse Circulation Bits of Specifications:
| BIT ASORTMENT | |||
| Part No. | Size mm | Size inch | Recommended shroud |
| Hammer RE040 | |||
| 63-040-500DC | 127 | 5 | 40-[ ]-415 |
| 63-040-500HF | 127 | 5 | 40-[ ]-415 |
| 63-040-502DC | 130,2 | 5 1/8 | 40-[ ]-501 |
| 63-040-502HF | 130,2 | 5 1/8 | 40-[ ]-501 |
| 63-040-504DC | 133,4 | 5 1/4 | 40-[ ]-503 |
| 63-040-504HF | 133,4 | 5 1/4 | 40-[ ]-503 |
| 63-040-506DC | 136,5 | 5 3/8 | 40-[ ]-505 |
| 63-040-506HF | 136,5 | 5 3/8 | 40-[ ]-505 |
| 63-040-508DC | 139,7 | 5 1/2 | 40-[ ]-507 |
| 63-040-508HF | 139,7 | 5 1/2 | 40-[ ]-507 |
| 63-040-608 | 165,1 | 6 1/2 | 40-[ ]-607 |
| 63-040-708 | 190,5 | 7 1/2 | 40-[ ]-707 |
| 63-040-800 | 203,2 | 8 | 40-[ ]-714 |
| Hammer RE542 | Hammer RE543 | ||
| 63-542-412CF | 120,7 * | 4 3/4 * | 40-[ ]-411 |
| 63-542-412DC | 120,7 * | 4 3/4 * | 40-[ ]-411 |
| 63-542-412HF | 120,7 * | 4 3/4 * | 40-[ ]-411 |
| 63-542-414CF | 123,8 | 4 7/8 | 40-[ ]-413 |
| 63-542-414DC | 123,8 | 4 7/8 | 40-[ ]-413 |
| 63-542-414HF | 123,8 | 4 7/8 | 40-[ ]-413 |
| 63-542-500CF | 127 | 5 | 40-[ ]-415 |
| 63-542-500DC | 127 | 5 | 40-[ ]-415 |
| 63-542-500HF | 127 | 5 | 40-[ ]-415 |
| 63-542-502CF | 130,2 | 5 1/8 | 40-[ ]-501 |
| 63-542-502DC | 130,2 | 5 1/8 | 40-[ ]-501 |
| 63-542-502HF | 130,2 | 5 1/8 | 40-[ ]-501 |
| 63-542-504CF | 133,4 | 5 1/4 | 40-[ ]-503 |
| 63-542-504DC | 133,4 | 5 1/4 | 40-[ ]-503 |
| 63-542-600 | 152,4 | 6 | 40-[ ]-515 |
| 63-542-608 | 165 | 6 1/2 | 40-[ ]-607 |
| * Suitable for RE542 only | |||
| Hammer RE545 | |||
| 63-545-414DC | 123,8 | 4 7/8 | 40-[ ]-413 |
| 63-545-414HF | 123,8 | 4 7/8 | 40-[ ]-413 |
| 63-545-500CF | 127 | 5 | 40-[ ]-415 |
| 63-545-500DC | 127 | 5 | 40-[ ]-415 |
| 63-545-502CF | 130,2 | 5 1/8 | 40-[ ]-501 |
| 63-545-504CF | 133,4 | 5 1/4 | 40-[ ]-503 |
| 63-545-504DC | 133,4 | 5 1/4 | 40-[ ]-503 |
| 63-545-504HF | 133,4 | 5 1/4 | 40-[ ]-503 |
| 63-545-506CF | 136,5 | 5 3/8 | 40-[ ]-505 |
| 63-545-506HF | 136,5 | 5 3/8 | 40-[ ]-505 |
| 63-545-508CF | 139,7 | 5 1/2 | 40-[ ]-507 |
| 63-545-508HF | 139,7 | 5 1/2 | 40-[ ]-507 |
| 63-545-608 | 165,1 | 6 1/2 | 40-[ ]-607 |
| 63-545-612 | 172 | 6 3/4 | 40-[ ]-611 |
| 63-545-708 | 190,5 | 7 1/2 | 40-[ ]-707 |
| Bit assemblies include a hardened (non-coated) shroud 1,6 mm (1/16 inch) smaller than the bit diameter | |||
| HARDENED SHROUDS | ||
| Part No. | Size mm | Size inch |
| Hammer RE040 | ||
| 40-040-413 | 122,2 | 4 13/16 |
| 40-040-414 | 123,8 | 4 7/8 |
| 40-040-415 | 125,4 | 4 15/16 |
| 40-040-500 | 127 | 5 |
| 40-040-501 | 128,6 | 5 1/16 |
| 40-040-502 | 130,2 | 5 1/8 |
| 40-040-503 | 131,7 | 5 3/16 |
| 40-040-504 | 133,4 | 5 1/4 |
| 40-040-505 | 134,9 | 5 5/16 |
| 40-040-506 | 136,5 | 5 3/8 |
| 40-040-507 | 138,1 | 5 7/16 |
| 40-040-607 | 163,5 | 6 7/16 |
| 40-040-707 | 188,5 | 7 7/16 |
| 40-040-714 | 200 | 7 7/8 |
| Hammer RE542 | Hammer RE543 | |
| 40-542-407 | 112,7 * | 4 7/16 * |
| 40-542-408 | 114,3 * | 4 1/2 * |
| 40-542-409 | 115,9 * | 4 9/16 * |
| 40-542-410 | 117,5 * | 4 5/8 * |
| 40-542-411 | 119,1 | 4 11/16 |
| 40-542-412 | 120,7 | 4 3/4 |
| 40-542-414 | 123,8 | 4 7/8 |
| 40-542-415 | 125,4 | 4 15/16 |
| 40-542-500 | 127 | 5 |
| 40-542-501 | 128,6 | 5 1/16 |
| 40-542-503 | 131,7 | 5 3/16 |
| 40-542-515 | 150 | 5 15/16 |
| 40-542-607 | 163,5 | 6 7/16 |
| * Suitable for RE542 only | ||
| Hammer RE545 | ||
| 40-545-413 | 122,2 | 4 13/16 |
| 40-545-414 | 123,8 | 4 7/8 |
| 40-545-415 | 125,4 | 4 15/16 |
| 40-545-500 | 127 | 5 |
| 40-545-501 | 128,6 | 5 1/16 |
| 40-545-502 | 130,2 | 5 1/8 |
| 40-545-503 | 131,7 | 5 3/16 |
| 40-545-504 | 133,4 | 5 1/4 |
| 40-545-505 | 134,9 | 5 5/16 |
| 40-545-506 | 136,5 | 5 3/8 |
| 40-545-507 | 138,1 | 5 7/16 |
| 40-545-508 | 139,7 | 5 1/2 |
| 40-545-607 | 163,5 | 6 7/16 |
| 40-545-611 | 170 | 6 11/16 |
| 40-545-707 | 188,5 | 7 7/16 |
Roschen recommends using only Roschen quality manufactured parts. Roschen does not guarantee the consistency or quality of other manufacturers.
