NX Diamond Core Drill Bits For Hardness Rock Formation Series 7 For Exploration Core Drilling
  • NX Diamond Core Drill Bits For Hardness Rock Formation Series 7 For Exploration Core Drilling
  • NX Diamond Core Drill Bits For Hardness Rock Formation Series 7 For Exploration Core Drilling
  • NX Diamond Core Drill Bits For Hardness Rock Formation Series 7 For Exploration Core Drilling

NX Diamond Core Drill Bits For Hardness Rock Formation Series 7 For Exploration Core Drilling

Place of Origin China,Germany
Brand Name ROSCHEN
Certification ISO
Model Number HX NX BX
Product Details
Type:
Diamond Core Bits
Model Number:
HX NX BX
Use:
Core Drilling, Well Drilling, Diamond Drilling
Materials:
Diamonds
Core Barrel::
Single Tube Core Barrel, Double Tube, Triple Tube Core Barrel
Suitable Formations:
Medium, Medium Hard, Very Hard, Ultra Hard
Processing Type:
Forging
Series:
Wireline Diamond Core Bits
Model:
Impregnated Diamond Core Bits
Drilling:
Exploration Core Drilling
Drills:
Wireline Core Drilling
Mining:
Australia Mining
Exploration:
Australia Exploration
Item:
Mining Exploration Core Drilling
Usage:
Africa Mining
Applications:
Copper Mining Drilling
High Light:

Diamond Core Drilling Bits

,

Diamond Core Drill Bits For Rock

Payment & Shipping Terms
Minimum Order Quantity
1-5 pcs
Price
Negotiate
Packaging Details
Carton box
Supply Ability
1000 pcs
Product Description

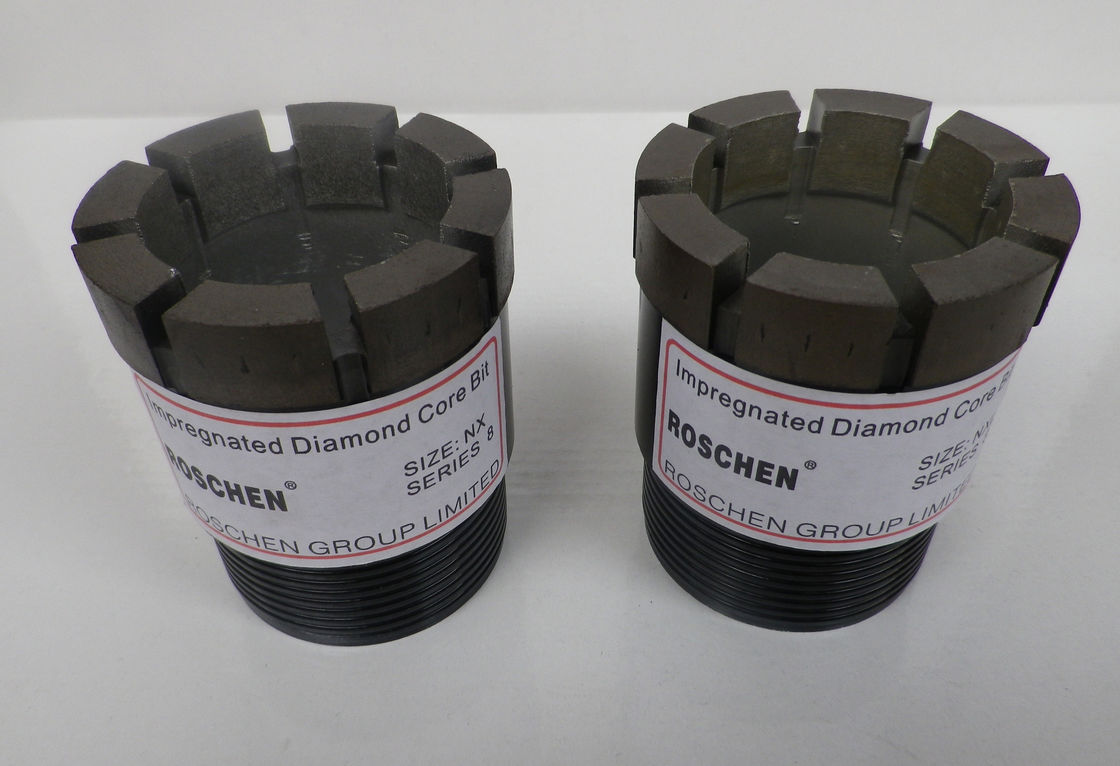

NX diamond core drill bits for hardness rock formation Series 7 for exploration core drilling




NX Diamond Core Drill Bits


Impregnated Diamond Core Bits are manufactured with very small, high quality synthetic diamonds, mixed evenly through a metal alloy matrix. The matrix erodes away at the same rate as the diamonds become worn and rounded. Thus new sharp diamonds are exposed to continue cutting through the rock. In most geological formations, impregnated bits are more economical to use than other bits.

Depending on the range of application as well as the cutting media on the core bits, Roschen makes six types of core bits:

---Impregnated Diamond Type
---Surface set Diamond Type
---Tungsten Carbide Type
---PDC Type
---PCD Type
---Electroplated Diamond Type



Generally, an overall Drilling System consist of core bits, reaming shells, core barrels, drill rods and drilling rig.


Core Bits are used for drilling materials like the rock, concrete etc.



Size:


Wireline series: Geobor S, WLA, WLB, WLN, WLH, WLP, WLB3, WLN3, WLH3, WLP3, WLN2, AQ, BQ, NQ, HQ, PQ, SQ, PQ3, HQ3, NQ3, BQ3, NQ2, WL-56, WL-66, WL-76
T2 / T series: T2 46, T2 56, T2 66, T2 76, T2 86, T2 101, T46, T56, T66, T76, T86
TT series: TT 46, TT 56
T6 series: T6 76, T6 86, T6 101, T6 116, T6 131, T6 146
T6S series: T6S 76, T6S 86, T6S 116, T6S 131, T6S 146
B series: B46, B56, B66, B76, B86, B101, B116, B131, B146
MLC series: NMLC, HMLC
LTK series: LTK48, LTK60
WF series: HWF, PWF, SWF, UWF, ZWF
WT series: RWT, EWT, AWT, BWT, NWT, HWT(Single Tube, Double Tube)
WG series: EWG, AWG, BWG, NWG, HWG(Single Tube, Double Tube)
WM series: EWM, AWM, BWM, NWM, HWM
Other sizes: AX, BX, NX, HX, TBW, NQTT, HQTT, TNW, 412F, BTW, TBW, NTW, HTW, T6H
Chinese standard: 56mm, 59mm, 75mm, 89mm, 91mm, 108mm, 110mm, 127mm, 131mm, 150mm, 170mm, 219mm, 275mm
Russian standard: 59, 76, 93, 112, 132, 152 mm



FAQ

Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.

Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.

Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.

Q: How about discount?
A: Price is based on products and order quantity.

Q: Do you accept sample order?
A: Yes sure, please contact us for details.

Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.

Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.
