Down The Hole Hammer
>
|
| Place of Origin | USA, UK |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | 850, COP 84, SD8 |

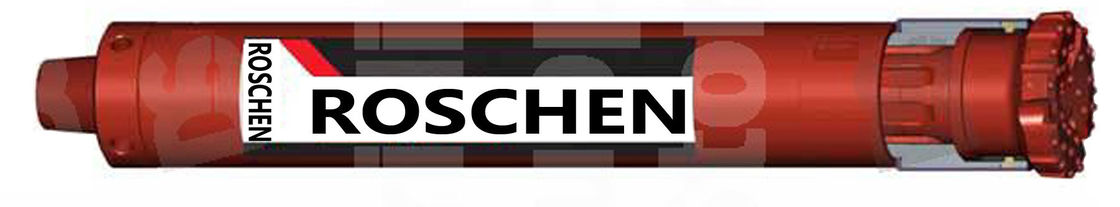

Halco Dominator 850 DTH Hammer
Halco Dominator 850 DTH Hammer Using Highest quality heat treated nickel chrome alloy steels
Using the highest quality heat treated nickel chrome alloy steels and processes that meet ISO9001:2008 standards.
Air Hammers
A world class manufacturer of DTH drilling equipment
Roschen designs and manufactures to exacting standards, Roschen DTH hammers deliver outstanding performance, productivity and longevity.
Customers also enjoy the versatility and variety, allowing the use of Roschen DTH hammers on a wide range of rock-drilling applications. Our drill bits have superb performance and long life which make Roschen DTH drill bits a world leader.
All our Hammers are built using our State-Of-The-Art lean manufacturing plants.
Using the highest quality heat treated nickel chrome alloy steels and processes that meet ISO9001:2008 standards.
With DTH drilling the power is always on the "Business End" so you will see a faster rate of penetration in medium to hard ground conditions.
You can expect a longer life from your DTH Drilling equipment because the hammer does all the work less pressure is required from your Rig.
The Dominator 850 has been designed for high performance drilling in hard to medium rock formations, particularly mining applications.
Its class leading performance has been achieved with a larger piston and valveless air cycle providing 50% increase in stroke.
The Dominator 850 has a reversible cylinder for prolonged hammer life and benefits from a one piece top adaptor with N.R.V (Non-Return-Valve), this makes it easier to maintain and service the hammer.
| Hammer Dominator 850 | ||
| Part Number | 600245 | 600400 |
| Shank | QL80 | QL80 |
| Top Thread | 4 1/2" API Reg Pin | 4 1/2" API Reg Pin |
| Hammer Flat Size | 125mm (4.921") | 149mm (5.866") |
| Weight | 210Kg | 210Kg |
| Outside Diameter | 192mm (7.559") | 192mm (7.559") |
| Make Up Length | 1281mm (50.433") | 1281mm (50.433") |
| Recommended | 2000Kg (4400 lbs) | 2000Kg (4400 lbs) |
| Maximum Thrust | ||
| Overview | ||
| Hammer Type | Dominator 850 | |
| Part Number | 600245 | 600400 |
| Shank | QL80 | QL80 |
| Top Thread | 4 1/2 API Reg Pin | 4 1/2" API Reg Pin |
| Hammer Flat Size | 125mm (4.92") | 149mm (5.866") |
| Weight | 210 kg | 210 kg |
| Outside Diameter | 192mm (7.559") | 192mm (7.559") |
| Make Up Length | 1281mm (50.433") | 1281mm (50.433") |
| Recommended Maximum Thrust | 2000 kg (4400 lbs) | 2000 kg (4400 lbs) |
| Drill Bit Overview | |||||||
| QL80 Series Hammer | |||||||
| Part Number | Diameter | Face | Buttons | Oversize | Oversize | Weight | |
| mm | inch | Design | Type | Qty & Dia. | (Kg) | ||
| 653379 | 203 | 8 | Concave | Parabolic | 24 x 18mm | 51 | |
| 653062 | 222 | 8 3/4 | Concave | Dome | 16 x 18mm | 56.8 | |
| 653399 | 229 | 9 | Concave | Dome | 19 x 18mm | 57.1 | |
| 653456 | 230 | 9 1/2 | Concave | Dome | 20 x 16mm | 59.5 | |
DTH Hammer Specifications:
| Hammers | Bit Shank | Connection Thread | Suitable bit | Working pressure | Air consumption | |
| 2" | BR2 | RD50 box | ￠70-￠90mm | 0.7-1.75Mpa | 0.7Mpa | 4.5m3/min |
| 1.0Mpa | 4m3/min | |||||
| 1.4Mpa | 5m3/min | |||||
| 3" | DHD3.5 | API 2 3/8"Reg | ￠90-￠110mm | 1.0-1.5Mpa | 1.0Mpa | 4.5m3/min |
| COP32/COP34 | ||||||
| M30 | 1.5Mpa | 9m3/min | ||||
| 4" | DHD340 | API 2 3/8"Reg | ￠110-￠135mm | 1.0-2.5Mpa | 1.0Mpa | 6m3/min |
| COP44 | ||||||
| QL40 | ||||||
| SD4 | 1.8Mpa | 10m3/min | ||||
| M40 | 2.4Mpa | 15m3/min | ||||
| 5" | DHD350 | API 2 3/8"Reg/API 3 1/2"Reg | ￠135-￠155mm | 1.0-2.5Mpa | 1.0Mpa | 9m3/min |
| COP54 | ||||||
| QL50 | ||||||
| SD5 | 1.8Mpa | 15m3/min | ||||
| M50 | 2.4Mpa | 23m3/min | ||||
| 6" | DHD360 | API 3 1/2"Reg | ￠155-￠190mm | 1.0-2.5Mpa | 1.0Mpa | 10m3/min |
| COP64 | ||||||
| QL60 | ||||||
| SD6 | 1.8Mpa | 20m3/min | ||||
| M60 | 2.4Mpa | 28.5m3/min | ||||
| 8" | DHD380 | API 4 1/2"Reg | ￠195-￠254mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min |
| COP84 | ||||||
| QL80 | 1.8Mpa | 26m3/min | ||||
| SD8 | 2.4Mpa | 34m3/min | ||||
| 10" | SD10 | API 6 5/8"Reg | ￠254-￠311mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min |
| Numa100 | 1.8Mpa | 40m3/min | ||||
| 2.4Mpa | 55m3/min | |||||
| 12" | DHD1120 | API 6 5/8"Reg | ￠305-￠445mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
| SD12 | 1.8Mpa | 56m3/min | ||||
| Numa120 | 2.4Mpa | 78m3/min | ||||
