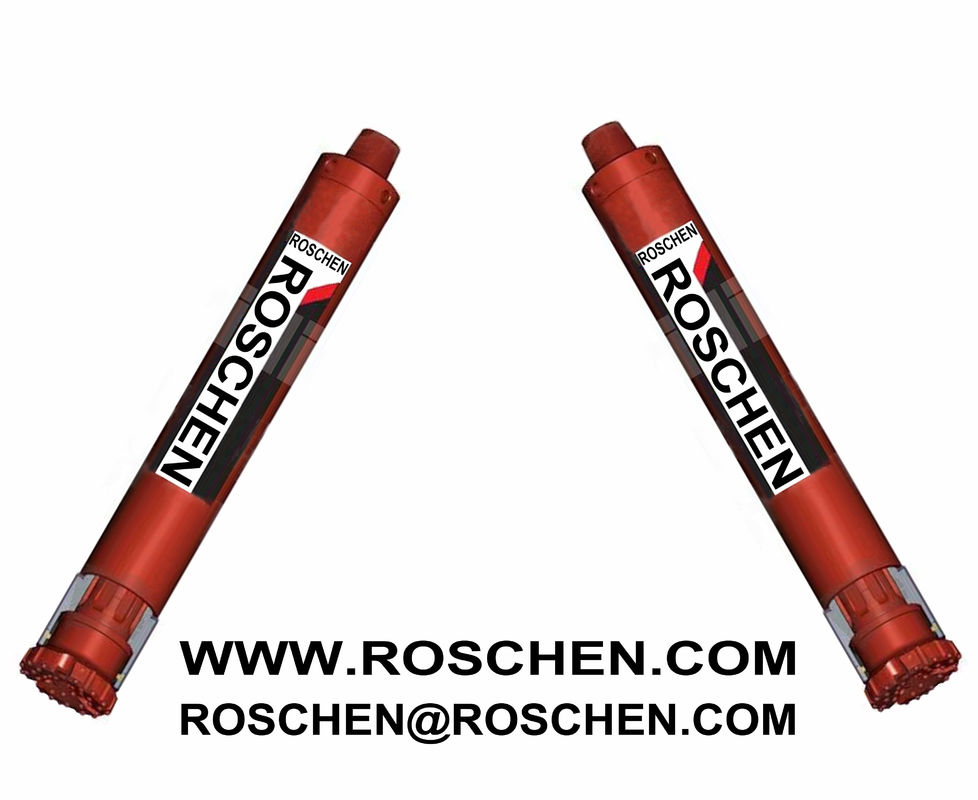

Halco RC5 Hammer Remet 4 1/2" Thread Reverse Circulation Hammer for Water Well Drilling
Water Well Drilling Reverse Circulation hammers Halco RC5 Remet 4 1/2" Thread
Halco RC5 Hammer Remet 4 1/2"
The RC5 has been designed to give maximum performance in Exploration and Grade Control applications. The new Roschen® RC5 provides improved performance and a robust design. With no inner liner, the RC5 has a simple design that reduces complicated maintenance procedures providing less down time and greater savings. The Roschen® RC5 is fitted with a reversible cylinder to prolong service life in abrasive conditions.
The Roschen Halco RC5 is equipped with a bit catcher to help retrieve shanked bits and collar the hole.
The RC5 also has a sub adaptor body to suit most dual wall drill pipe.
Suitable for operation at air pressures of 100 - 435 psi (7 - 30 bar).
Drilling diameters of 137 - 190 mm (5 3/8 - 7 1/2").
| HAMMER OVERVIEW | |||
| Hammer Type | RC5 | ||
| Part Number | 600371 | 600372 | |
| Shank | Halco RC5 | ||
| Top Thread | Remet 41/2" | Metzke 41/2" | |
| Weight | 81.6 kg | ||
| Outside Diameter | 130mm ( 5.118" ) | ||
| Make Up Length | 1285 mm (50.600") | ||
| PART LIST | |||
| Hammer Type | RC 5 | ||
| Shank | Remet 4 1/2" | Metzke 4 1/2" | |
| Model Number | 600371 | 600372 | |
| 1 | Thread Protector | 741027 | |
| 2 | Top-Adaptor | 604222 | 604239 |
| 3 | O’Ring | 768165 | |
| 4 | Circlip | 756015 | |
| 5 | N.R.V. Seat & Filter | 604223 | |
| 6 | O Rings | 768041 | |
| 7 | O Rings | 747121 | - |
| 8 | Upper Sample Tube | 604262 | 604261 |
| 9 | Non Return Valve | 604225 | |
| 10 | U Seal | 748098 | |
| 11 | N.R.V. Spring | 760115 | |
| 12 | Distributor Cap | 604291 | |
| 13 | O Ring | 768133 | |
| 14 | Shim 4.5mm | 604226 | |
| Shim 5mm | 604227 | ||
| Shim 5.5mm | 604228 | ||
| 15 | Ringfeder Spring | 760109 | |
| 16 | O’Ring | 768045 | |
| 17 | O’Ring | 768127 | |
| 18 | Air Distributor | 604236 | |
| 19 | Retaining Ring | 604313 | |
| 20 | Sample Tube | 604290 | |
| 21 | Piston | 604244 | |
| 22 | Cylinder | 604218 | |
| 23 | Retaining Ring | 604313 | |
| 24 | Piston Guide Bush | 604242 | |
| 25 | Snap Ring | 783009 | |
| 26 | Bit Retaining Rings | 604019 | |
| 27 | O Ring | 768091 | |
| 28 | Bit Catcher | See Below | |
| 29 | Bit Catcher Key | 603142 | |
| 30 | Chuck * | 604011 | |
| 31 | End Cap | 741053 | |
| SK | Service Kit | SK62 | SK63 |
| RK | Repair Kit | RK96 | RK97 |
| DRILL BITS | |||||
| Bit | Diameter | Face | Button | Weight | |
| Part No | mm | inch | Design | Type | (kg) |
| Halco RC | |||||
| 653199 | 137 | 5 3/8 | Concave | Domed | 18.5 |
| 653200 | 140 | 5 1/2 | Concave | Domed | 18.7 |
| 653321 | 143 | 5 5/8 | Concave | Domed | 20.6 |
| 653201 | 146 | 5 3/4 | Concave | Domed | 18.9 |
| 653202 | 156 | 6 1/8 | Concave | Domed | 20 |
| 653203 | 159 | 6 1/4 | Concave | Domed | 21 |
| 653214 | 190 | 7 1/2 | Concave | Domed | 24 |
| RC5 Bit Catcher | |
| Part No | Outside Diameter |
| 604030 | 133.00 / 133.25 |
| 604016 | 136.00 / 136.25 |
| 604356 | 139.00/139.25 |
| 604031 | 142.00 / 142.25 |
| 604032 | 152.00 / 152.25 |
| 604033 | 155.50 / 155.25 |
| 604102 | 185.00 / 185.25 |
| ROSCHEN RC Hammers Specifications | |||||||||
| Hammer Size | Hammer | Bit Shank | ROSCHEN Code | Hole Range (mm) | External Diameter (mm) | Length (without bit) mm | Weight (N.W.) kgs | Connection Thread | Working Pressure |
| 3" | RE531 | RE531 | ROS RC 30 | 84-100 | 81 | 1069 | 29 | 3“ Remet | 1.0-3.0Mpa |
| 3" | RE035 | RE035 | ROS RC 35 | 84-105 | 85 | 1075 | 35 | 3“ Remet | 1.0-3.0Mpa |
| 4 1/2" | RE004 | RE004 | ROS RC 40 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 4 1/2" | RE540 | RE540 | ROS RC 45 | 111-127 | 107 | 1252 | 52 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE040 | RE040 | ROS RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE542 | RE542 | ROS RC 50 | 113-130 | 109.5 | 1191 | 57 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE543 | RE543 | ROS RC 50 | 120-135 | 116 | 1191 | 62 | 3.5"-4" Remet 4" Metzke | 1.0-3.0Mpa |
| 5" | RE545 | RE545 | ROS RC 50 | 122-135 | 117.5 | 1261 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | RE547 | RE547 | ROS RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | RE052 | RE052 | ROS RC 55 | 130-146 | 124.5 | 1270 | 71 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 3/4" | RE054 | RE054 | ROS RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5 3/4" | RE140 | RE140 | ROS RC 55 | 130-146 | 124.5 | 1270 | 85 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 5" | PR40 | PR40 | ROS RC 50 | 124-142 | 120.5 | 1362 | 80.5 | 3.5"-4.5" Remet 3.5"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR52 | PR52 | ROS RC 55 | 126-142 | 121 | 1227 | 68.5 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR52R | PR52/PR52R | ROS RC 55 | 130-146 | 124 | 1225 | 65 | 4"-4.5"Remet 4"-4.5" Metzke | 1.5-3.5Mpa |
| 5 1/2" | PR54 | PR54 | ROS RC 55 | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 6" | MX5456 | MX5456 | ROS RC 60 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5" Metzke | 1.5-3.5Mpa |
| 6"~6 1/2" | RC62/RC62R | RC62/RC62R | ROS RC 65 | 152-190 | 146 | 1320 | 110 | As Request | 1.5-3.5Mpa |
| 8" | RC82/RC82R | RC82/RC82R | ROS RC 80 | 190-250 | 180 | 1395 | 185 | As Request | 1.5-3.5Mpa |
| 10" | RC100/RC100R | RC100/RC100R | ROS RC 100 | 250-370 | 240 | 1528 | 328 | As Request | 1.5-3.5Mpa |
| Notes: | |||||||||
| Metzke, Remet thread is available! | |||||||||
| Any special type shank of RC Hammer will be available by requests. | |||||||||
