Reverse Circulation Hammer
>
|
| Place of Origin | Germany,China |
| Brand Name | ROSCHEN |
| Certification | ISO,CE |
| Model Number | ROS44 |

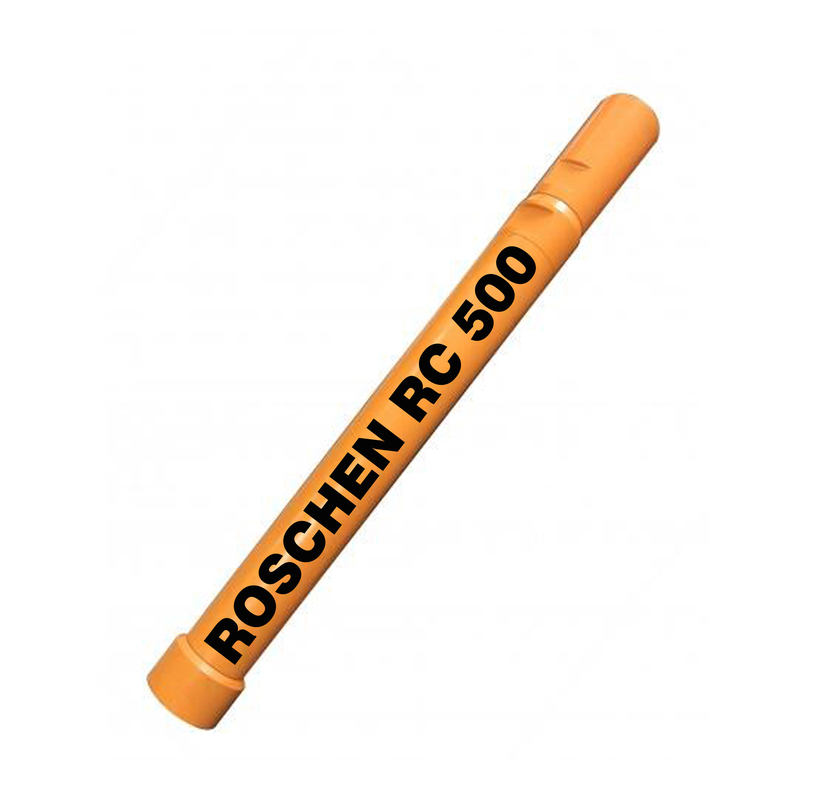

Halco RC412 Hammer Remet 4"
Halco RC412 Hammer Remet 4" RC Drilling Engineering Projects For Reverse Circulation
Roschen reverse circulation hammer for Mining, quarries, highways and other projects drilling blasting holes, retaining the hole, the mountain reinforcement, anchoring and other engineering holes, geothermal air conditioning holes, wells and other fields.
The RC412 has been designed to give maximum performance in Exploration and Grade Control applications. These hammers have a one piece “integral top-adaptor” which is robust and simple requiring no make-up components, this gives reliability and ease of service. At higher pressures the RC hammers make easy going of even the hardest of rock structures.
RC412 is equipped with a bit catcher to help retrieve shanked bits and collar the hole. The RC4/412 also has a sub adaptor body to suit most dual wall drill pipe.
Suitable for operation at air pressures of 100 - 435 psi (7 - 30 bar).
Drilling diameters of 121 - 136 mm (4 3/4 - 5 3/8").
| HAMMER OVERVIEW | |||
| Hammer Type | RC412 | ||
| Part Number | 600339 | 600341 | |
| Shank | Halco RC412 | ||
| Top Thread | Remet 4" | Metzke 4" | |
| Weight | 69 kg | ||
| Outside Diameter | 116mm ( 4.567" ) | ||
| Make Up Length | 1393 mm (54.842") | ||
| PART LIST | |||
| Hammer Type | RC 412 | ||
| Shank | Remet 4" | Metzke 4" | |
| Model Number | 600339 | 600341 | |
| Item | Description | Part Number | Part Number |
| Sub Adaptor Assy | 600611 | 600613 | |
| 1 | O’Rings | 747120 | |
| 2 | Tube Connector | 603848 | 603853 |
| 3 | O’Rings | 768099 | |
| 4 | Sub Adaptor Body | 603966 | 603968 |
| 5 | Spider | 603821 | |
| 6 | Snap Ring | 777019 | |
| 7 | Sample Tube Spring | 760139 | |
| 8 | Upper Sample Tube | 603824 | |
| Base Hammer | 600608 | ||
| 9 | Circlip | 777044 | |
| 10 | N.R.V. Seat & Filter | 603823 | |
| 11 | O’Ring | 768135 | |
| 12 | Quad-Ring Seal | 768148 | |
| 13 | Non Return Valve | 603828 | |
| 14 | N.R.V. Spring | 760140 | |
| 15 | Top-Adaptor Assy | 603972 | |
| 16 | O’Ring | 768127 | |
| 17 | O’Ring | 768133 | |
| 18 | Sample Tube | 603917 | |
| 19 | Cylinder | 603971 | |
| 20 | Piston | 603831 | |
| 21 | Snap Ring | 783031 | |
| 22 | Guide Bush | 603921 | |
| 23 | O’Ring | 768183 | |
| 24 | Bit Retaining Ring | 603920 | |
| 25 | O’Ring | 792037 | |
| 26 | Bit Catcher | See Below | |
| 27 | Key | 603142 | |
| 28 | Chuck | 603953 | |
| SK | Service Kit | SK52 | |
| RK | Repair Kit | RK86 | |
| DRILL BITS | |||||
| Bit | Diameter | Face | Button | Weight | |
| Part No | mm | inch | Design | Type | (kg) |
| Halco RC 412 | |||||
| 653178 | 121 | 4 3/4 | Concave | Domed | 13.7 |
| 653179 | 127 | 5 | Concave | Domed | 14.3 |
| 653177 | 130 | 5 1/8 | Concave | Domed | 14.5 |
| 653164 | 133 | 5 1/4 | Concave | Domed | 14.7 |
| 653194 | 136 | 5 3/8 | Concave | Domed | 15 |
| RC412 Bit Catcher | |
| Part No | Outside Diameter |
| 603955 | 118.00 / 118.25 |
| 603956 | 119.50 / 119.75 |
| 603957 | 121.00 / 121.25 |
| 603958 | 122.50 / 122.75 |
| 603959 | 124.00 / 124.25 |
| 603960 | 125.50 / 125.75 |
| 603961 | 127.00 / 127.25 |
| 603962 | 128.50 / 128.75 |
| 603963 | 130.00 / 130.25 |
| 603923 | 131.50 / 131.75 |
| 604013 | 133.00 / 133.25 |
