Down The Hole Hammer
>
|
| Place of Origin | GERMANY CHINA |
| Brand Name | ROSCHEN |
| Certification | ISO,CE |
| Model Number | ROS54 |

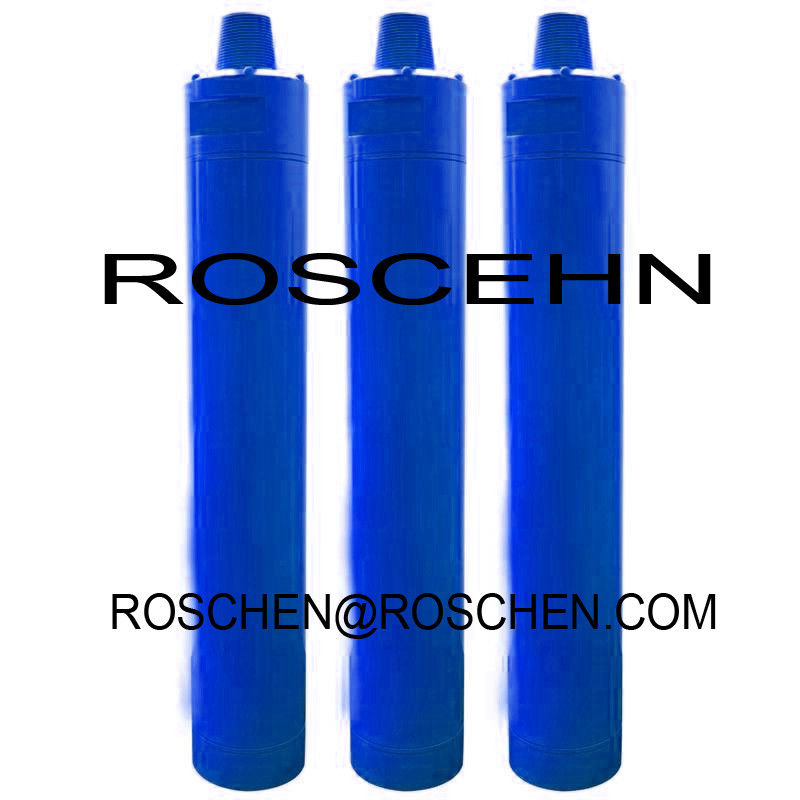

D55A DTH Hammer (Cop54, DHD350R)
COP 54, DHD 350R Down The Hole Hammer
D55A DTH Hammer COP 54, DHD 350R Down The Hole Hammer Used For High Roads Hole Drilling
| Basic Info | |
| Model NO | Cop54, DHD350R |
| Mining Object | Mining |
| Origin | Germany, China |
| Type | Drilling Machine |
| Trademark | ROSCHEN |
| HS Code | 84123100 |
| Mining Object | Mining, Ore Machinery, Stone Quarry |
| Usage | Use Together with DTH Button Bits |
| Aplication | DTH Drilling. Coal Mining, Quarry |
| Drill Diameter | 65-305mm |
| Transport Package | Ply wood Box |
DTH Hammer
The Down The Hole Hammer is an integral part of the submersible drilling rig and belongs to the working device of the downhole drilling rig. DTH Hammer are divided into low-pressure submersible impacters, stroke pressure dive impacters and high pressure dive impacters.
Widely used in metallurgy, coal, chemical, building materials are not busy mines and water conservancy, hydropower, roads, railways, defense, construction and other projects into the hole, suitable for dry and wet operation hole water wind and water mixture, and borehole gushing wet operation, reliable performance, is now the ideal drilling hole equipment.
Product Description:
It is a kind of high air pressure DTH Hammer without footvalve, our newest design. It is also one of the most advanced DTH Hammers in the world.
Features:
1. Out of the trouble of foot valve fracture and expansion and contraction.
2. Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher than the one with foot valve.
3. Simple structure, reliable parts, long life, easy and cheap maintenance.
4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.
Technical Parameters of DHD350 R Hammers:
| Length (exclude bit) | Weight (exclude bit) | External Diameter | Bit Shank | Hole Range | Connection Thread | |
| 1110 mm | 69.00 kg | Φ125 mm | Cop54 DHD350R | Φ135mm ~ Φ155mm | API 2 3/8'' Reg | |
| API 3 1/2'' Reg | ||||||
| Working Pressure | Impact rate at 0.5 MPa | Recommended Rotary Speed | Air Consumption | |||
| 1.0 MPa | 1.8 MPa | 2.4 MPa | ||||
| 1.0 ~ 2.5 MPa | 28 Hz | 20 ~ 35 rpm | 7 m³/min | 14 m³/min | 19 m³/min | |
