Down The Hole Hammer
>
|
| Place of Origin | GERMANY, CHINA |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | Diameter 600 ~ 1500 mm |
Atlas Copco Cluster drill , utility power pole drill Mineral exploration
Atlas Copco Cluster drill Utility power pole drills, Cluster drills for creation of multiple utility pole holes
Utility power pole drills, Cluster drills for creation of multiple utility pole holes
Utility power pole drills, Cluster drills
Utility power pole drill
• Creates electric pole sockets in hard rock much more efficiently than older auguring or blasting methods.
• Allows rapid creation of multiple utility pole holes.
• Industry segments: Construction and Geotechnical (Mineral exploration)

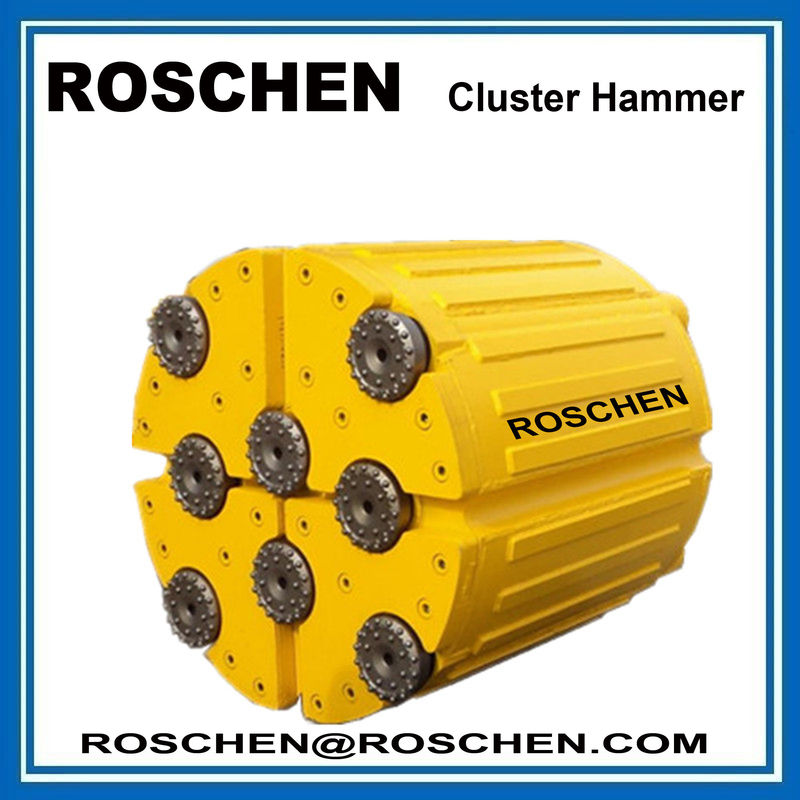

Cluster hammer drill:
• Combines multiple DTH hammers into a single canister.
• Custom engineered drills are manufactured to meet each customer’s unique hole size requirements.
• Capable of drilling 32 to 70 inch diameter holes.
• Short, light weight and compact.
• Features exclusive, patented technology for selfindexing and quick-release bits.
• Industry segment: Construction and Geotechnical (Mineral exploration)
| ROSCHEN RS Series Cluster Hammer | |||
| Model | RS 660 | Diameter (mm) | 660 |
| Height (mm) | 1400 (without pilot bit) | Total height (mm) | 2500 |
| Weight (Kg) | 1100 | Total weight (Kg) | 1800 |
| No. of Sub-hammers | 4 | ||
| Technical Data | |||
| Air pressure | 1.0Mpa | 1.8Mpa | 2.4Mpa |
| Air consumption | 36 m³/min | 72 m³/min | 104 m³/min |
| Remark: Above data for reference only, for more specific information, please contact with our market manager. | |||
| Model | RS 800 | Diameter (mm) | 800 |
| Height (mm) | 1400 (without pilot bit) | Total height (mm) | 2600 |
| Weight (Kg) | 1380 | Total weight (Kg) | 2300 |
| No. of Sub-hammers | 5 | ||
| Technical Data | |||
| Air pressure | 1.0Mpa | 1.8Mpa | 2.4Mpa |
| Air consumption | 45 m³/min | 90 m³/min | 130 m³/min |
| Remark: Above data for reference only, for more specific information, please contact with our market manager. | |||
| Model | RS 1000 | Diameter (mm) | 1000 |
| Height (mm) | 1400 (without pilot bit) | Total height (mm) | 2600 |
| Weight (Kg) | 1900 | Total weight (Kg) | 3000 |
| No. of Sub-hammers | 7 | ||
| Technical Data | |||
| Air pressure | 1.0Mpa | 1.8Mpa | 2.4Mpa |
| Air consumption | 63 m³/min | 126 m³/min | 182 m³/min |
| Remark: Above data for reference only, for more specific information, please contact with our market manager. | |||
| Model | RS 1200 | Diameter (mm) | 1200 |
| Height (mm) | 1400 (without pilot bit) | Total height (mm) | 2600 |
| Weight (Kg) | 2450 | Total weight (Kg) | 3500 |
| No. of Sub-hammers | 8 | ||
| Technical Data | |||
| Air pressure | 1.0Mpa | 1.8Mpa | 2.4Mpa |
| Air consumption | 72 m³/min | 144 m³/min | 208 m³/min |
| Remark: Above data for reference only, for more specific information, please contact with our market manager. | |||
| Model | RS 1300 | Diameter (mm) | 1300 |
| Height (mm) | 1400 (without pilot bit) | Total height (mm) | 2600 |
| Weight (Kg) | 2640 | Total weight (Kg) | 3800 |
| No. of Sub-hammers | 8 | ||
| Technical Data | |||
| Air pressure | 1.0Mpa | 1.8Mpa | 2.4Mpa |
| Air consumption | 72 m³/min | 144 m³/min | 208 m³/min |
| Remark: Above data for reference only, for more specific information, please contact with our market manager. | |||
| Model | RS 1500 | Diameter (mm) | 1500 |
| Height (mm) | 1400 (without pilot bit) | Total height (mm) | 2600 |
| Weight (Kg) | 3390 | Total weight (Kg) | 4900 |
| No. of Sub-hammers | 10 | ||
| Technical Data | |||
| Air pressure | 1.0Mpa | 1.8Mpa | 2.4Mpa |
| Air consumption | 90 m³/min | 180 m³/min | 260 m³/min |
| Remark: Above data for reference only, for more specific information, please contact with our market manager. | |||
RS series Jumbo Cluster Hammer features
1. RS series cluster hammer adopts the typical Bauer square drive, can match with most of the rotary drilling rig prevailing on the market;
2. RS series cluster hammer use specially designed air intake, transmit air through a swivel, thus make the pipeline always rotates under a sealed environment.
3. The pipeline takes strict standard high air pressure hose, and lower cost by selecting most suitable model according to different air consumption.
4. High pressure joints are applied between pipelines, together with anti-trip hinge, which is easy to dissemble and safe to use.
5. RS series cluster hammer has the advantage of reasonable structure, simply while reliable, easy to maintenance, convenient to use on rotary drill rig, and low cost.
6. RS series cluster hammer can be customized according to specific requirements.
◆ RS series Jumbo Cluster Hammer features:
1. RS series cluster hammer adopts the typical Bauer square drive, can match with most of the rotary drilling rig prevailing on the market;
2. RS series cluster hammer use specially designed air intake, transmit air through a swivel, thus make the pipeline always rotates under a sealed environment.
3. The pipeline takes strict standard high air pressure hose, and lower cost by selecting most suitable model according to different air consumption.
4. High pressure joints are applied between pipelines, together with anti-trip hinge, which is easy to dissemble and safe to use.
5. RS series cluster hammer has the advantage of reasonable structure, simply while reliable, easy to maintenance, convenient to use on rotary drill rig, and low cost.
6. RS series cluster hammer can be customized according to specific requirements.
Contact Roschen customer center or distributor for further information.
