Halco DTH Hammers Selection Guide for High Frequency overburden drilling
The Mach 60 is a general purpose hammer suitable for all rock conditions at a wide range of air pressures. The hammer is fitted with a reversible cylinder to prolong service life.
Mach 60 is versatile and reliable, requiring only a few simple tools for servicing and maintenance. Mach 60 is very economical to operate due to its relatively low air consumption and has a unique Mach 60 shank for full bit support. This hammer is most suited for use with the Sim-Cas Overburden system because of the high frequency of the piston/cycle.
Suitable for operation at air pressures of 100 - 435 psi (7 - 30 bar).
Drilling diameters of 152 mm - 216 mm (6 - 9 5/8").
Available Shanks: Halco Mach 60.
MACH RANGE This is a proven hammer that has been around for over 30 years and is designed for all kinds of drilling conditions but excels in overburden drilling due to the high frequency with less blow energy for drilling through unstable ground conditions. This hammer can drill smaller diameters than the standard range. This range of hammer is ideal for civil engineering.
DOMINATOR RANGE The Dominator is a higher performance hammer than the Mach Range ideally suitable for medium to higher air pressures in blast-hole applications. This design is simple with fewer components, which makes servicing and on-site maintenance easy. With a range of heavy duty models on offer this extends the life of the hammer considerably.
SUPER DOMINATOR RANGE The Super Dominator is the latest hammer in the range, specially designed for working at extreme high working pressures up to 500 psi with high penetration rates ideal for blast-hole and waterwell applications. The Super Dominator Range has a simple design with no make-up required. This hammer has an external non-return-valve for easy inspection and service and is available with a 12 spline drive system to reduce shank breakage.
GW RANGE The new GW series of DTH hammers from Halco Rock Tools offer breakthrough performance in challenging Geothermal and Waterwell applications. The robust non ported piston design dramatically improves both the piston and internal component life when drilling under a column of water. A built in choke facility allows the driller to adjust the volume of air through the hammer to optimise cuttings evacuation. GW500 and GW600 hammers are fitted with a reversible cylinder to maximise operating life and are suitable for operation at air pressures up to 30 bar (435 psi).
|Halco DTH Hammer|
|HALCO DOWN THE HOLE HAMMERS SELECTION GUIDE|
|PART NUMBER||HALCO HAMMER||SHANK|
|600422||DOMINATOR 10||HALCO DOMINATOR 1|
|600251(Discontinued)||DOMINATOR 100||HALCO DOMINATOR 100|
|600423||DOMINATOR 20||HALCO - BOX DIN 50MM|
|600169(Discontinued)||MACH 20||HALCO - BOX DIN 50MM|
|600209(Discontinued)||MACH 20||HALCO - BOX DIN 40MM|
|600080||MACH 303||HALCO MACH 303|
|600199||DOMINATOR 350||IR DHD 3.5|
|600393||DOMINATOR 375||MD 3.5|
|600394||DOMINATOR 375||IR DHD 3.5|
|600070||MACH 44||HALCO MACH 44|
|600224||SUPER DOMINATOR 400||HALCO MACH 44|
|600226||SUPER DOMINATOR 400||A34-15|
|600258||SUPER DOMINATOR 400||IR DHD 340A|
|600382||SUPER DOMINATOR 450||HALCO SDOM 450|
|600384||SUPER DOMINATOR 450||IR DHD 340|
|600046||MACH 50||HALCO MACH 50|
|600120||DOMINATOR 500||HALCO MACH 50|
|600267||SUPER DOMINATOR 500||IR DHD 350R|
|600293||SUPER DOMINATOR 550HD||IR DHD 350R|
|600294||SUPER DOMINATOR 550 HD QL 50||IR QL 50|
|600390||GW 500 HD||IR DHD 350|
|600401||GW 500 HD||IR DHD 350|
|600035||MACH 60||HALCO MACH 60|
|600151||DOMINATOR 600||HALCO MACH 60|
|600094||DOMINATOR 600||IR DHD 360|
|600272||SUPER DOMINATOR 600||IR DHD 360|
|600213||SUPER DOMINATOR 650||IR DHD 360|
|600233||SUPER DOMINATOR 650||A53-15|
|600316||SUPER DOMINATOR 650 HD QL 60||IR QL 60|
|600397||GW 600||IR QL 60|
|600398||GW 600||IR QL 60|
|600243||DOMINATOR 750||A63-15 / SD8|
|600310||DOMINATOR 800||HALCO MACH 80|
|600308||DOMINATOR 800||A63-15 / SD8|
|600309||DOMINATOR 800||IR DHD 380|
|600396||DOMINATOR 800 LE||IR QL 80|
|600245||DOMINATOR 850||IR QL 80|
|600311||DOMINATOR 880||A63-15 / SD8|
|600312||DOMINATOR 880||IR DHD 380|
|600261||DOMINATOR 880 DW||IR DHD 380|
|600373||SUPER DOMINATOR 1200||IR QL 120|
|600108||MACH 120||A100-15 / SD12|
|600110||MACH 122||A100-15 / SD12|
|600142||MACH 132||IR DHD 112|
|600143||MACH 142||IR DHD 112S|
|ROSCHEN DTH Hammers Specifications|
|Hammer Size||Bit Shank||ROSCHEN Code||Connection Thread||Suitable bit||Working pressure||Air consumption|
|2"||BR2||ROS 11 ROS 22||RD50 box||￠70-￠90mm||0.7-1.75Mpa||0.7Mpa||4.5m3/min|
|3"||DHD3.5||ROS 32||API 2 3/8" Reg||￠90-￠110mm||1.0-1.5Mpa||1.0Mpa||4.5m3/min|
|4"||DHD340||ROS 34||API 2 3/8" Reg||￠110-￠135mm||1.0-2.5Mpa||1.0Mpa||6m3/min|
|5"||DHD350||ROS 52 ROS 54||API 2 3/8"Reg/API 3 1/2" Reg||￠135-￠155mm||1.0-2.5Mpa||1.0Mpa||9m3/min|
|6"||DHD360||ROS 62 ROS 64||API 3 1/2" Reg||￠155-￠190mm||1.0-2.5Mpa||1.0Mpa||10m3/min|
|8"||DHD380||ROS 82 ROS 84||API 4 1/2" Reg||￠195-￠254mm||1.0-2.5Mpa||1.0Mpa||15m3/min|
|10"||SD10||ROS 100||API 6 5/8" Reg||￠254-￠311mm||1.0-2.5Mpa||1.0Mpa||22m3/min|
|12"||DHD1120||ROS 120||API 6 5/8" Reg||￠305-￠445mm||1.0-2.5Mpa||1.0Mpa||30m3/min|
|Notes: Any special size of DTH bits will be available by requests.|
|Metzke, Remet thread is available!|

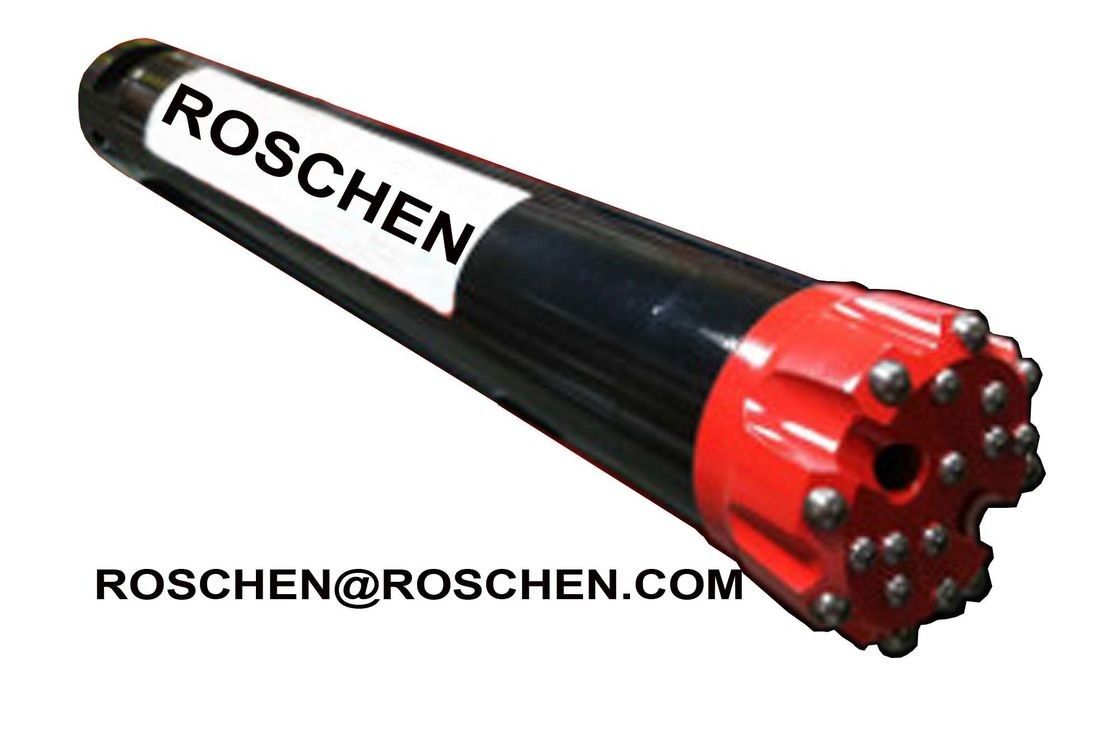

DTH Button Bits Mission 40 140mm Down The Hole In Australia Mining For Well Drilling
DTH Button Bits
Application: Well drilling, Ore ming, Coal mining
Shank of Bit: DHD,COP,Mission,SD,QL,TD,BR
Basic Bit Designs: Convex, Flat front, Speed Bit, Concave, Rocket Bit
DTH BUTTON BITS
HIGH PRESSURE DTH BUTTON BITS
Shank: DHD3.5, DHD340A, DHD350R, DHD360, DHD380, QL40, QL50, QL80, COP44, COP54, COP64, COP84, SD4, SD5, SD6, SD8, Mission 40, Mission50, Mission60, Mission80, Mach 33, Mach 44, BR2, BR3, BR4, Mach 50, SD10, SD12, DHD112, Numa 120, Numa 125.
DIFFERENT FACES STYLES:
Flat face: This is an universal design, especially for hard and abrasive rock formation. So typically, flat face with hemi-spherical buttons design is the most popular choice.
Convex face: A classic design for soft to medium hard rock formation which is not so abrasive. This design have very excellent penetration rate but poor in hole deviation if rocks are hard.
Concave face: Medium hard to hard rock formations which is less abrasive and fractured. Especially for deep hole drilling, excellent control over hole deviation.
DGR face: A special design for hard or very hard rock conditions, double gauge row buttons provide very excellent ware-resistance and very longer life time. It is usually used for some bigger diameter DTH bits. Besides, we are manufacturing the DTH bits with various shanks so they can be compatible with different DTH hammers
RECOMMENDED DTH BITS AND DTH DRILL PIPES:
Bit Size: 3.5"/3", DTH Hammer Bits Shank Types: COP34, DHD3.5, MISSION30 BR3, Recommended Bits: 90mm-105mm
Bit Size: 4" DTH Hammer Bits, Shank Types: DHD340, QL40, MISSION40, SD4, Recommended Bits: 110mm-130mm.
Bit Size: 5" DTH Hammer Bits, Shank Types: DHD350, QL50, MISSION50, SD5, Recommended Bits: 134mm-152mm.
Bit Size: 6" DTH Hammer Bits, Shank Types: DHD360, QL60, MISSION60, SD6, Recommended Bits: 152mm-203mm.
Bit Size: 8" DTH Hammer Bits, Shank Types: DHD380, QL80 MISSION80, SD8, Recommended Bits: 203mm-305mm.
Bit Size: 12" DTH Hammer Bits, Shank Types: DHD112, SD12, QL120, Customer Tailor-made.
DTH Drill Pipes:
Diameter: 60mm, 76mm, 89mm, 102mm, 114mm, 140mm, 146mm, 168mm,
Thread Sizes: 2 3/8" API, 2 7/8" API, 3 1/2" API, 4 1/2" API.
Wall Thickness: 5.5mm, 6.5mm, 8.5mm, 10mm, 11mm, 19mm, etc.
Length: 1000mm- 10670mm
P.S: All DTH drill pipes are friction welded.
The information about dth drill bit you may like to know before order:
1. Methods of Payment:
T/T (Telegraphic Transfer) or Western Union or L/C at sight
2. Handling time for an order
Based on order quantity, normally it takes 20 days for production.
in 3 working days after receiving the advance payment
3. Shipping way
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5. After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
