Reverse Circulation Hammer
>
|
| Place of Origin | Germany |
| Brand Name | ROSCHEN |
| Certification | ISO,CE |
| Model Number | 4.5" |

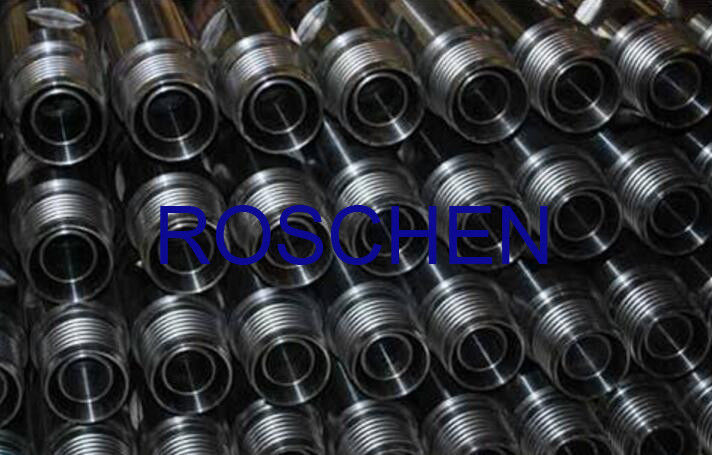

Reverse Circulation Drill Rods 4 inch for Reverse Circulation Drilling
Premium Dual Tube Drill Rods for Reverse Circulation Drilling
RC Drill Rods & Tools
Reverse Circulation Drilling Pipes & Drilling Rods
REVERSE CIRCULATION DRILLING RODS
Our reverse circulation heavy duty drill pipes outclass similar products on the market in both value and quality. Roschen RC drill rods also provide the driller with excellent durability, thanks to the highest quality products which were used during the manufacturing process. Nearly 100% of our sales are direct to drilling contractors, whom openly specify our RC drilling pipes, because they last longer and drill deeper with the same air, offering the most value for the price. Additionally, our drill rods were designed specifically for RC drilling and are available in the reverse circulation drilling string configurations shown below.
Premium Dual Tube Drill Rods for Reverse Circulation Drilling
Available Sizes (outside diameter)
| REVERSE CIRCULATION DRILL ROD SPECIFICATIONS | |||||||
| Thread Type | Remet | Remet | Remet | Metzke | Metzke | Matrix | Matrix |
| Rod O.D. | 3 1/2" | 4" | 4 1/2" | 4" | 4 1/2" | 4" | 4 1/2" |
| Outer Tube O.D. | 88.9mm | 101.7mm | 114.3mm | 101.7mm | 114.3mm | 101.7mm | 114.3mm |
| Outer Tube I.D. | 81.8mm | 94.6mm | 107.2mm | 94.6mm | 107.2mm | 94.6mm | 107.2mm |
| Outer Tube W.T. | 5.3mm | 7.1mm | 7.1mm | 7.1mm | 7.1mm | 7.1mm | 7.1mm |
| Inner Tube O.D. | 38.1mm | 50.8mm | 63.5mm | 50.8mm | 63.5mm | 50.8mm | 63.5mm |
| Inner Tube I.D. | 32.6mm | 45.3mm | 58mm | 45.3mm | 58mm | 45.3mm | 58mm |
| Inner Tube W.T. | 5.5mm | 5.5mm | 5.5mm | 5.5mm | 5.5mm | 5.5mm | 5.5mm |
| Spanner Flat | 90mm | 90mm | 90mm | 90mm | 90mm | 90mm | 90mm |
| Weight 3.0m | 75kg. | 75kg. | 95kg. | 75kg. | 95kg. | 75kg. | 95kg. |
| Weight 6.0m | 120kg. | 150kg. | 168kg. | 150kg. | 168kg. | 150kg. | 168kg. |
Please contact your Roschen representative for additional details, and ordering assistance.
