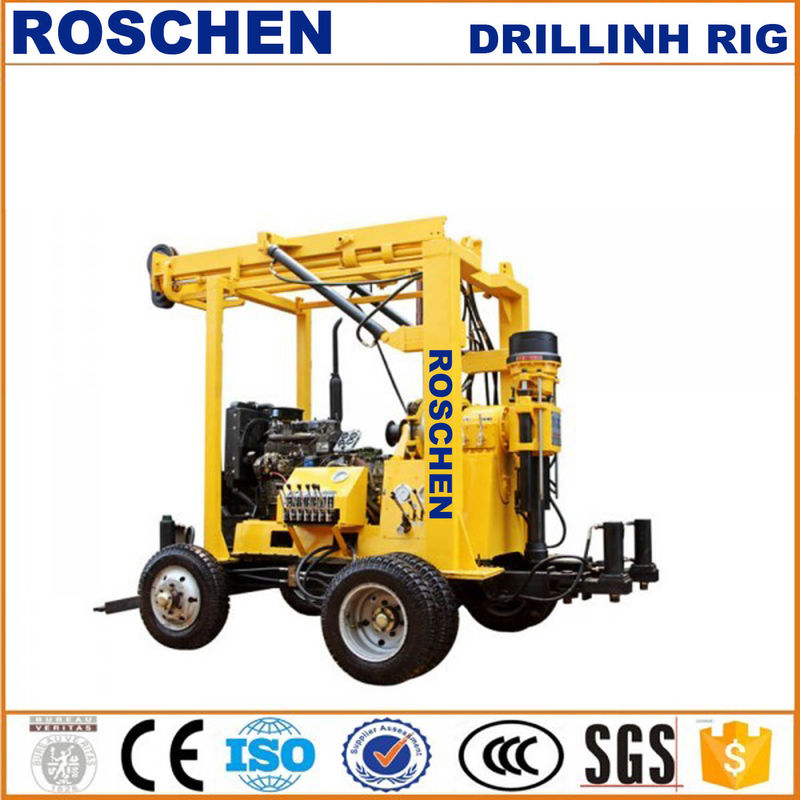

Bore Hole Drilling For 200mm To 300mm Holes Portable Hydraulic Water Well Drilling Rig
1 SET
MOQ
Negotiate
Price
Bore Hole Drilling For 200mm To 300mm Holes Portable Hydraulic Water Well Drilling Rig
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: ISO
Model Number: RS-200
High Light:

300mm Water Well Drilling Rig

,

Hydraulic Water Well Drilling Rig

,

300mm Bore Hole Drilling rig

Payment & Shipping Terms
Packaging Details: Bundle
Supply Ability: 1000 sets
Specifications
Well Driller: Portable Water Well Driller
Sale: Water Well Drilling Rigs For Sale
Drilling: Well Drilling Equipment For Sale
Rigs: Well Drilling Rigs
Item: Well Drilling
Equipment: Deep Rock Drilling Equipment
Drilling Rig: Sun Machinery Drilling Rig
Type: Water Well Drilling Rigs
Type No: Well Drilling Machine
Origin: China Well Drilling Rigs For Sale
Item No: Water Well Drilling Equipment
Product Description

Bore Hole Drilling For 200mm To 300mm Holes Portable Hydraulic Water Well Drilling Rig




Bore Hole Drilling For 200mm To 300mm Holes Portable Hydraulic Water Well Drilling Rig


Bore Hole Drilling For 200mm To 300mm Holes Portable Hydraulic Water Well Drilling Rig

200mm Holes Portable Hydraulic Water Well Drilling Rig

bore well drilling, bore well drilling Manufacturers and Suppliers

Portable Water Well Drilling Rigs

200mm Holes Portable Hydraulic Water Well Drilling Rig

200mm Holes Hydraulic Water Well Drilling Rig Borehole

Water well drilling rigs and equipment, water wells, pile hole, blast hole



200mm Holes Portable Hydraulic Water Well Drilling Rig Borehole Drilling Equipment RS-200



Introduction:



RS-200 trailer mounted water well drilling rig able to handle water well drilling for NGO's and private customers. In most cases where boreholes are drilled in Africa, Australia, it is to install hand pumps or solar pumps with a size smaller than 6". For that reason on mud rotary holes we needed a 8" capacity and on DTH a 6" capacity. This is big enough to install most water pumps. The rig must be able to handle 6" PVC casing installations.


This water drilling rig, uses proven technology like the Deutz F3L912 engine and even after long periods of drilling you can still keep your hand on the hydraulic tank. We have decided to use roquete valves.

This portable water well drilling equipment uses 89mm drill pipes with 2 and 3/8 API Internal Flush threading. That reduces the friction in the case of mud rotary drilling as the internal joint diameter is 44mm. The drill tower is telescopic and uses earthlight blocks to reduce friction and is directly connected on the feed cylinder. The drill head of this water well drilling machines is powered by a white drive product with 2200 Nm torque. So if you want a quality product that can drill up to 200mm holes.

Technical Specifications:

Model RS-200
Geology drilled All kinds
Drill depth 0-200 m
Drilling Diameter 90 - 200mm
Drill system and operation Hydraulic
Rig assembly 1 complete unit, main engine driven
Mobility 2 wheel tandem road trailer
Transportation Towed by pickup or light truck
Foam pump Hydraulic driven, mounted on rig
Weight 2200 kg
ROTARYHEAD&FEED SYSTEM
Top head drive by a hydraulic cylinder through heavy duty chain.
Rotation torque 2300 N-m
Speed 0 - 80 rpm.
Head travel 2.25 meter
Pull-up capacity 50000 Nm
Pull-down capacity 16000 Nm
Pull-up speed-slow feed 1.22 meter/min
Pull-up speed-rapid feed 12.26 meter/min
Pull-down speed-slow feed 0-1.88 meter/min
Pull-down speed-rapid feed 0- 16.90 meter/min
Diesel engine
Brand Deutz
Power 38KW
MODEL F3-912
DRILL PIPE
Drill pipe length 2.00 meter
Drill pipe diameter 60/76/89 mm
Thread 2 3/8 REG API Mod
Power pack speed 3000 rpm.
Load power pack max. 47 hp.
FOAM PUMP
Flow capacity 400 liter/min
Foam Tank 50 liter
Max. working pressure 40 bar
HYDRAULIC SYSTEM
Hydraulic tank capacity 180 liter
STABILIZING JACK
1 front jacks and 2 rear jacks.
Bore 150 mm.
Stroke 520 mm
AIR SYSTEM
Lubricator of venturi-type for down-the-hole drills.
Max. pressure 40 bar
Oil tank capacity 8 liter
DIMENSIONS
Overall length 4540 mm
Overall width 1800 mm
Overall height 2100 mm
