Send Message

Geological Exploration Core Drilling Rig Used For Automatic Trip Hammer

1 set
MOQ
Negotiate
Price
Geological Exploration Core Drilling Rig Used For Automatic Trip Hammer
Features Gallery Product Description Request A Quote
Features
Specifications
Use: Africa Mining
Applications: Copper Mining Drilling
Model No: Mining Exploration Core Drilling
Exploration: Australia Exploration
Mining: Australia Mining
Sale: Core Drilling Rig For Sale
Machine: Concrete Core Drilling Machine
Rig: Diamond Core Rig
Products: Diamond Products Core Rig
High Light:

Geological exploration core drilling rig

,

drilling rig for Automatic Trip Hammer

,

SGS exploration core drilling rig

Basic Infomation
Place of Origin: China
Brand Name: ROSCHEN
Certification: ISO
Model Number: ROS 100
Payment & Shipping Terms
Packaging Details: Wooden box
Supply Ability: 500 sets
Product Description

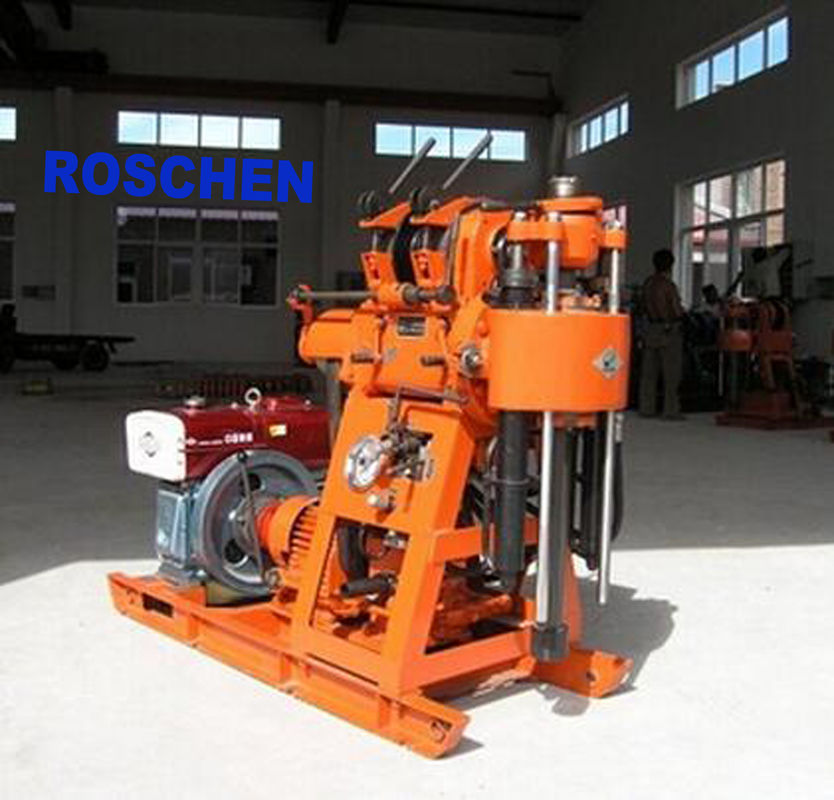

Geological exploration core drilling rig used for Automatic Trip Hammer





Technical parameters of Geological exploration core drilling rig used for Automatic Trip Hammer
Model Number: RS-50-1
Condition: New
Type: Rotary Drilling Rig
Power Type: Diesel
Brand Name: ROSCHEN
Usage: geotechnical ,mining ,waterwell ,borehole
Power(W): 14.7KW
Dimension(L*W*H): 1660*732*1170mm
Weight: 400kg
Certification: ISO9001 SGS CE
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas
Drilling depth: 50m
Drilling diameter: 75-130mm
Spindle Speed: 54 140 300 rpm
Stroke of Spindle: 400mm
Available rods: 42mm AW BW



Twin Cylinder Rotary Borehole Drilling And Cable Percussion Drilling Function RS-50-1

Description:
1. Rotary drilling and cable percussion drilling function.
2. 2-wheels trailer, portable, easy to move by towing the trailer.
3. Small, light, easy to be dismantled and assembled.
4. Hydraulic feeding structure, high drilling efficiency.
5. Geotechnical investigation for engineering constructions, shallow depth mineral exploration and blasting hole drilling.





DRILLING CAPACITY Depth 50m / 42
SWIVEL HEAD
Type Twin cylinder, Oil-hydraulic feed system
Feeding Stroke 400mm
Revolving Speed 54 140 300 rpm
Max. Spindle Torque 350N*m
Max. Thrust Capacity 10 kN
Max. Balance Capacity 30 kN
AVAILABLE RODS 42mm, AW, BW
HOIST DRUM
Type Planetary grear, hand brake type
Hoisting Capacity 10 kN at single pull line
Rope Speed 0.14 0.32 0.46 0.68 1.17 2.53 m/s at single pull time
Drum Capacity Φ9.3mm X 18m
OIL - HYDRAULIC
Type Constant delivery, gear type pump
Delivery Capacity 30L/min @ 1444 r.p.m
POWER Diesel engine CZ195, 8.8KW
NET WEIGHT 400kgs (without power)
DIMENSION(LxWxH) 1660 x732 x1170mm
