Drilling Rig Machine Used Hollow Stem Auger For Soil Sampling And Ground Water Monitoring
1 set
MOQ
Negotiate
Price
Drilling Rig Machine Used Hollow Stem Auger For Soil Sampling And Ground Water Monitoring
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: ROSCHEN
Certification: ISO,CE
Model Number: RS-250
High Light:

42mm geothermal drilling rigs

,

Hollow Stem borehole drilling machine

,

Hollow Stem Auger For Soil Sampling

Payment & Shipping Terms
Packaging Details: Wooden box
Supply Ability: 500
Specifications
Drilling: Hollow Stem Auger Drilling Method
Item: Hollow Stem Auger Drilling Video
Type: Hollow Stem Auger Borehole Diameters
Item No: Hollow Stem Auger Size Chart
Name: Hollow Stem Auger Rig
Soil Sampling: Hollow Stem Auger Soil Sampling
Type No: Hollow Stem Auger Drilling
Well Drilling: Augers For Well Drilling
Sale: Drilling Augers For Sale
Model: Hollow Stem Augers
Product Description

Drilling Rig machine used Hollow Stem Auger for soil sampling and ground water monitoring

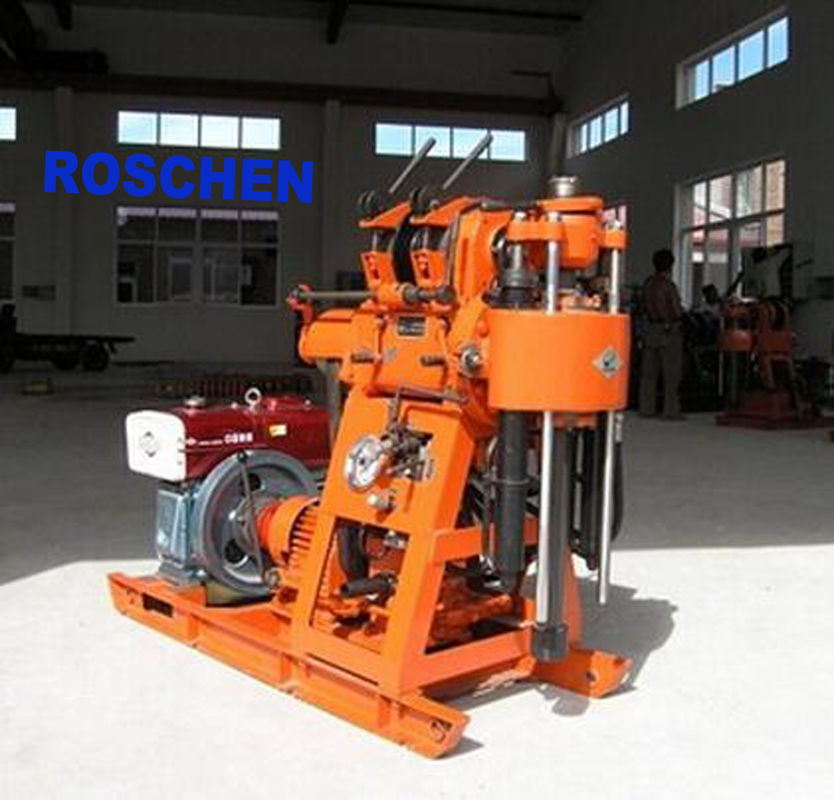

Model: RS-250 Core Drill Rig



Applications:

RS-250 drill rig is a new type of shallow hole core drilling rig with mechanical transmission system and hydraulic pressure feeding system.
It is mainly manufactured for engineering geological exploration, small-scale water well drilling and engineering construction for highway, railroad, hydropower, harbor, etc.
It is also applicable to shallow hole alloy core drilling and diamond core drilling


Features:
1. Diesel engine or electromotor is available to satisfy various engine demands.
2. Higher reliability and intensity as well as stronger capacity compared with similar drill rigs in China.
3. Connecting rod reinforcement spring clamp and hydraulic chuck enjoy novel structure, large clamping force, long service life and reliable performance.
4. Six rotational speeds meet demands of a wide range of applications.
5. Six reverse rotational speeds can realize automatic rod unloading, helping to tackle drilling accidents with lower labor intensity and higher safety.
6. Components of this core drilling rig are almost identical and interchangeable, facilitating replacement and maintenance.
7. Easy to fix the core drill, and stable under high-speed drilling.
8. Light weight and easy to assembly and disassembly. This drill rig can be disassembled into 4 integral parts, allowing convenient transportation and drilling working in mountainous areas and underground tunnels.


Technical Parameters:

Model RS-250 Drilling Rig Machine
Drilling Capability Pipe Dia. Depth (for reference)
Ø42 mm 320 m
Ø50 mm 260 m
Engine Name Diesel engine Electromotor
Model ZS1115M/L24 Y160L-4-B3
Rated Power (kW) 16.2/17 15
Rated Rotational Speed (r/min) 2200 1460
Spindle Rotational Speed (r/min) FWD: 68, 156, 252, 384, 583, 888 REV: 39, 90, 145, 221, 335, 511
Diameter (mm) Ø65 (Ø59 x 53 hexagon)
Max. Torque (N m) 1750
Feed System Type Dual-cylinder feeding
Max. Hoist Force (KN) 60 (rated)
Max. Feed Capacity (KN) 45 (rated)
Feed Distance (mm) 500
Drum Type Planetary type
Single-rope Max. Hoist Capacity (KN) 22
Single-rope Hoist Speed (m/s) 0.606, 2.2, 3.35
Diameter (mm) 160
Rope Dia. (mm) 12
Capacity (m) 30
Hydraulic System Model CBF-F418-ALP
Volume (ml/min) 18
Rated Pressure (MPa) 12
Rated Rotational Speed (r/min) 1500
Oil Cylinder Stroke (mm) 360
Drilling Angle 0 to 360 degree
Dimension (L x W x H) (mm) 1630 x 800 x 1530
Weight (exclude engine) (kgs) 710
