Rotary Drilling Rig For Water Well , Borehole , Core Drilling , Mining

Rotary Drilling Rig For Water Well , Borehole , Core Drilling , Mining
Rotary Drilling Rig For Water Well , Borehole , Core Drilling , Mining Rotary Drilling Rig For Water Well , Borehole , Core Drilling , Mining Rotary Drilling Rig For Water Well , Borehole , Core Drilling , Mining

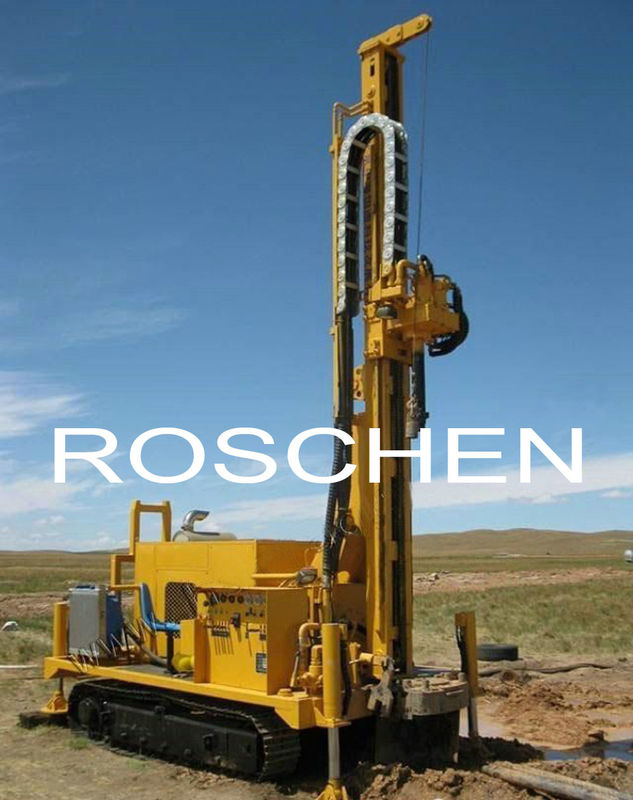

Large Image :  Rotary Drilling Rig For Water Well , Borehole , Core Drilling , Mining

Product Details:

Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: ISO
Model Number: ROS-3 Rotary Drilling Rig

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Bundles
Supply Ability: 10000 sets
Detailed Product Description
Name: Rotary Drilling Rig For Water Well, Borehole, Core Drilling, Mining Model: Drilling Rig
Type: Petroleum Drilling Type Drilling: Water Well Drilling
Mining: Mining Drilling Industry Borehole Drilling: 200m Water Borehole Drilling Rig /Mini Well Drill Price
Drilling Type: Automated Drill Rig Use: Auger Drilling
RAB Drilling: Percussion Rotary Air Blast Drilling (RAB) Air Drilling: Air Core Drilling
Drilling Method: Cable Tool Drilling RC Drilling: Reverse Circulation (RC) Drilling
Wireline Drilling: Diamond Core Drilling Drill Rig: Direct Push Rigs
Hydraulic Drilling: Hydraulic Rotary Drilling Mineral Drilling: Borehole Drilling Equipment, Mining Drilling Rig And Water
China Drill Rig: China Small Borehole Drilling Water Well Drilling Rigs China Drill Rig Supplier: Borehole Drilling Rig Manufacturers
Drilling Machine: Water Well Drilling Rig, Bore Well Drilling Machine Drilling Equipment: Core Drilling Rig,water Well Drilling Rig,drilling Rig
High Light:

rock drilling equipment

,

geothermal drilling rigs

Rotary Drilling Rig for Water Well, Borehole, Core Drilling, Mining




Basic Information
Model ROS-3 Rotary Drilling Rig
Trademark: ROSCHEN
Drilling Depth 400m Depth
Condition: New
Drill Hole Diameter: <100mm
Bit Type: Diamond Bit
Name: Drilling Rig Machine
Supplier: China Rotary Drilling Rig Supplier
Type: Oil Drilling Rig
Equipment: China Drilling Equipment
Manufacturer: China Crawler Drilling Rig Manufacturer
Specification: 1.3
HS Code: 854153210
Certification: CE, ISO 9001:2008
Motor: DC Motor
Drill Hole Depth: >200m
Drilling Way: Rotary
China: China Drilling Rig Machine
Sales: China Land Drilling Rig Sale
Rig Parts: China Drilling Rig Parts
Rock Drilling: China Quality Rock Drilling Tools
Drilling: China Drilling Rig Machine
Transport Package: Wooden Box



We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods, drilling rig, crawler drill rig, hydraulic crawler drill rig located in Germany, China(joint-venture).


We have rich experience in this field of DTH hammers and bits for 60 years. Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as US, Canada, France, Spain, Germany, French, Italy, South Africa, Iran, Malaysia, Australia, etc.


Model: ROS-3 Rotary Drilling Rig for Water Well, Borehole, Core Drilling, Mining



Product Description:


ROS-3 Rotary Drilling Rig is a new type of core drilling rig which is developed especially to meet the need of various drilling process mainly in diamond drilling, the power machine of which can be either motor or diesel engine.


This Rotary Drilling Rig has the following advantages:


1. The drill can meet the various high efficiency drilling process requirements such as the diamond cable, concussion turning, orientation drilling and reverse circulation core-drilling.
2. The wider range of vertical ROS-3 drill speed can be set into many gears and the range of 33-1002r/min can be divided into nine forward gear and two reverse gear to meet the different need of various drilling process.
3. Equipped with the anti-torque gear to hold the spindle without rotation, the drill operation during orientation drilling is very convenient.
4. The monitor and alarm of the parameters such as the torque and related drilling can be realized.



The Rotary Drilling Rig can be run with high reliability:

1. The drill is equipped with the gear-box, clutch and universal drive shaft of the light automobile for high reliability, long fife and convenient replacement.
2. Adopting the connecting rod reinforcement spring cramp, hydraulic loosen chuck which is off normally and carbide inserted pipe slips, the clamping can be with large force, longevity and high reliability.
3. There are oil filters both in the oil absorbing and retuning of the hydraulic system. So the hydraulic oil can be kept clean and the reliability of hydraulic system can be improved.
4. It's equipped with bile bottom pressure gauge to conveniently keep the information of the hole insider.



Technical Parameters of Rotary Drilling Rig
Model No. ROS-3 Rotary Drilling Rig
Engine Description Electrical motor Diesel engine model
Type Y180L-4B35 K4100ZHD
Power (kw) 26 30.1
Speed (r/min) 1480 1500
Chisel in the ability Drilling rod dia(mm) Drilling depth (m) Final hole dia (mm)
Drilling rod of wires to core Φ55.5 600 59
Drilling rod of wires to core Φ71 450 76
Drilling rod of wires to core Φ89 300 95
Ordinary drill rod Φ54 500 59
Ordinary drill rod Φ60 400 76
Double wall drill rod Φ73 280 76
Swivel head Spindle speed (r/min) Clockwise: 33-1002
Contrarotate: 36167
Spindle diameter (mm) 76
circumvolve angle 360
Pull-down system Type Duplex piston
Rising capacity (KN) Rated60,Max75
Pressurizes the ability (KN) Rated:45,Max55
Stroke (mm) 600
Hoist Type Planetary Type
Single-rope lifting-force (KN) Max 30
Single-rope lifting-speed (ms) 0.721.21.822.38
Roll diameter (mm) 220
Steel cable diameter (mm) 14
Hydraulic system Type CBK1016E/10E-B2FL
Displacement (ml/r) 1610
System press (MPa) 8 Max 5
Mobile oil cylinder stroke (mm) 460
Dimensions (L*W*H) (mm) 2490*920*1910
