Mountain Regions drilling rig, Split Mountain Drill rig for Diamond Core Drilling
Portable hydraulic drilling rig for road foundation exploration
Features:
1. Use Honda BP 4-Sroke cycle gasoline engine
2. Easy to assembling and disassembling
3. suitable for drilling with diamond bit, alloy bit
4. Simple drill frame, sway brace, chain feeding
Brief Introduction:

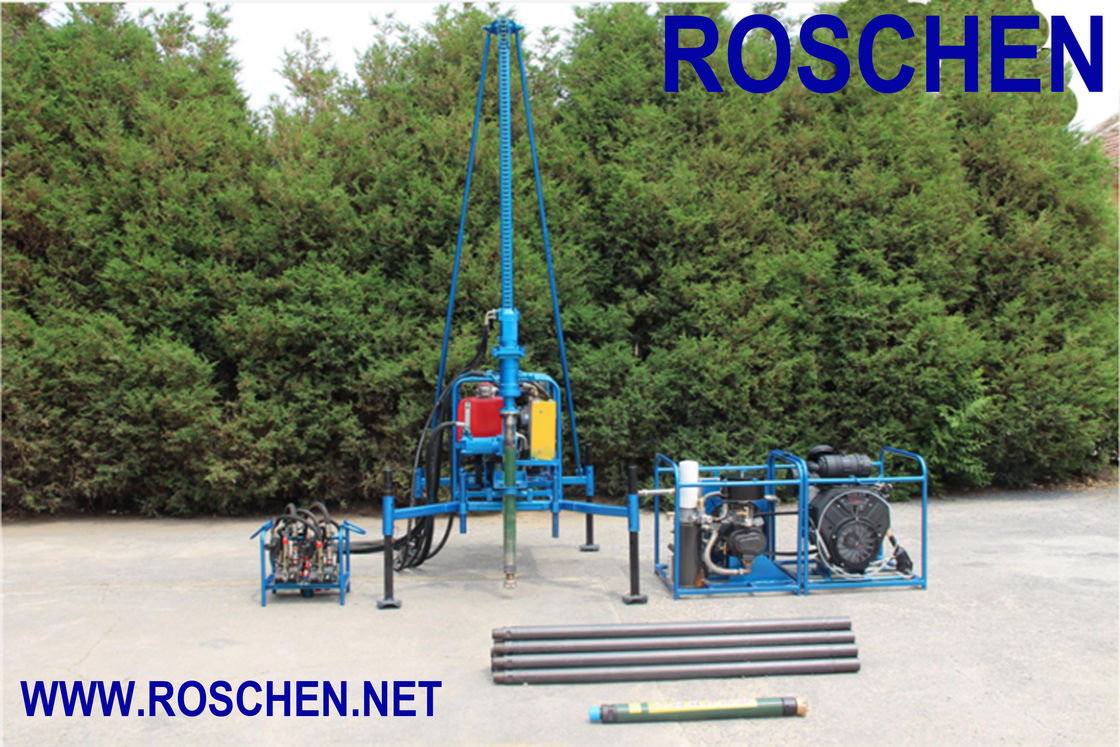

RS-30 series Portable Drilling Rig is well-designed and improved full hydraulic portable drilling rig. It is equipped with gasoline engine as power and the operations such as rotary and cylinder pressure with hydraulic pack, which is quite reliable for operation.
According to geological difference, It can drill with diamond bit, alloy bit, steel bit etc. And it can achieve no-stop reversment, which has high efficiency. The handles collect, which is easy operated. RS-30 is light weight, small size, easy to assembling and disassembling, quite convenient to use in plain and mountainous area.
RS-30 Portable drilling rig is reliable, complete coring and flexible, which is suitable for fieldwork. It is fully achieved the most advanced level of China.
Main application:
Widely used in geological survey sampling and mapping, seis hole construction, geochemical rock sampling, road foundation exploration and geotechnical engineering etc
| Technical parameter | |
| Model | RS-30 series Portable Drilling Rig |
| Drilling type | diamond and alloy rotary |
| Hole diameter(mm) | 46-75 |
| Drilling depth(m) | ≤35M |
| Spindle rotating speed(r/min) | 750-450 (AD-30); 800, 400, 200 (AD-30B 3-gear transmission) |
| Power(HP) | 20 |
| Tower | Single frame with tilt brace,1.65m height |
| Feed stroke | 1.2m |
| Hydraulic drive | 32mpa (600r/min) ; AD-30B 800r/min (3-gear transmission) |
| Gear pump | 20mpa |
| Total weight (kg) | 220 |
| Max. single weight(Kg) | 75 |
