| Place of Origin | CHINA |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | 20 ~ 600mm |

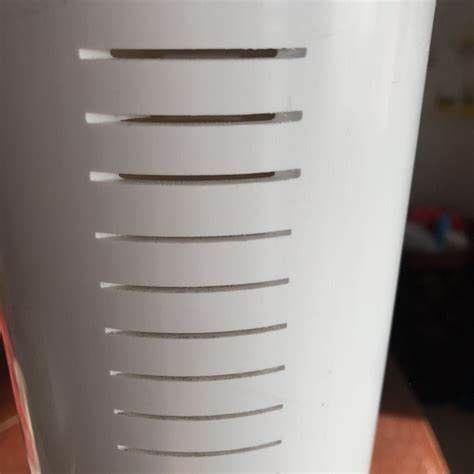

UPVC PVC Plastic Screen Tube for Water Well Casing Pipe and Screen Pipes Tubes for borewell
| UPVC PVC Plastic Screen Tube Basic Info. | |
| After-sales Service | Good Service |
| Warranty | 50 Years |
| Material | PVC |
| Kind | Thermosetting Plastics Pipe |
| Water Absorption | ＜0.01% |
| Contraction Percentage | 1.5%~5.0% |
| Tensile Strength | High Strength |
| Trademark | ROSCHEN |
| Transport Package | as Per Request |
| Specification | 2 inch 4 inch |
| HS Code | 39172300 |
Product Description
Socket End and Flush Thread End PVC screen Pipe tube for Water Well drilling, Screen Pipe Casing and Screen Pipe Tube Blue, White Color for Africa, European, America, Latin America Market water well drilling.
Roschen uPVC Well Casing Pipe and Screen Pipes Tube are an ideal prodcut for protection of domestic, irrigation, industrial & mining bore wells, keeping out the gravel pack and foreign particals providing clean and clear water from the bore wells.
Common Size and working pressure as table below:
| DN(INCH) | OD(MM) | Working Pressure | Wall Thickness | Working Pressure | Wall Thickness | Working Pressure | Wall Thickness |
| mpa | mm | mpa | mm | mpa | mm | ||
| 1/2" | 20 | 2 | 2 | ||||
| 3/4" | 25 | 1.6 | 2 | ||||
| 1" | 32 | 1.25 | 2 | 1.6 | 2.4 | ||
| 1-1/4" | 40 | 1 | 2 | 1.25 | 2.4 | 1.6 | 3 |
| 1-1/2" | 50 | 1 | 2.4 | 1.25 | 3 | 1.6 | 3.7 |
| 2" | 63 | 1 | 3 | 1.25 | 3.8 | 1.6 | 4.7 |
| 3" | 90 | 1 | 4.3 | 1.25 | 5.4 | 1.6 | 6.7 |
| 4" | 110 | 1 | 4.2 | 1.25 | 5.3 | 1.6 | 6.6 |
| 4-1/2" | 125 | 1 | 4.8 | 1.25 | 6 | 1.6 | 7.4 |
| 5" | 140 | 1 | 5.4 | 1.25 | 6.7 | 1.6 | 8.3 |
| 6" | 160 | 1 | 6.2 | 1.25 | 7.7 | 1.6 | 9.5 |
| 7" | 180 | 1 | 6.9 | 1.25 | 8.6 | 1.6 | 10.7 |
| 8" | 200 | 1 | 7.7 | 1.25 | 9.6 | 1.6 | 11.9 |
| 9" | 225 | 1 | 8.6 | 1.25 | 10.8 | 1.6 | 13.4 |
| 10" | 250 | 1 | 9.6 | 1.25 | 11.9 | 1.6 | 14.8 |
| 12" | 280 | 1 | 10.7 | 1.25 | 13.4 | 1.6 | 16.6 |
| 13" | 315 | 1 | 12.1 | 1.25 | 15 | 1.6 | 18.7 |
| Physical and mechanicla properties of pvc pipe for well | ||
| Item | Indicators | Unit |
| Density | 1350~1460 | kg/m3 |
| Vicat softening temperature | ≥80 | ºC |
| Longitudinal retraction rate | ≤5 | % |
| Ring stiffness | SN≥12.5 | kN/ m2 |
| Tensile yield stress | ≥40 | Mpa |
| Drop hammer impact strength | ≤5 | (0ºC)TIR/% |
