| Place of Origin | CHINA |
| Brand Name | ROSCHEN |
| Certification | ISO |
| Model Number | NW HW PW SW UW ZW |

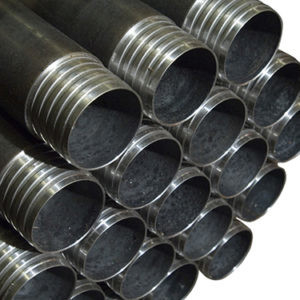

Casing Pipe NW HW PW SW UW ZW Pipe Casing for water well drilling
Casing Pipe
Introduction of Casing Pipe
Casing pipe
Drilling the casing pipe inside the borehole while drilling a well can stabilize the borehole and protect underground rock formation. As an important part for borehole safety, the casing pipe features the following functions:
1.Avoiding collapse of wall well, isolating different stratum to prevent liquid convection, thus liquid and pressure of the stratum can be controlled in the well drilling process.
2.The Casing pipe can assist the surface well control equipment and downhole drilling rigs to achieve control and communications functions.
3.We are able to customize casing pipes with diversified sizes to meet different borehole diameters.
Features of Casing Pipe:
. Use optimized buttress thread so that the connecting strength can reach the strength of the pipe body.
. High seal reliability: this product has the multi-seal configuration.
. The joint tool has high capability to resist compression, bending and over-torque load with the reverse torque internal shoulder.
. Energy loss reduction: the air and liquid turbulence are reduced by the inner flat design.
Casing pipes Technical Specifications
(available: AW, BW, NW, HW, PW, SW, UW, ZW, HWT, PWT, SWT, UWT, ZWT)
| Size | Tube O.D.A (mm) | Tube I.D. B(mm) | Threads per inch (T.P.I.) |
| SW | 168.5 | 154 | 5 |
| PW | 140 | 125 | 5 |
| HW | 114.3 | 101.6 | 5 |
| NW | 89 | 76.4 | 8 |
| BW | 73.1 | 60.4 | 8 |
| AW | 57.3 | 48.5 | 8 |
Shipments:
FAQ
Q: Are you a manufacturer or trading company ?
A: We are a specialized manufacturer.
Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.
Q: How about the delivery terms?
A: 1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.
Q: How about discount?
A: Price is based on products and order quantity.
Q: Do you accept sample order?
A: Yes sure, please contact us for details.
Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.
Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, ROSCHEN always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.
