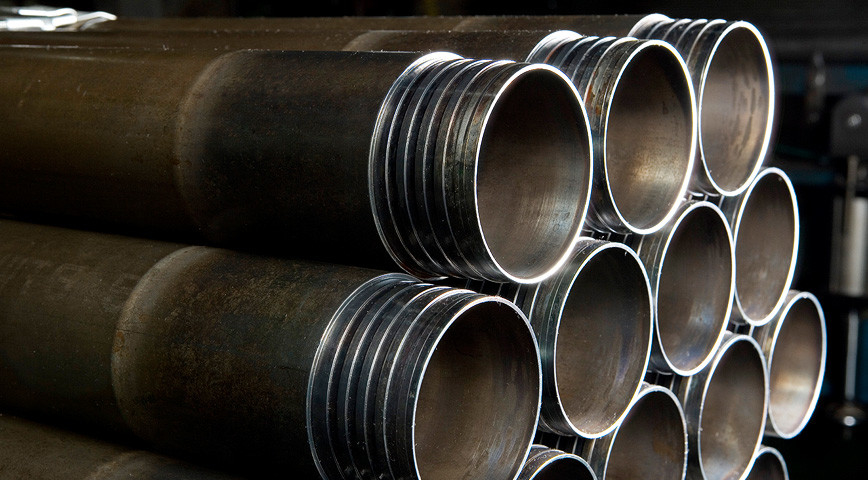

PW Casing Pipes Metric For Wireline Core Drilling
PW Casing Pipes Metric For Wireline Core Drilling
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: ROSCHEN
Certification: ISO
Model Number: BW NW HW PW
High Light:

PW Casing Pipes


Metric Casing Pipes


Wireline Core Drilling Casing Pipes

Payment & Shipping Terms
Packaging Details: STEEL BUNDLE
Supply Ability: 1000000000 PCS
Product Description

BW NW HW PW casing pipes for wireline core drilling



Roschen manufactures Metric Casing and Flush-Jointed Casing and Flush-Coupled Casing.


A casing pipe is a hollow steel tube that is typically rammed into place through the earth by using a hydraulic or pneumatic jack. After being driven, the displaced soil is removed and the product pipe, or carrier pipe, is inserted inside the steel tube.


Casing pipe is a type of steel pipe that is typically used to enclose and surround a carrier pipe, which is installed through the center of this pipe. Steel casing pipe is most often used in underground construction projects to encase or protect utility lines from being damaged. This pipe can be used when boring horizontally or directionally under roads, rivers, lakes, or railroads. In general, steel casing pipe is extremely durable and versatile, and therefore, it can be used in a variety of construction projects as well. Casing Pipe is available in a complete variety of different sizes and diameters as well as in straight seam, spiral-weld, and rolled and welded types of manufacture.


Metric Series Casing Pipe
Size O.D.(mm) I.D.(mm)
46 44.15 37.15
56 54.15 47.15
66 64.25 57.25
76 74.25 67.25
86 84.25 77.25
101 98.00 88.30
116 113.00 103.30
131 128.00 118.30
146 143.00 133.30


Flush Jointed W Series Casing pipe
Size Outer Diameter (O.D.) Internal Diameter (I.D.)
inch mm inch mm
BW 2.874 73 2.374 60.3
NW 3.5 88.9 3 76.2
HW 4.5 114.3 4 101.5
PW 5.5 139.7 5 127.0
Flush Coupled X Series Casing pipe
Size Outer Diameter (O.D.) Internal Diameter (I.D.)
inch mm inch mm
NX 3.5 88.9 3 80.5
HX 4.5 114.3 3.937 104.4
PX 5.5 139.7 4.867 127
Flush Jointed Water Well Series Casing pipe(B.S.879)
Size Outer Diameter (O.D.) Internal Diameter (I.D.)
inch mm inch mm
4" 4 1/2" 114.3 3 7/8" 98.3
5" 5 1/2" 139.7 4 7/8" 123.7
6" 6 5/8" 168.3 5 7/8" 149.3
8" 8 5/8" 219 7 7/8" 174.7

PW Casing Pipes Metric For Wireline Core Drilling 0


Q: Are you a manufacturer or trading company ?
A: We are a specialized manufacturer.

Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.

Q: How about the delivery terms?
A: 1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.

Q: How about discount?
A: Price is based on products and order quantity.

Q: Do you accept sample order?
A: Yes sure, please contact us for details.

Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.

Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, ROSCHEN always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.
